Max Flow 13.2m3/hr Type P

CALL US: +44(0)1473 462046
Part Number
F14-4-1p
Brand
Subline
Pump Size
4" Pump
Series Max Flow
13.2m3/hr
Series Max Head
211m
+



4" Borehole Submersible Pumps
Stainless Steel with Technopolymer Internals
Standard supply Sumoto Motor  - Franklin Motor Optional
Max Flow 13.2m3/hr    Max Head 211m

Information

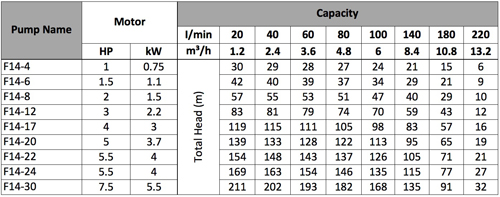

Performance Table

Description
Submersible multistage centrifugal pumps for 4” wells, particularly suitable for water rising and distribution installations requiring very high pressures and flow rates.

Applications
Water plants and systems for residential and industrial use, for continuous or intermittent duty operation. Pressurizing system. Irrigation plants.

Design features
Motor coupling flange and discharge head are made in stainless steel (AISI 304).
Built in non-return check valve for all pump types which is easily removable.
Impellers and diffusers in non toxic polycarbonate (Lexan), diffusers body in stainless steel (AISI 304) for type 6 - 10 - 14 - 24.
Shell, pump shaft, coupling, cable shield, suction screen and all screws are in stainless steel.
Pump flanges for coupling with motors are made according to NEMA standards.
Max ø pump 96 mm.

Technical

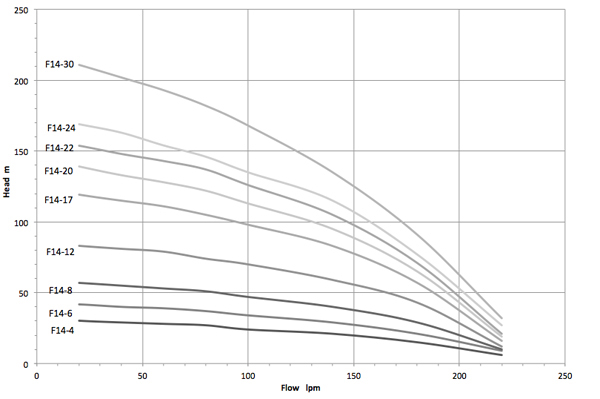

Performance Curves

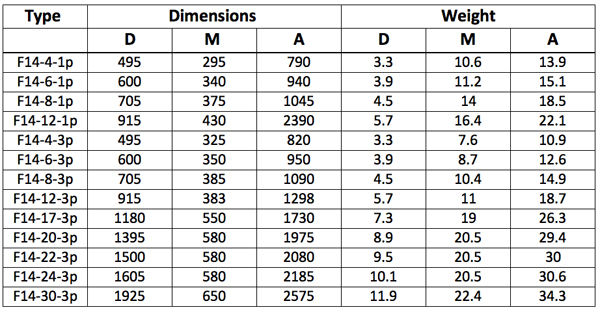

Dimensions and Weights

Ø = 2"
