Max Flow 12m3/hr F Type

LEGACY
PRODUCT
Max Flow 12m3/hr F Type
  Zoom
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+


Part Number:  FP4H015
Brand:  Felsom
Pump Size:  4" Pump
Series Max Flow:  12m3/hr
Series Max Head:  257m


  4" Floating Impeller Submersible Borehole Pump
Max flow 12.0m3/hr    Max head 257 m


Discontinued product

Alternative pump;

VSF Franklin Electric Submersible Pump

Please contact us if you would like to discuss our alternative products.

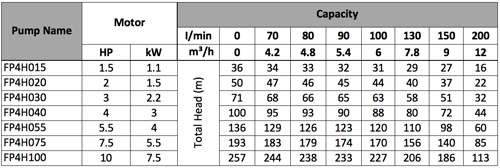

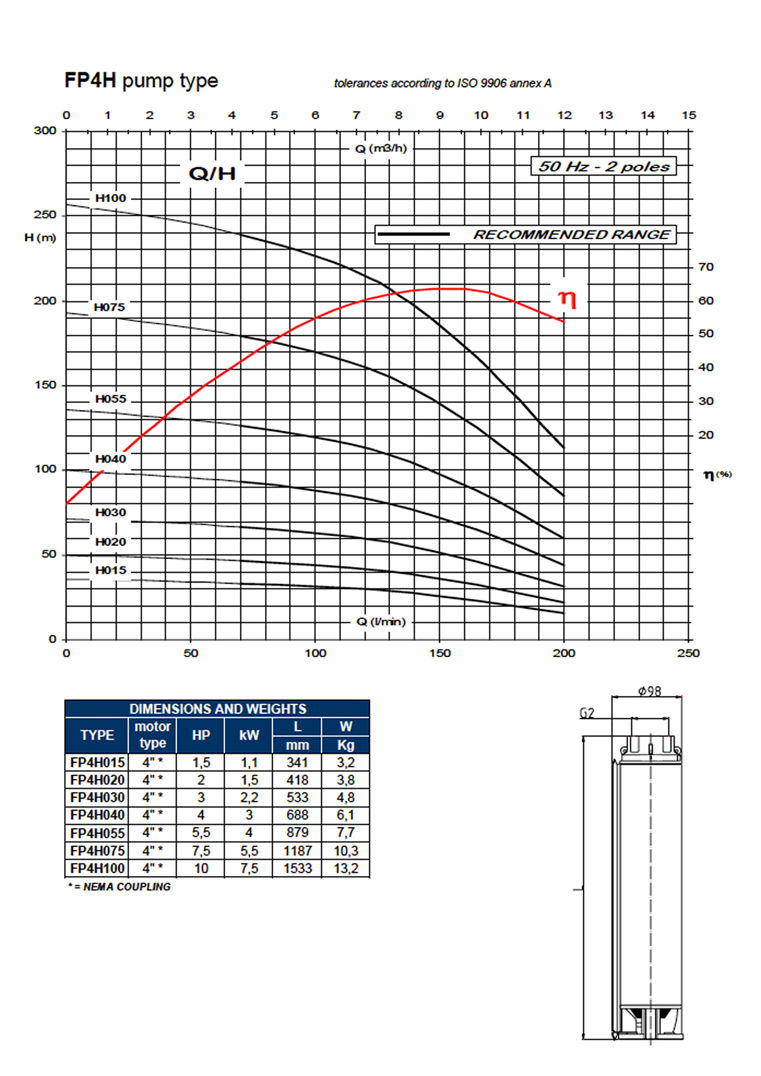

Performance Table

Applications
Domestic and Industrial water supply, Fire-fighting systems, Pressurising water systems, Irrigation, Process Plants

Materials
AISI 304 stainless steel for top outlet and bottom support, external jacket, diffuser casing, screen and cable guard
AISI 420 stainless steel for shaft
AISI 316L/304 stainless steel for coupling
Impellers, diffusers and bushes are fibre glass reinforced PA66 .

Operating data
Max. water temperature 35'C
Max. sand content: 185g/m3
Max startings per hour: 15
Min. recommended head of water above pump suction: 1m

Quote Required?
Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
