QA60 Control Panel

QA60 Control Panel
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
Smart Evo 1 Electronic Control PanelSmart Evo 1 Electronic Control Panel

Part Number:  QA/61C
Brand:  Maniero


Legacy product

Alternative panels;

Smart EVO 1

Please contact us if you would like to discuss our alternative products.

QA60 (QA60C) Three phase electronic control panel for one electric pump (or motor), with direct start.

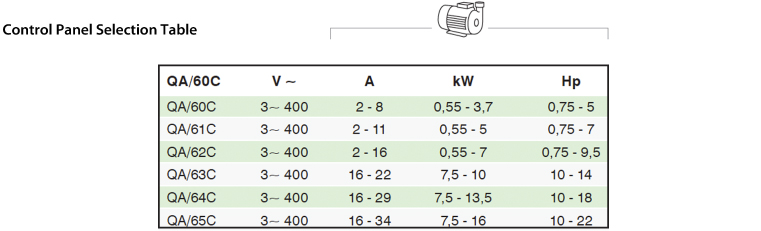

QA60 control panel Table 1


QA/60C Electronic control panel with probe inputs, equipped with adjustable electronic protection against motor overload.

It is suitable for surface pumps, submerged pumps and motors in general, with power range between 0,55 kW and 16 kW (please download the data sheet to learn more about all the available sizes and features). It can be used for emptying (drainage), filling or pressurization.

Electric control panel with thermoplastic case and IP50 protection degree, extendable to IP55.

Inputs and outputs

  • Inputs for N. 3 probes, or N. 1 float or pressure switch enabling stop level (minimum or maximum);
  • N. 1 input for float or pressure switch;


  • Command with selector and LEDs;
  • Emptying or filling mode switch;
  • Probes sensitivity adjustable by internal selector and potentiometer;
  • Main disconnecting switch with door lock;


  • Adjustable electronic protection against motor overload on 2 phases;
  • Auxiliary circuit and motor protection fuses;
  • Contactor command circuit voltage as power supply;
  • Very low voltage inputs;

Optional features

MIC24 – Interface module control for 24Vac command input;
IP55 – IP55 protection degree;

QA60, QA60C, QA/60C

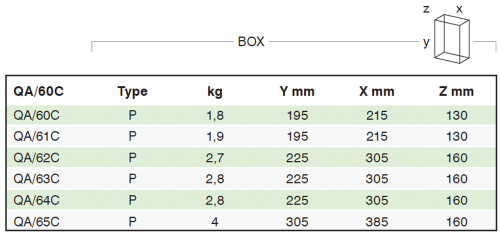

Dimensions & Weights

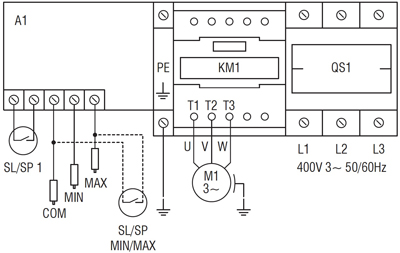

Circuit Diagrams


Electrical Data

Quote Required?
Please state part number and specifications where applicable.
