QMDE Control Panel - 230v
  Zoom
This item is unavailable for purchase

Smart Evo 1 Electronic Control PanelSmart Evo 1 Electronic Control Panel

Part Number:  QMDE10/2A-T
Brand:  Maniero



Discontinued product

Alternative panels;

Smart EVO 1

Please contact us if you would like to discuss our alternative products.

QMDE single phase electromechanical control panel for one or two electric pump (or motors), with direct on line start.

Entry level electro-mechanical panel with float inputs or with an optional level control relay probes.
QMDE10 - Reference for ONE Pump Panel
QMDE20 - Reference for TWO Pump Panel

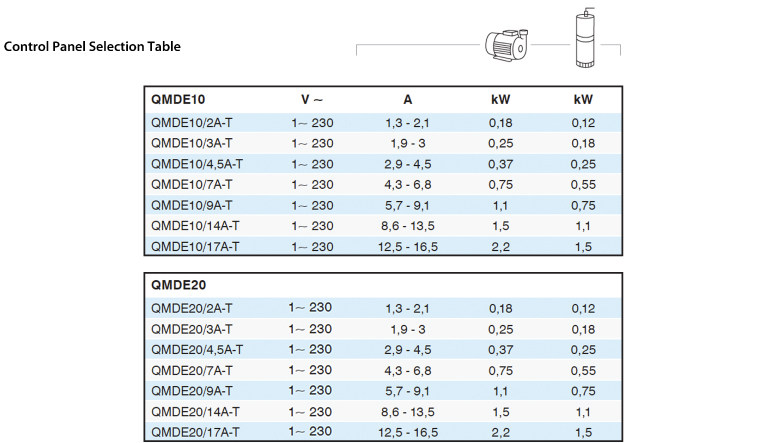

QMDE Table 1 with



Electromechanical control panel with thermal protection against motor overload, contactor for motor start and selectable self hold (excludable by selector).

It is suitable for surface pumps, submerged pumps (without probes) and motors in general, with power range between 0,12 kW and 2,2 kW (please download the data sheet to learn more about all the available sizes and features). It can be used for emptying (drainage), filling or pressurization.

Electric control panel with thermoplastic case and IP55 protection degree.

Inputs and outputs

  • N. 2 (QMDE10) or 3 (QMDE20) inputs for floats or pressure switches;

Functions

  • Command with selector and LEDs ø 22mm;
  •  Main disconnecting switch with door lock;

Protections

  • Thermal relay protection against motor overload;
  •  Auxiliary circuit and motor protection fuses;
  •  24Vac auxiliary contacts from safety transformer;
  •  Very low voltage inputs;

KCC – Running capacitor predisposition 12,5/16/20/25/30/35/40/45/50/60/70/75/80 μF;

QMDE10 optional features

MCL – Electronic module for level control with 3 probes (probes not included); KCD85 – Starting capacitor with circuit breaker;

QMDE20 optional features

SCB – Pumps start exchanger

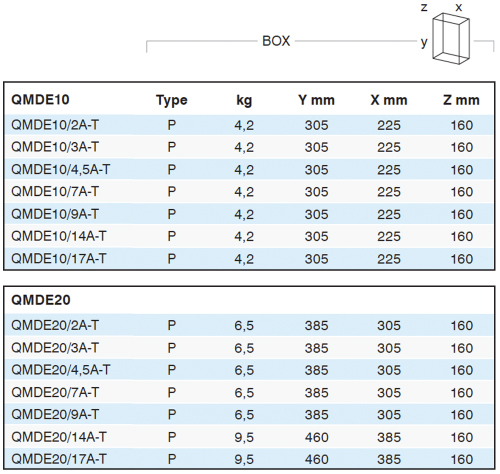

Dimensions & Weights

Dimensions & Weights

Circuit Diagrams

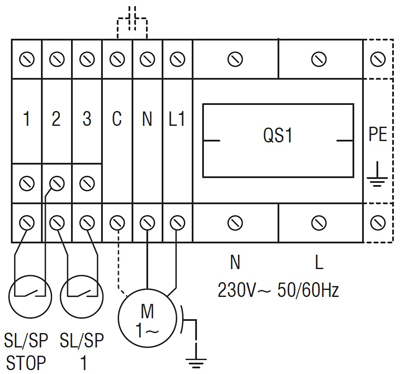

QMDE10

QMDE10 Circuit Diagrams

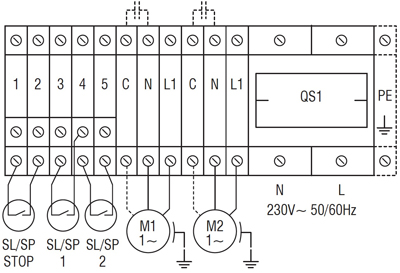

QMDE20

QMDE20 Circuit Diagrams

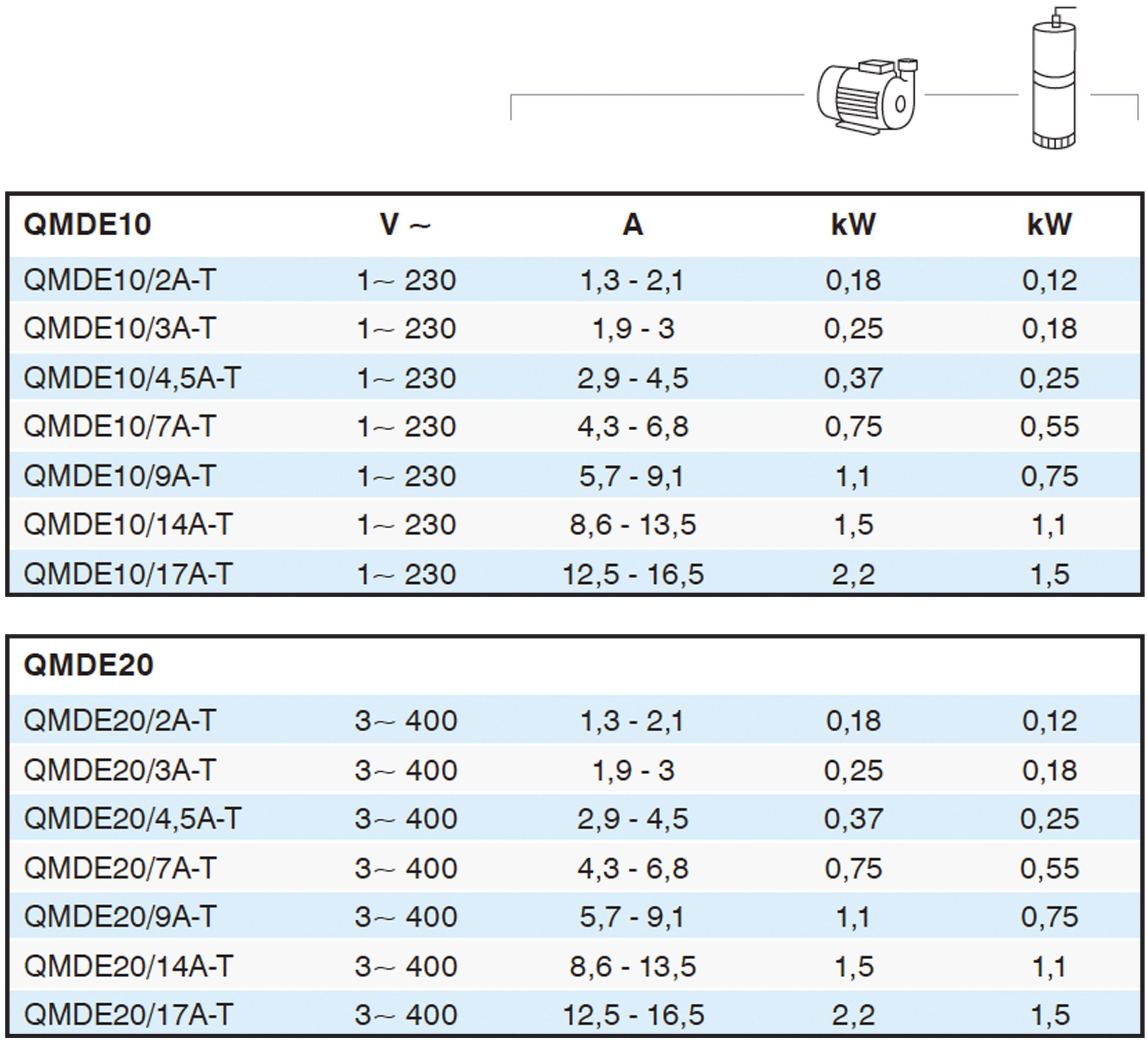

Electrical Data

Electrical Data
