QTDE-AR Control Panel - 400v

DISCONTINUED
QTDE-AR Control Panel - 400v
  Zoom
This item is unavailable for purchase

Smart Evo 1 Electronic Control PanelSmart Evo 1 Electronic Control Panel

Part Number:  QTDE10/1A-T-AR
Brand:  Maniero



Discontinued product

Alternative panels;

Smart EVO 1

Please contact us if you would like to discuss our alternative products.

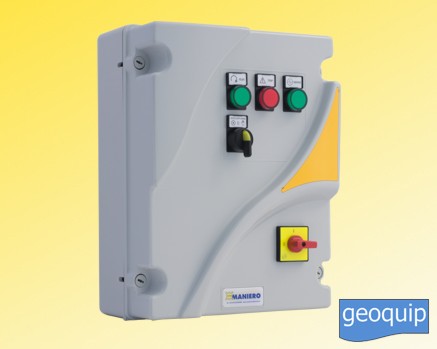

QTDE-AR three phase electromechanical control panel for one up to three electric pumps (or motors), with direct start.

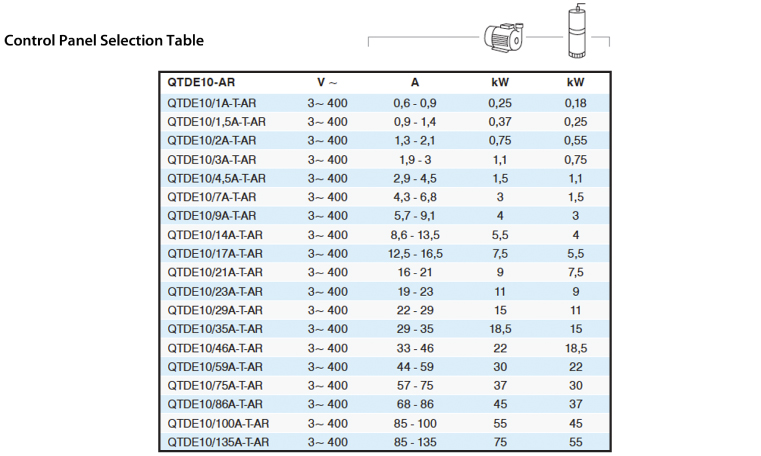

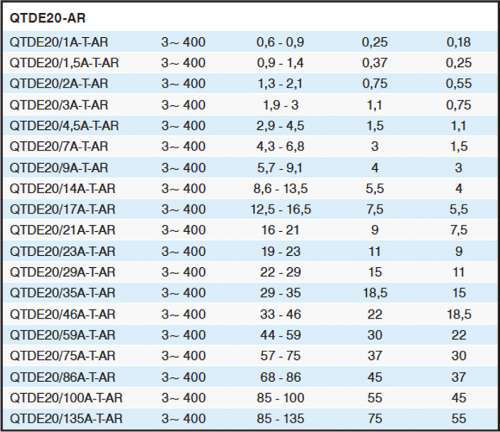

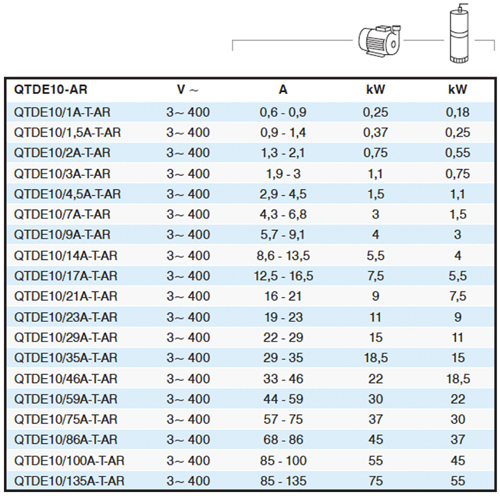

Control panel selection table

Control panel selection table

Control panel selection table

Electromechanical control panel with thermal protection against motor overload, contactor for motor start and selectable self hold (excludable by selector).

It is suitable for surface pumps, submerged pumps (without probes) and motors in general, with power range between 0,12 kW and 75 kW (please download the data sheet to learn more about all the available sizes and features). It can be used for wastewater drainage.

Electric control panel with thermoplastic or metallic case (according to the model size) and IP55 protection degree.

Inputs and outputs

  • N. 3 (QTDE10-AR) or 4 (QTDE20-AR) or 5 (QTDE30-AR) inputs for floats;
  • N. 1 (QTDE10-AR) or 2 (QTDE20-AR) or 3 (QTDE30-AR) probes inputs for motor temperature (N.C.);
  • 24Vac (0,2A 5VA) alarm output;

Functions

  • Motorpumps start exchanger;
  • Command with selector and LEDs ø 22mm;
  • Main disconnecting switch with door lock;

Protections

  • Thermal relay protection against motor overload;
  • Protection with motor overtemperature probe;
  • Auxiliary circuit and motor protection fuses;
  • 24Vac auxiliary contacts from safety transformer;
  • Very low voltage inputs;

Optionalal features

DS - Probe device for the control of water infiltration in the motor oil chamber;

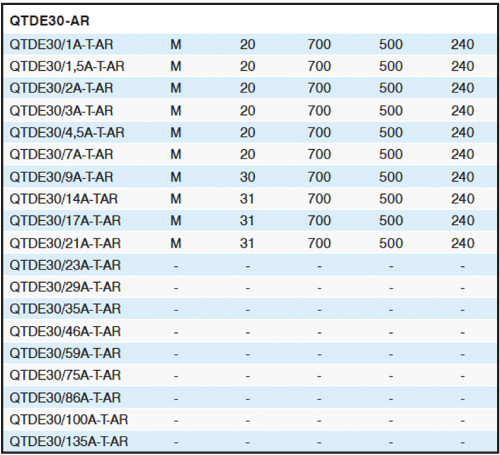

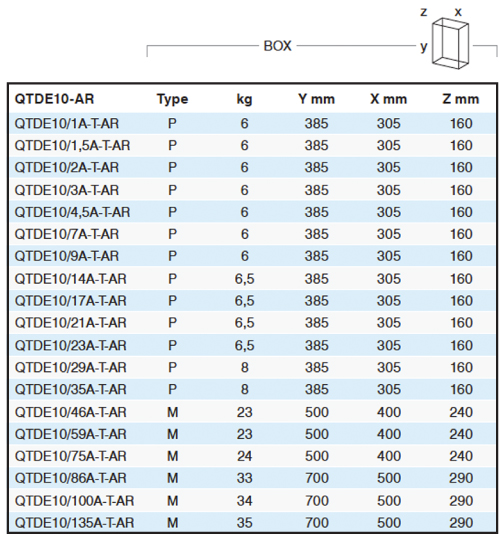

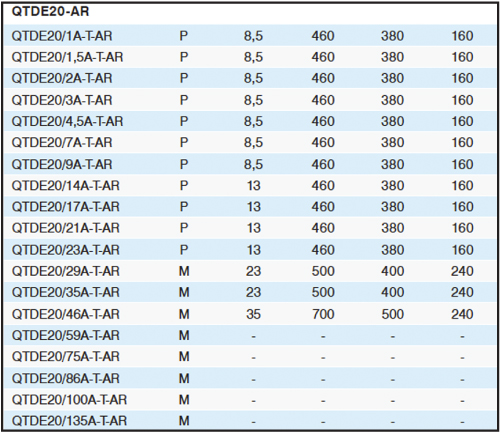

Dimensions & Weights

Dimensions & Weights

 Dimensions & Weights

 Dimensions & Weights

Circuit Diagrams

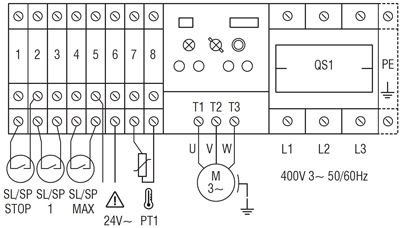

QTDE10-AR

Circuit Diagrams

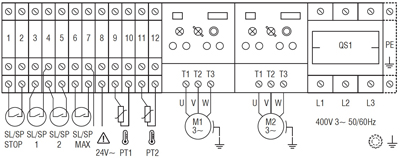

QTDE20-AR

Circuit Diagrams

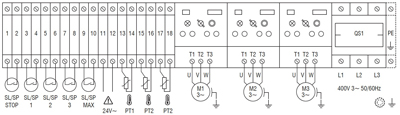

QTDE30-AR

Circuit Diagrams

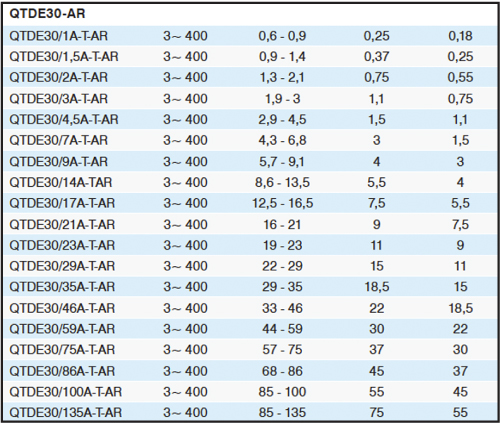

Electrical Data

Electrical Data

Electrical Data

Electrical Data


Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *

You will receive emails on our latest news, products and services, please see our privacy policy for more information.
 *
Please add the two numbers

Related Products

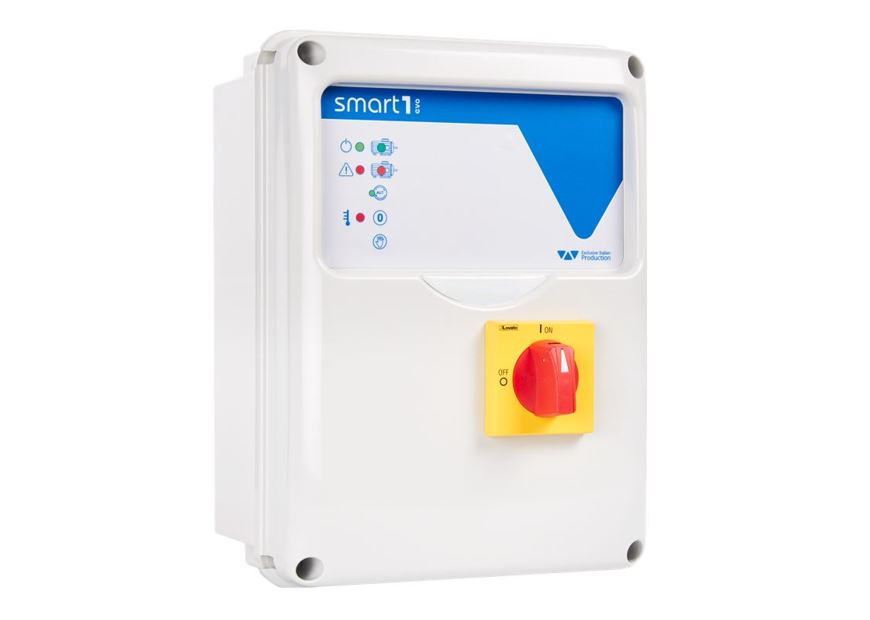

Smart Evo 1 Electronic Control Panel
