Part Number:  QTIF10/3.3A-A
Brand:  Maniero



Discontinued product

Alternative panels;

Vartek 1 Electronic Control Panel
Minivar Electronic Control Panel

Please contact us if you would like to discuss our alternative products.

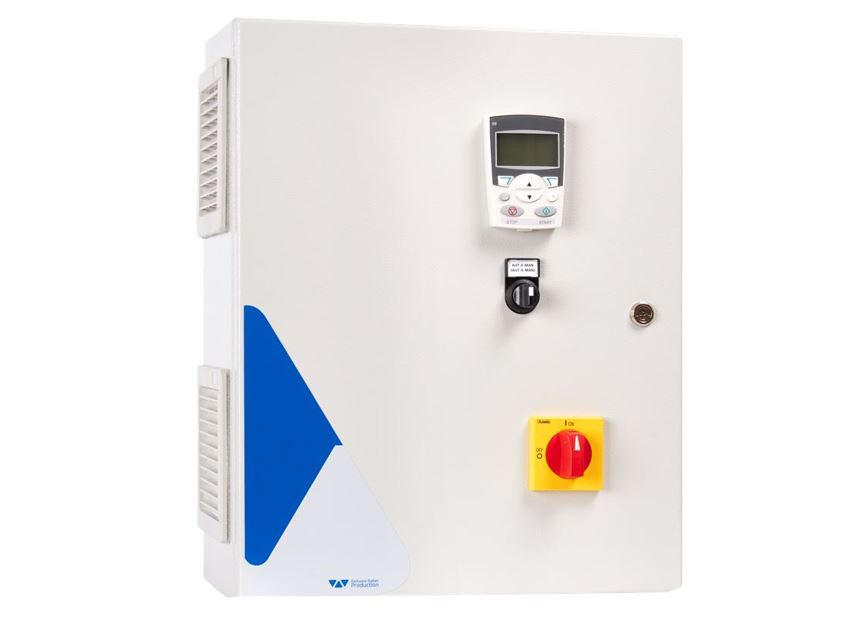

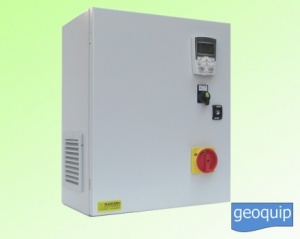

QTIF Three phase control panel for one electric pump (or motor), with frequency inverter.

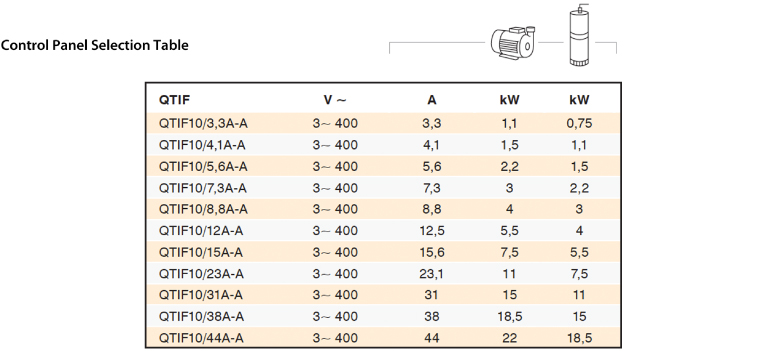

Control Panel Selection Table

Electronic control panel equipped with relay alarm output.

It is suitable for surface pumps, submersible pumps (without probes) and motors in general, with power range between 0,75 kW and 22 kW (please download the data sheet to learn more about all the available sizes and features). It can be used for pressurization, it has been conceived to keep costant pressure in water systems.

Electronic control panel with metallic case and IP54 protection degree.

Inputs and outputs

  • Input for analog transmitter 4-20mA 2 or 3 wires for water system pressure detection;
  • N. 3 general start up and command inputs for floats or pressure switches;
  • Relay alarm output with changeover contact N.O. / N.C. (250V~ 5A max, resistive load);
  • Modbus-RTU RS-485 communication;

Functions

  • Command with selector, control panel with LCD display;
  • ‘Constant pressure mode at variable speed’:

- pressure detection through analog transmitter;
- pressure adjustment through the inverter PID controller according to the set value;
- control of the pump through inverter at variable speed;
- stop for ‘null flow’ (flow absence) and automatic restart once the pressure decreases;

  • Stop and run for the intervention of floats or pressure switches connected with the command and start up inputs;
  • Operation in MANUAL mode at fixed preset speed;
  • Main disconnecting switch with door lock;

Protections

  • Electronic protection for motor overload or phase absence;
  • Electronic protection for motor overtemperature without PTC motor sensor aid;
  • Protection for analog transmitter lack or fault;
  • Inverter supply and auxiliary circuit protection fuses;
  • 24Vdc auxiliary circuit;
  • Forced ventilation (according to the model);
  • Very low voltage inputs;
  • RFI noise filter for EMC civil environment use (power supply connected with the public network);
  • Maximum motor cable length: 30m with shielded cable, 40m with unshielded cable;

Additional equipment required

Pressure analog transmitter 2 wires 4…20mA:
- SPE3/10B-G¼M-5m code 850.965 (10bar)
- SPE3/25B-G¼M-5m code 850.966 (25bar)

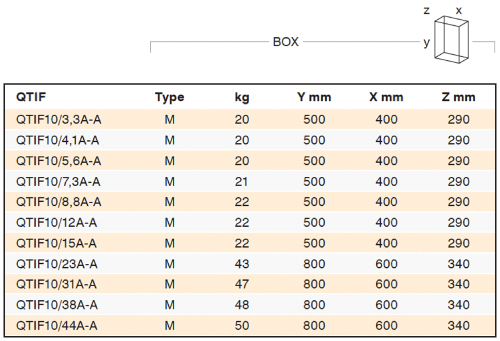

Dimensions & Weights

Dimensions & Weights

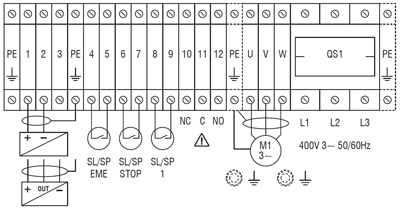

Circuit Diagrams

Circuit Diagrams

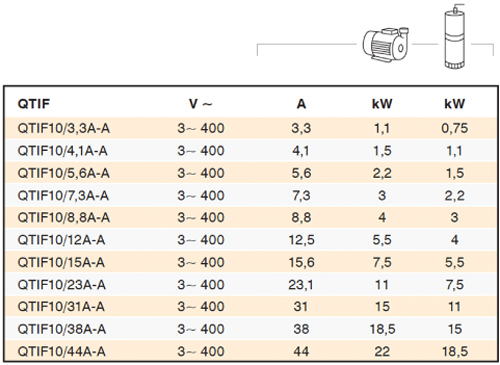

Electrical Data

Electrical Data




Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
