QTSS Control Panel - 400v

DISCONTINUED
QTSS Control Panel - 400v
  Zoom
This item is unavailable for purchase

Static Plus 1 Electronic Control PanelStatic Plus 1 Electronic Control Panel

Part Number:  QTSS10/17A-T
Brand:  Maniero



Discontinued product

Alternative panels;

Static Plus 1 Soft Start

Please contact us if you would like to discuss our alternative products.

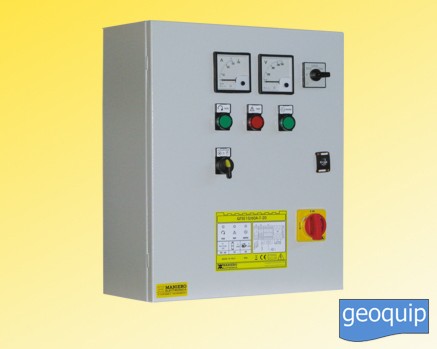

QTSS three phase electromechanical control panel for one electric pump (or motor), with soft start

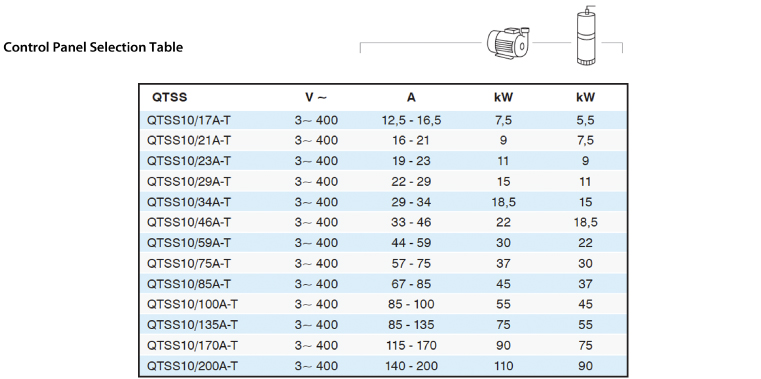

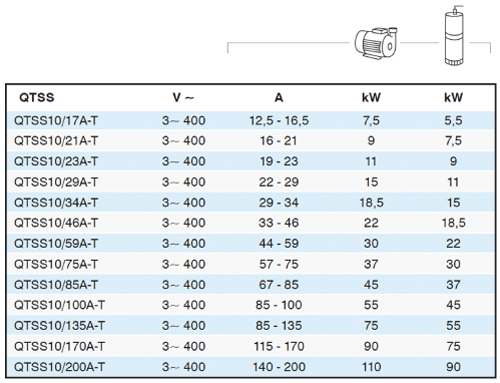

Control Panel Selection Table

Electromechanical control panel equipped with thermal protection against motor overload, contactor and soft-starter for motor start, bypass contactor and selectable self hold.

It is suitable for surface pumps, submerged pumps (without probes) and motors in general, with power range between 5,5 kW and 110 kW (please download the data sheet to learn more about all the available sizes and features). It can be used for emptying (drainage), filling or pressurization.

Electric control panel with metallic case and IP55 protection degree.

Inputs and outputs

  • N. 2 inputs for floats or pressure switches;

Functions

  • Adjustable acceleration and deceleration ramp and adjustable torque;
  • Command with selector and LEDs ø 22mm;
  • Main disconnecting switch with door lock;

Protections

  • Thermal relay protection against motor overload or phase absence;
  • Auxiliary circuit and motor power supply protection fuses;
  • 24Vac auxiliary contacts from safety transformer;
  • Very low voltage inputs;

 Optional features

MCL – Electronic module for level control with 3 probes (probes not included);
SVA – Voltmeter + Voltmeter switch + Ammeter;

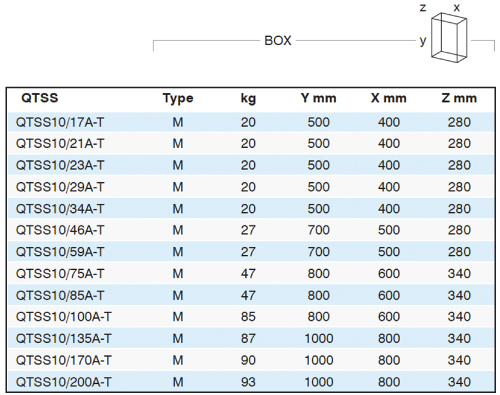

Dimensions and Weights

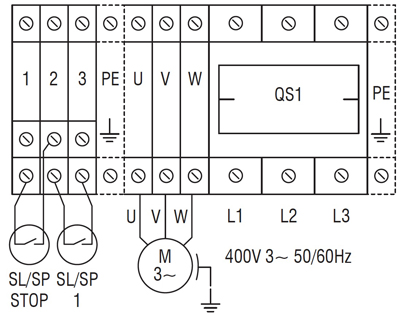

Circuit Diagrams

Electrical Data


Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
