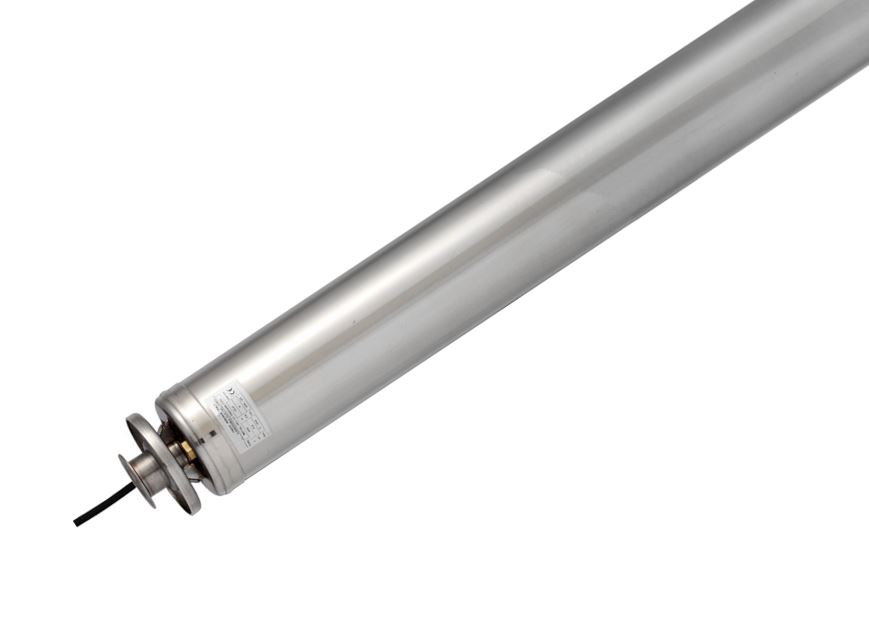

ADBLUE Electric Submersible Pump

Electric submersible pump for pumping of DEF (Diesel Exhaust Fluid) commonly known as AdBlue® or as AUS32®. It is a liquid solution composed of 32,5% of technical urea in distilled or deionized water, non-toxic and non-flammable.

Features

• Multistage monobloc electric submersible pumps with the hydraulic part located under the electric motor cooled by the pumped liquid.
• External pump case, motor case and shaft in stainless steel.
• Impellers and diffusers in stainless steel in the M45 group, in special technopolymer in the LAB group.
• Viton seals.
• Threaded delivery port 1” 1/4 from kW 0,75 to Kw 1,1 (LAB group).
• Threaded delivery port 1” 1/2 from kW 1,5 to Kw 3 (M45 group).
• Flanged delivery port PN 25 DN 32 UNI 6083/67 from kW 4 to kW 5,5.
• Electric pumps produced with 5 m of ID 4G1,5 electric cable included.

Motor

• 2 poles asynchronous motor, 50 Hz, 2850 rpm.
• Class F insulation.
• IP68 protection.
• Working voltage: single-phase 230 V, three-phase 400 V.
• Electric motor cooled by white mineral oil.

Working Conditions

• The pump can not operate in dry conditions.
• Pump body submerged for half of its height.
• Temperature of pumped liquid: min 0 °C – max 45 °C.
• Frost free location.
• Vertical operating position (on request special execution for oblique operating position).
• Maximum immersion depth: 20 m.
• Maximum number of starts per hour: 20.
