BETA EX Max Flow 13.2 m3/hr

BETA EX Max Flow 13.2 m3/hr
  Zoom
 BETA EX Max Flow 13.2 m3/hrBETA EX Max Flow 13.2 m3/hr
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+


Part Number:  Beta EX6-1p
Brand:  OFT

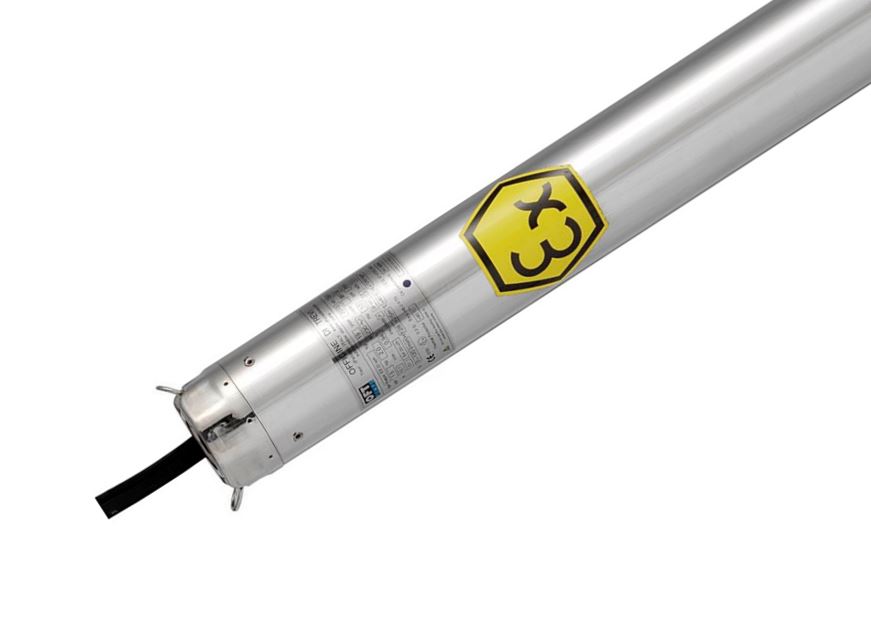

OFT Pumps     ATEX Logo      ATEX 4" Borehole Submersible Pumps with thermoplastic internals and Floating Impellers (Beta)
Max Flow 13.2m3/hr    Max Head  78 m


Pumping of liquids and extraction of leachate in landfill, drainage of contaminated fluids and groundwater.
The ATEX pumps in conformity with 2014/34/UE Directive can be installed in potentially explosive atmospheres according to the marking explained in the technical details.

Features

Multistage centrifugal electric submersible pumps for 4” wells. This range of pumps have a floating impellers system that ensures high resistance to sand abrasion.

  • External pump case, delivery port, suction port, shaft and others components in stainless steel.
  • Impellers in acetal resin.
  • Polycarbonate diffusers with ceramic inserts at wear points
  • Check valve made of stainless steel and is located in the delivery head
  • Motor coupling meets NEMA standards
  • Temperature of pumped liquid: max +40°C
  • 2 poles asynchronous motor, 50 Hz, 2850 rpm
  • Class F insulation. IP68 protection.
  • Working voltage: single-phase 230 V, three-phase 400 V. Other voltages available on request.

Alpha Performance Table

Options

There is a model available for permanent immersion in hydrocarbons polluted water.  Available as an all AISI 316 version.  Full customisable versions available on request.

ATEX Marking

ATEX Marking

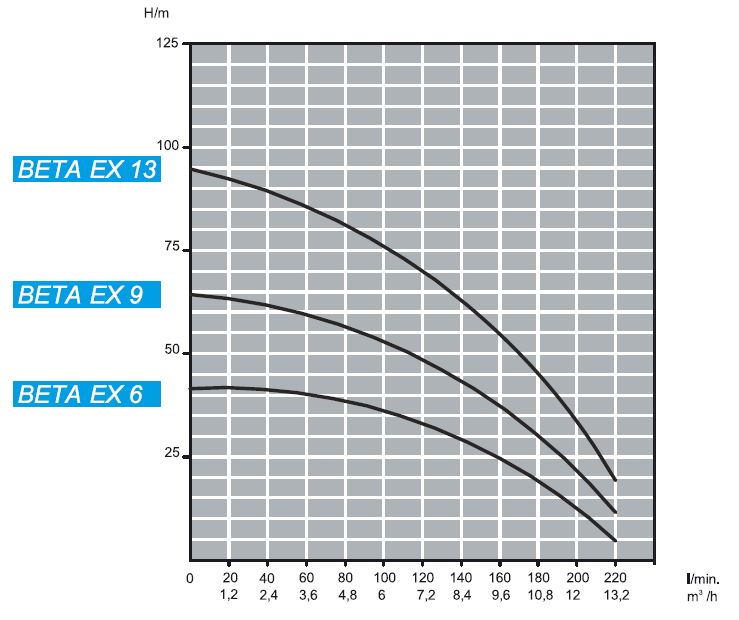

Performance Curves

Dimensions and Weights


Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
