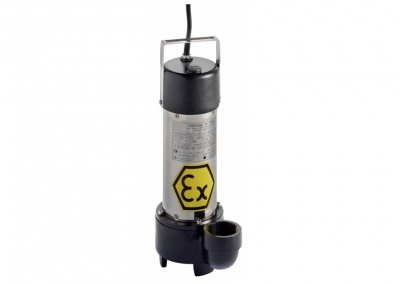

Derby EX Drainer Pump Standard ATEX Version

CALL US: +44(0)1473 462046
Brand
OFT
+

Collecting of leachate in storage tanks, pumping of industrial waste water from wells or collecting resevoirs.


OFT Pumps     ATEX Logo      ATEX Marking: CE 0722 Ex II 2G Ex mb h IIC T5 Gb
Max Flow 45m3/hr  Max Head 15m

Information

Derby EX drainer for collecting of leachate in storage tanks, pumping of industrial waste water from wells or collecting resevoirs.
The ATEX pumps in conformity with 2014/34/UE Directive can be installed in potentially explosive atmospheres according to the marking explained in the technical details.

Features

  • Open impeller in cast iron to avoid obstruction from mud and other suspended small solids
  • Electric pumps produced with 5 m of electric cable included.
  • Temperature of pumped liquid: max +40 °C.

Motor

  • 2 poles asynchronous motor, 50 Hz, 2850 rpm.
  • Class F insulation
  • IP68 protection
  • Working voltage: single-phase 230 V, three-phase 400 V.

ATEX Marking Information

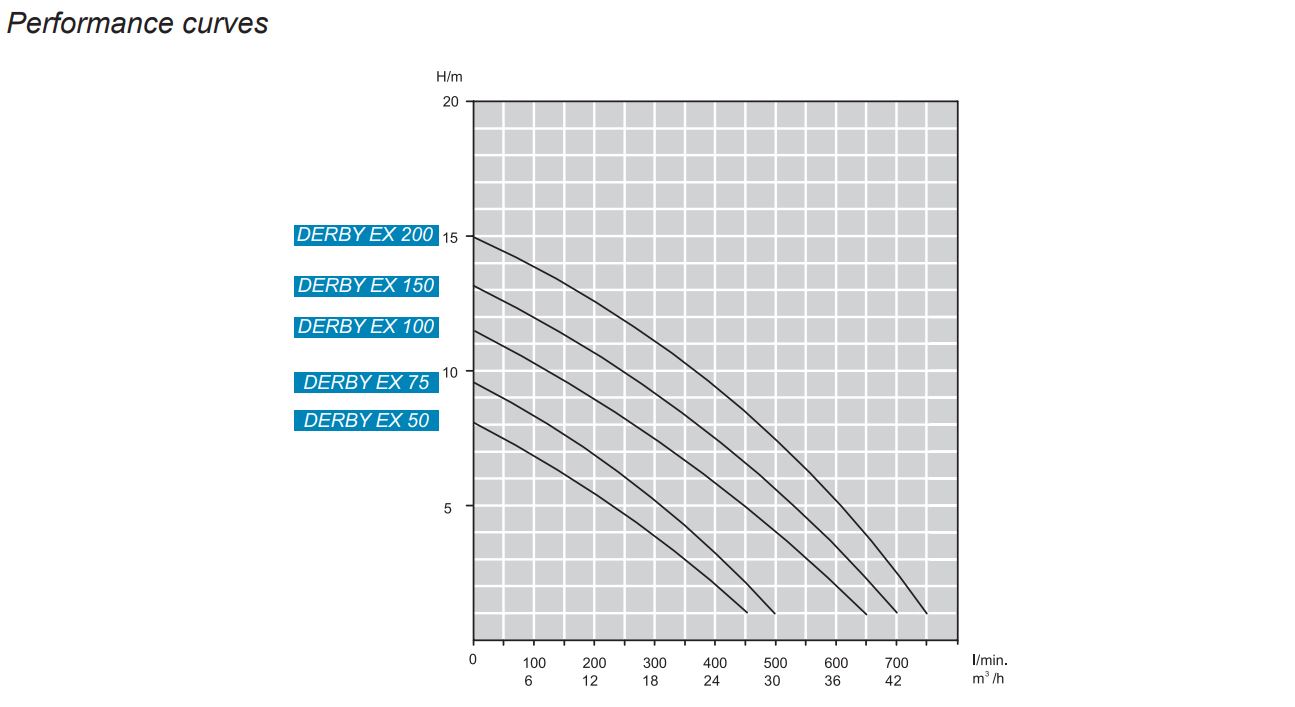

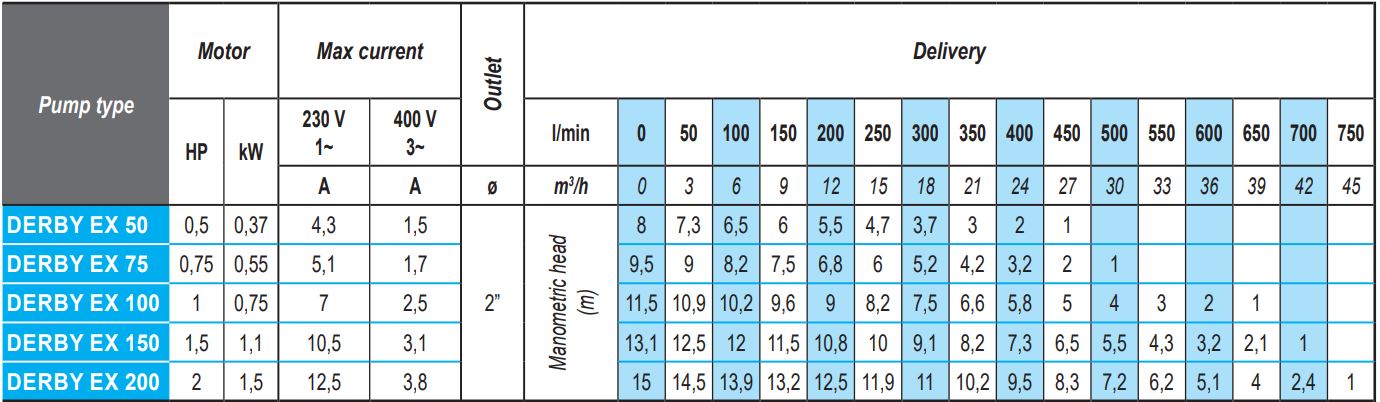

Technical

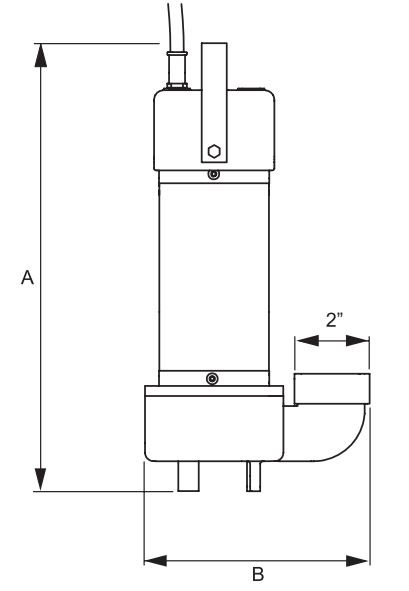

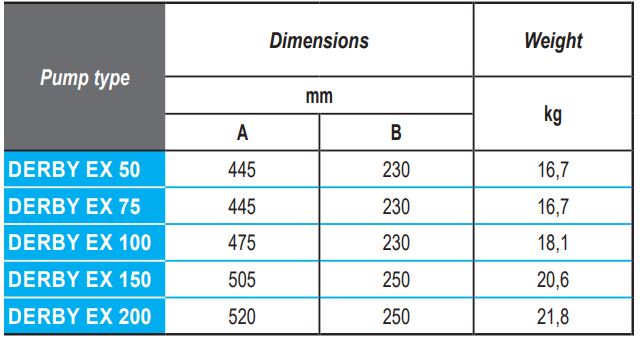

Dimensions and Weights



Downloads
