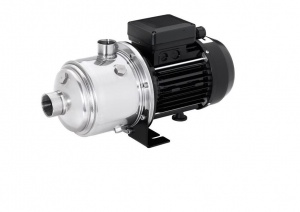

EHsp Horizontal Self Priming Multistage Pump E-tech Franklin Electric

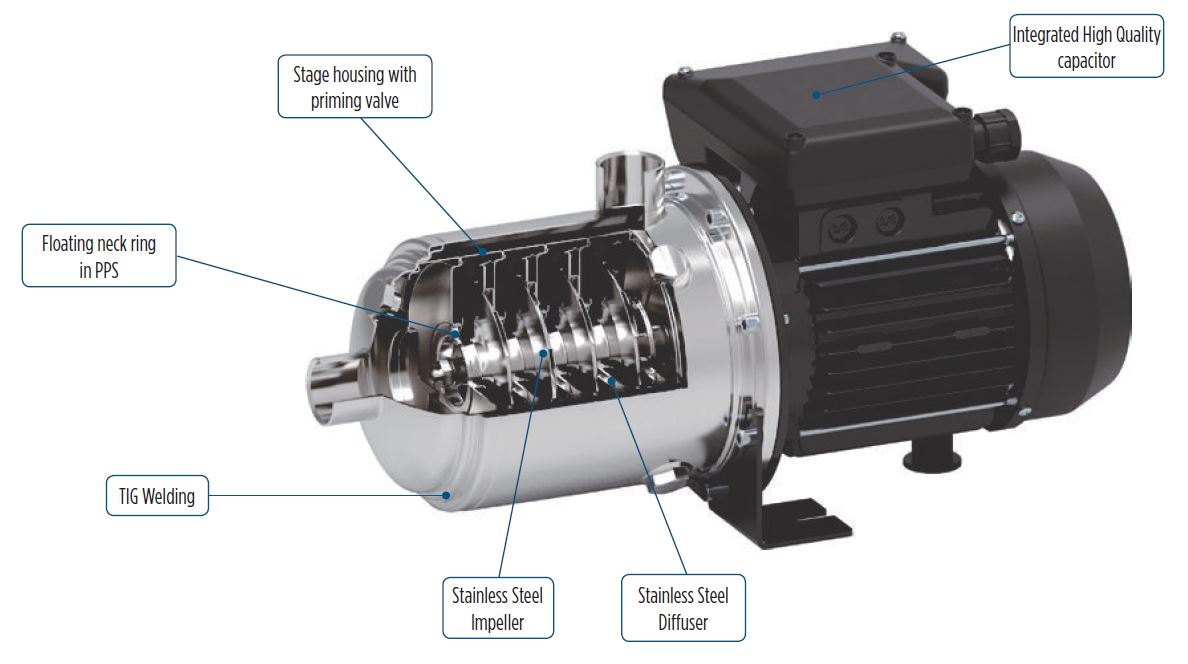

Franklin Electric E-Tech EHsp Horizontal Self-Priming Multistage pump is WRAS approved and features a design innovation of a special elastic valve system allowing air, present in the system, to escape - suction height up to 7 meters in less than 5 minutes. During start, this elastic valve, which is located at the first stage, opens to allow air to escape out of the system and water to enter the pump. As soon as the pressure arrives at a certain point, the valve closes, and the pump reaches the required performance.

This makes the EHsp the only stainless steel AISI304 self-priming horizontal multistage pump in the market.

Features

• Compact close-coupled design, robust and rust resistant
• Max suction lift capacity up to 7 m in less than 5 min
• Superior efficiency and performances
• Flexible application base plate
• Floating neck ring in PPS
• Heavy duty oversize motor shaft
• Impellers and diffusers are made of stainless steel in order to achieve durability
• Easy maintenance
• Strong and leak proof motor ball bearing fitted in the motor
• Pumping of clear non-loaded fluids
• Burgman Mechanical seal: Carbon / Ceramic / EPDM
• WRAS approved
• Very competitive pricing

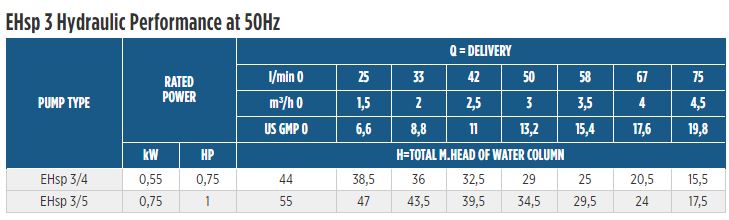

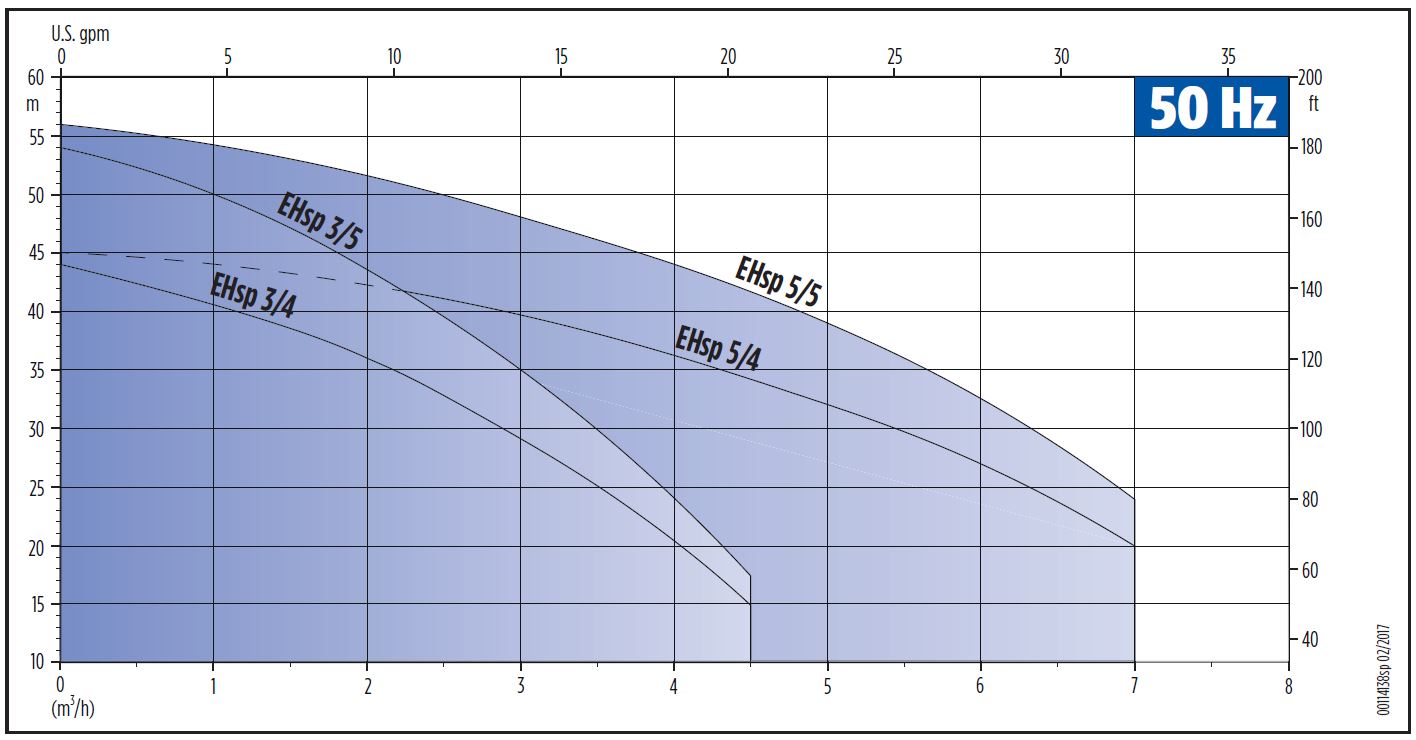

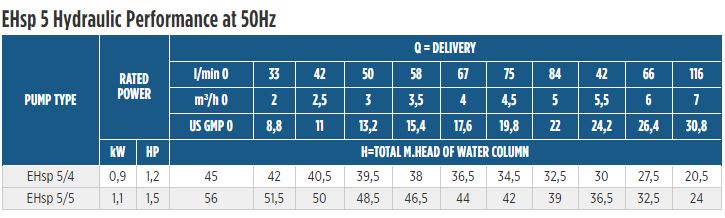

Pump Specifications

• Capacities: up to 8 m³/h at 50Hz
• Heads: up to 56 m at 50Hz

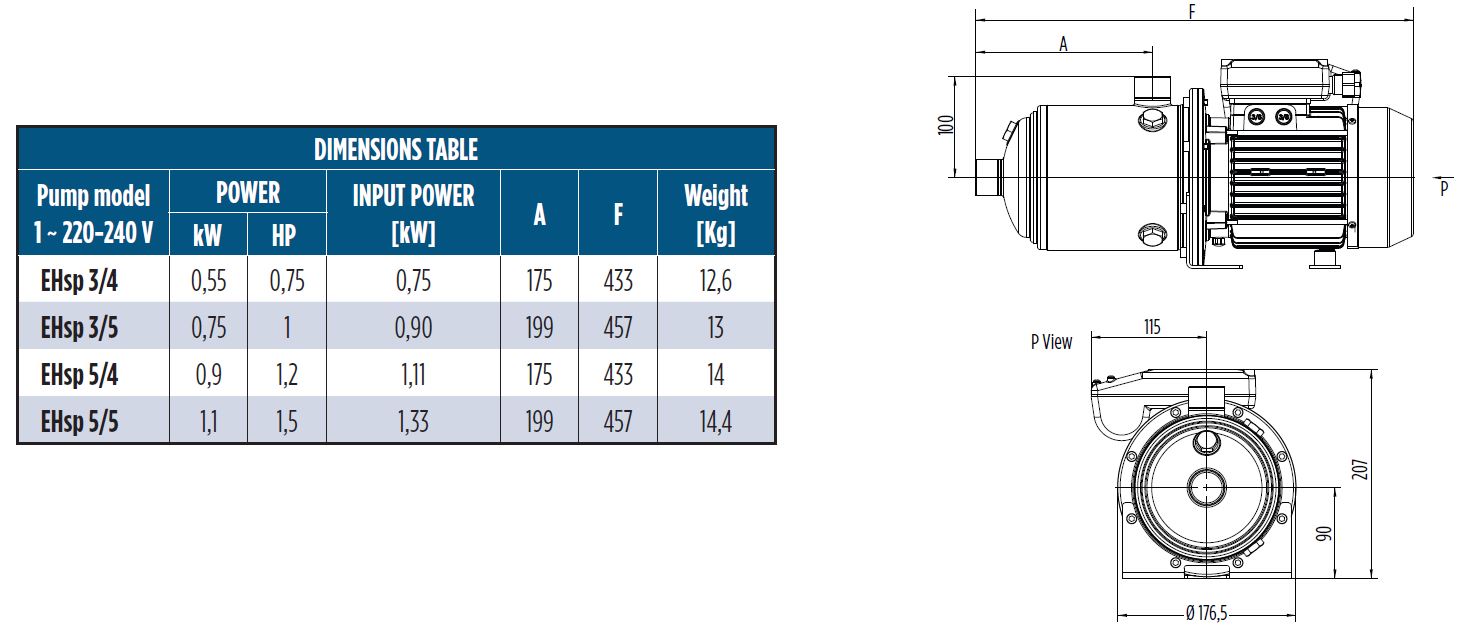

• Connections:
• Suction Inlet: Rp 1"1/4
• Discharge Outlet: Rp 1"
• Maximum working pressure: 10 Bar
• Maximum ambient temperature: 40°C
• Liquid temperature range:
• Minimum: 0°C
• Maximum: +35°C
• The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B

Motor Specifications

• Single-phase
• Asynchronous, TEFC (Totally Enclosed, Fan-Cooled)
• 2 pole
• IP55 protection motor, Insulation class F
• Standard voltage
• Single-phase: 220-240 V ± 5 %. Thermal protection built into the motor.
• Starts per hour:
• for motor power up to 3kW the allowed starts are 60. Waiting time between two consecutive starts 1 minute

Applications

• Small domestic / industrial systems
• Domestic water supply
• Water distribution / pressure boosting
• Irrigation / gardening
• Sprinklers / Fire sprinklers / Domestic fire sprinklers
• Rainwater recovery
• wash down unit
• Cooling and chilling / heating and conditioning systems
