EM DTm Vertical close-coupled multistage pumps with Drive-tech MINI E-tech Franklin Electric

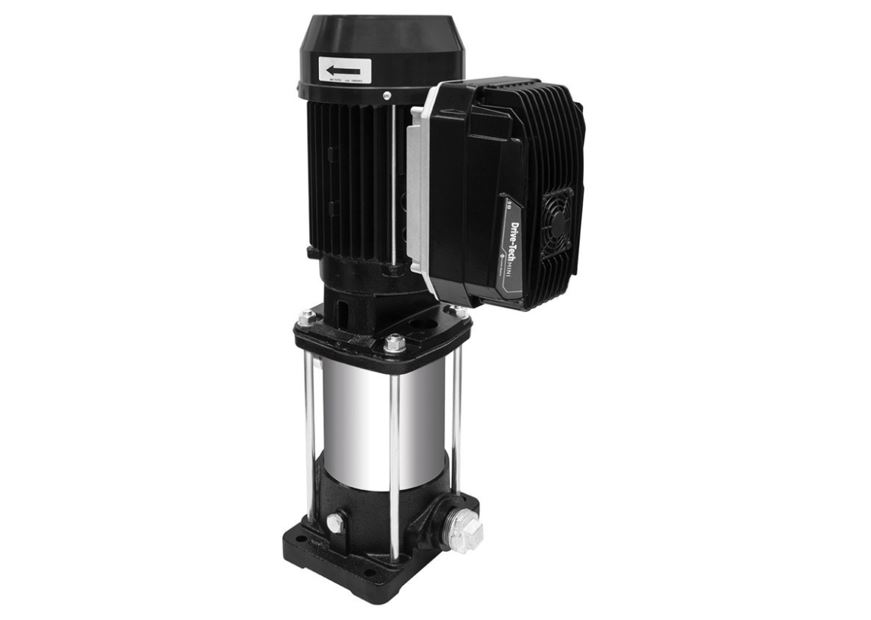

EM DTm vertical close-coupled multistage pump from Franklin Electric E-tech with the new inverter device Drive-Tech MINI is an state-of-the-art booster set which combines efficiency, simplicity, innovation and safety.

• Efficiency: The Drive-Tech MINI achieves overall energy savings up to 40 %, compared to conventional speed control systems.

• Simplicity: The Drive-Tech MINI is mounted directly onto the motor control box. It is already supplied with a 2.0 meter power cable and a 1.50 meter cable to connect with the pressure transducer.

• Innovation: The Drive-Tech MINI can be controlled manually by the board panel or via Bluetooth by the Franklin Smartphone App “FE Connect Drivetech” (Android and IOS), enabling you to set and monitor the system remotely, save working data and increase the pump performance.

• Safety: The integrated Class B (EN55011) input-filter prevents any type of disturbances in the domestic network to ensure a reliable use. The filter follows EMC Directives (electromagnetic compatibility).

Features

• Compact close-coupled design, robust and corrosion resistant / Superior efficiency and performances
• Flexible application base plate
• Floating neck ring in PPS
• Oversize motor shaft
• Impellers and diffusers are made of stainless steel in order to achieve durability
• Easy maintenance
• Strong motor rolling bearing fitted in the motor bracket
• Pumping of clear non-loaded fluids
• Mechanical seal Type E0 = carbon/ceramic/EPDM
• Energy saving due to variable speed control
• Soft start and soft stop
• Extended system life and reliability
• Simplified installation on motor or wall
• Easy and fast commissioning thanks to initial configuration wizard
• Installation on humid and dusty environment made possible by IP55 (NEMA 4) protection degree
• High thermal and mechanical performance thanks to aluminum case and independent ventilation

Pump specification

• Flow: up to 17 m³/h
• Head: up to 101 m
• Discharge and Suction port: Threaded or Oval connections
• Maximum working pressure: 10 Bar
• Direction of rotation: clockwise looking at the pump from the top down
• Maximum altitude at rated current: 1000 m
• Maximum ambient temperature 40 °C
• Liquid temperature range:
• Minimum: 0 °C
• Maximum: +80 °C for domestic use (uses covered by CEI EN standard 60335-2-41)

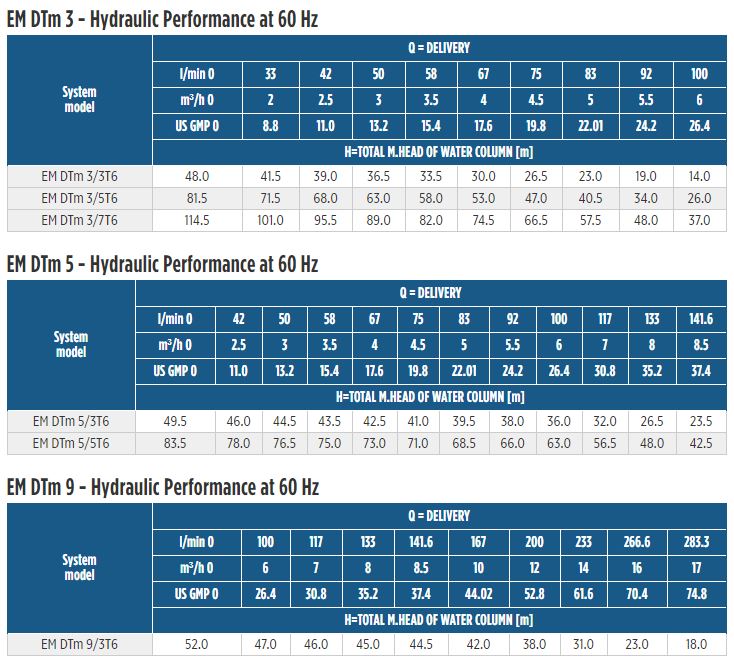

• The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B

Applications

• Small domestic / industrial systems
• Domestic water supply
• Water distribution / pressure boosting
• Irrigation / gardening
• Sprinklers / Fire sprinklers/ Domestic fire sprinklers
• Rainwater recovery
• wash down unit
• Cooling and chilling / heating and conditioning systems
• Water booster sets
• HVAC systems with circulating pumps

For full Drive Tech Mini Specifications please see the technical tab and product sheet download or visit the web page: https://www.geoquipwatersolutions.com/franklin-electric-e-tech-drive-tech-mini-inverter.html

Drive-Tech MINI specification

• Advanced functionalities:
• Monitoring and programming with smartphone and FE Connect App, available for Android and iOS mobile devices
• Remote control using a smartphone nearby as a modem
• Copy and paste of programming recipes
• Ability to send reports via email
• Multilingual support
• Control modes:
• Constant pressure control
• Constant or proportional differential pressure control
• Constant temperature control
• Constant differential temperature control
• Constant flow control
• External frequency control (trimmer) or 1 or 2 preset frequencies control
• Built-in protection against:
• Overvoltage and undervoltage
• Overcurrent and no load
• Dry running
• Overtemperature
• EMC compatibility for residential environment:
• Integrated PFC (P.F. 1) to meet EN61000-3-2
• Integrated input filter for Category C1 (EN61800-3), Class B (EN55011)
• Multi-pump operation (COMBO):
• Up to 8 units
• Working alternation for uniform pumps wearing
• Master or slave replacement in case of failure to ensure continuity of operation
• Advanced motor controls:
• Next generation control of asynchronous motors
• Sensorless control of permanent magnet synchronous motors
• Inputs and outputs:
• 2 programmable digital inputs for motor start & stop
• Modbus RTU
• 2 output relays for alarm and run indication
• 2 analog inputs 4-20 mA
• 2 analog inputs 0-10 V
