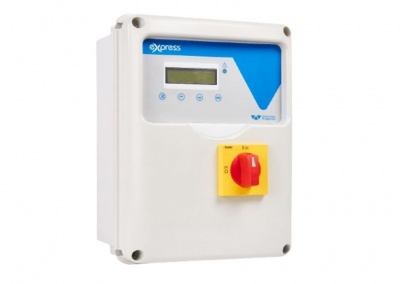

Express Electronic Control Panel

Express Electronic Control Panel
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

Part Number:  01630
Brand:  Elentek



Suitable for any applications, multi-user, LCD display and possibility to choose among 8 preset operation modes that simplify the use. The Express D control panels can control 1 to 4 pumps.

Legacy product

Please contact us if you would like to discuss our alternative products.

The latest innovation in our range of control panels.

Control panels suitable to any application, multi-user from 1 up to 4 pumps, LCD display, possibility to choose among 8 pre-set operation modes that simplify the use.

Control panel for multiple applications: industrial, civil and agricultural.

Wide range of action with the possibility to use analog and digital signals.

The signals received from the analog devices are processed by the microprocessor controlling the motor connected: submerged pump, booster set, sewage package pump etc.

The innovative switching power supply guarantees a working range with wide voltage variation supply to the electronic board making of Express a reliable control panel in any situation.

  • Complete range of control panels from 1 to 4 motors DOL start single-phase and three-phase
  • Integrated and programmable dry running protection (by power factor, float switch or level sensors)
  • Control unit with phase sequence/failure and min-max voltage control
  • Control unit with analogue and digital inputs (pressure switch, float switch, level sensor, pressure sensor)
  • Integrated and programmable pumps rotation
  • 8 operation modes for multiple applications
  • Multifunction LCD with multi-meter integrated and view of the status of the system

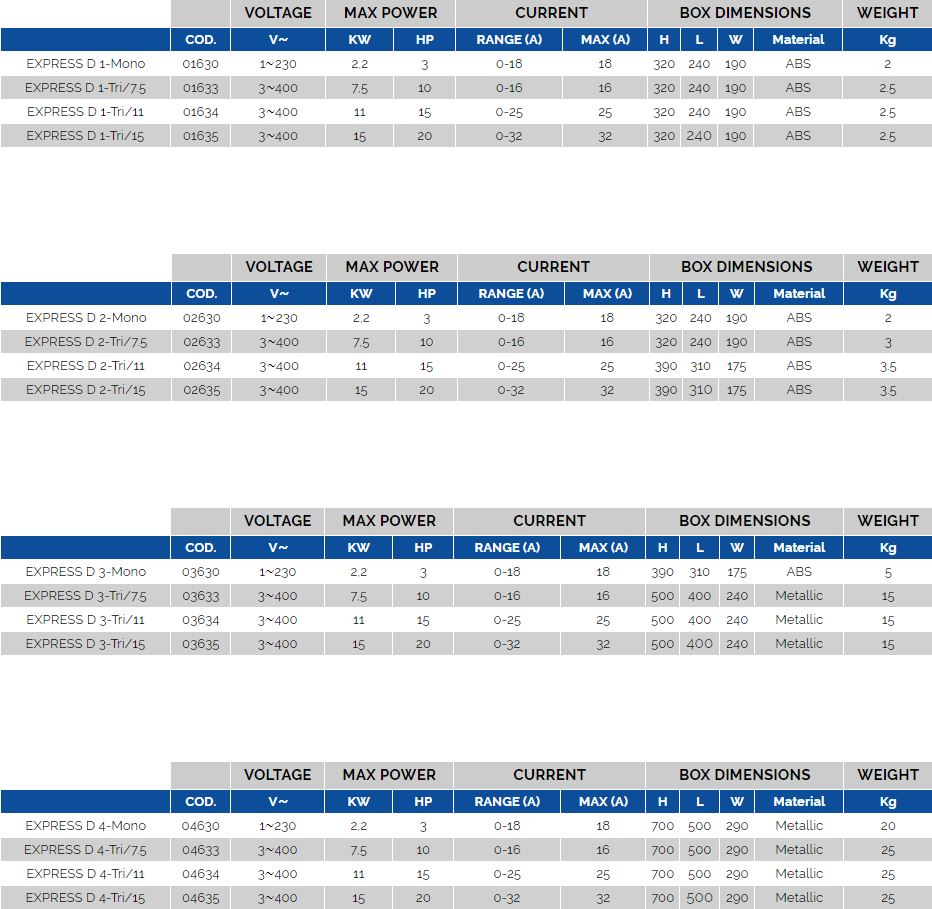

Express D Control Panel Table

General Features

  • Control unit with Liquid Crystal Display 2x16 line to visualize:
    • voltage
    • frequency
    • current
    • power factor (cosφ)
    • pressure
    • level
    • operating status of the system
    • system faults
  • Controller: multilingual, 8 operation modes, inputs 4÷20mA, 0-10V, digital ON-OFF input (float or pressure switches or external controls);
  • Auxiliary users activation in case of fault of the user in operation (models from 2 to 4 users);
  • Control of the users individually or in duty standby/assist (models from 2 to 4 users);
  • Dry running protection by power factor control (COS-FI);
  • Dry running protection by level probes (2 or 3 probes);
  • Electronic control of motor overcurrent;
  • Minimum voltage control : 180->415 (depending on the model);
  • Max voltage control: 220->460 (depending on the model);
  • Alarms control: dry running, motor in protection, motor overtemperature, board communication, voltage too low/ high, phase sequence/failure, min/max level;
  • Alarms archive;
  • Box IP55;
  • Ambient temperature: -5/+40 °C;
  • Relative humidity 50% at 40 °C (condensate free).
