High Efficiency Pump Solar System 6 inch E-tech Franklin Electric

6" CT PM Motors High Efficiency Solar System

Franklin Electric is pleased to announce the introduction of the extended SOLAR feature for its 6" High Efficiency Submersible Borehole systems (HES).

These systems, consisting of a full stainless, synchronous submersible NEMA motor associated with a variable frequency drive and matching output filter have proven their world-class efficiency in over 1000 applications to date, saving up to 20%* of electrical energy when compared to standard synchronous motor systems.

FEATURES & BENEFITS:

SUPERIOR EFFICIENCY

• Up to 15 % improved motor efficiency (system up to 11 %) with excellent partial load behaviour (SKU reduction)*
• Due to the high motor efficiency, amps are significantly reduced, which might lead to smaller drop lead cross size and thus cost saving
• One-stop shop and perfectly matching components guarantee first-class performance/efficiency
• Less panels, more water respectively
• MVPT algorithm maximizes system performance
• Power factor corrected input (No power compensation needed)
• Solar drive available in IP21/54 and IP66 enclosure rating
• AC and DC power source compatible
• Significant lower motor heat rise (Increased lifetime)

EASY INSTALLATION

• Easy system set-up due tailored pre-settings, user interface and own Franklin Electric software

INCREASED LIFETIME

• Incorporated Soft start and protection features (no additonal investment)
• Speed control (Optimum aggregate operation - pump matches system any time)

CONNECTIVITY

• Communication ModBus (RS485 and Ethernet)

FULLY SUPPORTED

• Fully supported by the Technical Support Professionals

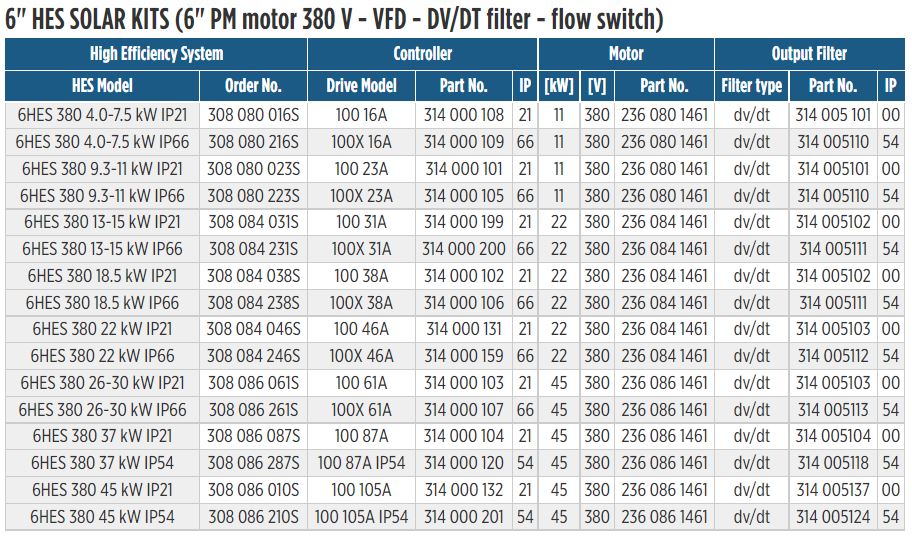

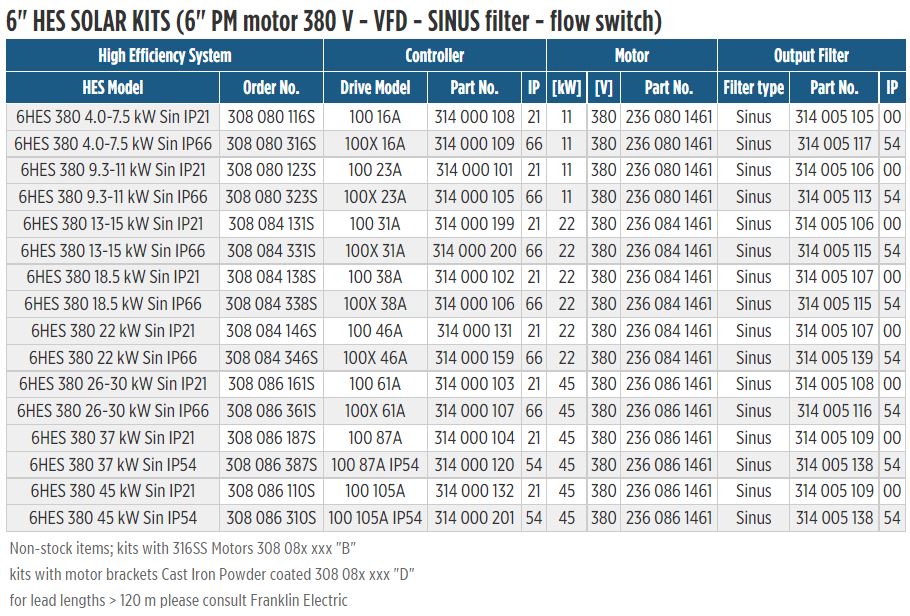

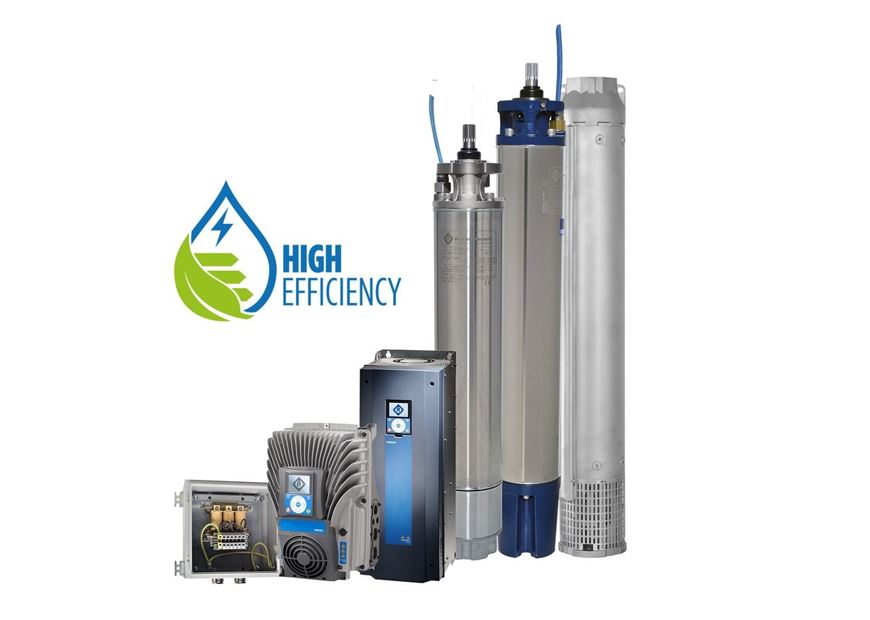

Solar system package

Direct DC feeding, AC and DC power source compatible
Suitable for the use in remote areas and harsh environments without grid supply
Robust Electronics enclosure designs

• 6" encapsulated 304SS synchronous submersible NEMA motor
• Variable frequency drive
• Matching output filter
• Flow switch

APPLICATIONS:

• Agriculture
• Residential
• Industrial
• Mining

SPECIFICATIONS:

• Motor range:
• 4.0 – 11.0 kW / 13.0 – 22.0 kW / 26.0 – 45.0 kW (100 Hz - 3000 rpm)
• 4.6 – 12.7 kW / 15.0 – 25.0 kW / 30.0 - 51.7 kW (120 Hz - 3600 rpm)
• System Power Supply: 400 - 800 V DC / 380 - 400 V AC
• AC System Supply Frequency: 50/60 Hz ± 6 %
• Motors installation orientation: Vertical / horizontal (shaft end heightened)
• Protection:
• motor: IP68, insulation class F
• drive: IP66/54/21
• filter: IP54/00

SYSTEM OPTIONS:

• Plug-in card 6x DI/DO - 308 170 201
• Plug-in card PT100 - 308 170 202
• Plug-in card Profibus - 308 170 203
• Plug-in card - 1x AI & 2x AO 308 170 206

*In comparison to current asynchronous technology
