High Efficiency Pump System 6 inch E-tech Franklin Electric

Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

Brand:  Franklin Electric E-tech

Franklin Electric E-tech

System package with energy savings up to 15 %*

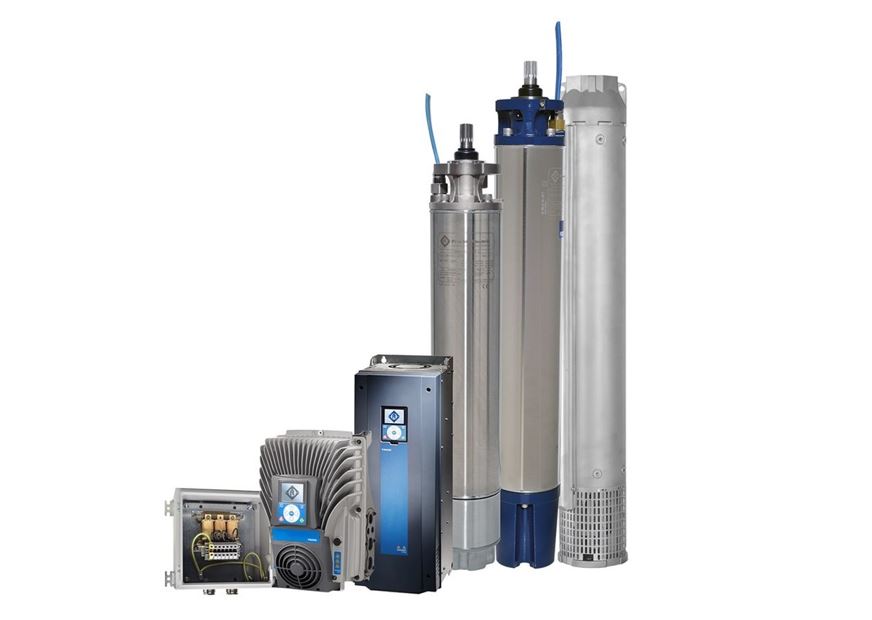

In consideration of environmental relief and energy saving Franklin Electric E-tech developed a High Efficiency 6" Submersible Borehole System, consisting of a synchronous submersible NEMA motor associated variable frequency drive and output filter.

6" CT PM Motors High Efficiency System

FEATURES & BENEFITS:

SUPERIOR EFFICIENCY

  • Up to 15 % improved motor efficiency (system up to 11 %) with excellent partial load behaviour (SKU reduction)*
  • Due to the high motor efficiency, amps are significantly reduced, which might lead to smaller drop lead cross size and thus cost saving
  • One-stop shop and perfectly matching components guarantee first-class performance/efficiency
  • Power factor corrected input (No power compensation needed)
  • Significant lower motor heat rise (Increased lifetime)

EASY INSTALLATION

  • Easy system set-up due tailored pre-settings, user interface and own Franklin Electric software

INCREASED LIFETIME

  • Incorporated Soft start and protection features (no additonal investment)
  • Speed control (Optimum aggregate operation - pump matches system any time)

CONNECTIVITY

  • Communication ModBus (RS485 and Ethernet)

FULLY SUPPORTED

  • Fully technical support

SPECIFICATION:

  • Motor range: 4.0 – 11.0 kW / 13.0 – 22.0 kW / 26.0 - 45.0 kW (100 Hz - 3000 rpm)
  • 4.6 – 12.7 kW / 15.0 – 25.0 kW / 30.0 - 51.7 kW (120 Hz - 3600 rpm)
  • System Power Supply: 380 - 400 / 460 V ± 10 %
  • System Supply Frequency: 50/60 Hz ± 6 %
  • Motors installation orientation: Vertical / horizontal (shaft end heightened)
  • Protection:
  • motor: IP68, insulation class F
  • drive: IP66/54/21
  • filter: IP54/00

APPLICATIONS:

  • Agriculture
  • Industrial
  • Residential
  • Mining

SYSTEM OPTIONS:

  • Plug-in card 6x DI/DO - 308 170 201
  • Plug-in card PT100 - 308 170 202
  • Plug-in card Profibus - 308 170 203
  • Plug-in card 1x AI & 2x AO 308 170 206

*In comparison to current asynchronous technology

Product catalogue

  Click here to download

HES Flyer

  Click here to download
Quote Required?
Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
