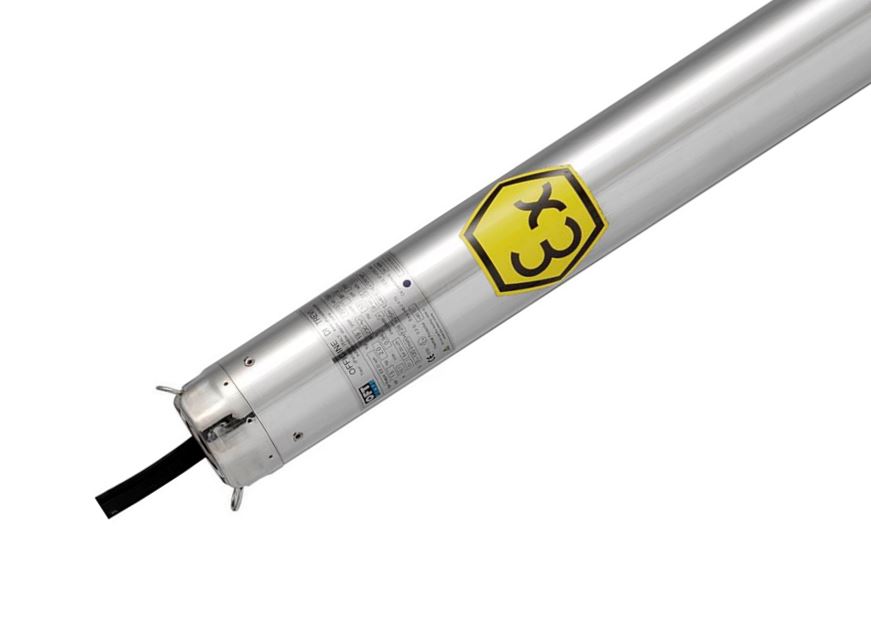

ID CROMA EX Hydrocarbon Pump - MaxFlow 3.6m3hr

Applications

Pumping of liquids and extraction of leachate in landfill, drainage of fluids contaminated by hydrocarbons and groundwater.

The ATEX pumps in conformity with 2014/34/UE Directive can be installed in potentially explosive atmospheres according to the marking explained in the technical details.

Features

• Multistage centrifugal electric submersible pumps for 4” wells.
• External pump case, delivery port, suction port, shaft and other components in AISI 316 stainless steel.
• Impellers and diffusers in special technopolymer.
• The check valve made of AISI 316 stainless steel is installed inside the delivery head.
• Temperature of pumped liquid: max +40 °C.
• Special and mechanical seal, it is particularly robust and reliable with high resistance to chemical aggression.

Motor

• 2 poles asynchronous motor, 50 Hz, 2850 rpm.
• Class F insulation.
• IP68 protection.
• Working voltage: single-phase 230 V, three-phase 400 V.
• Oil filled electric motor.

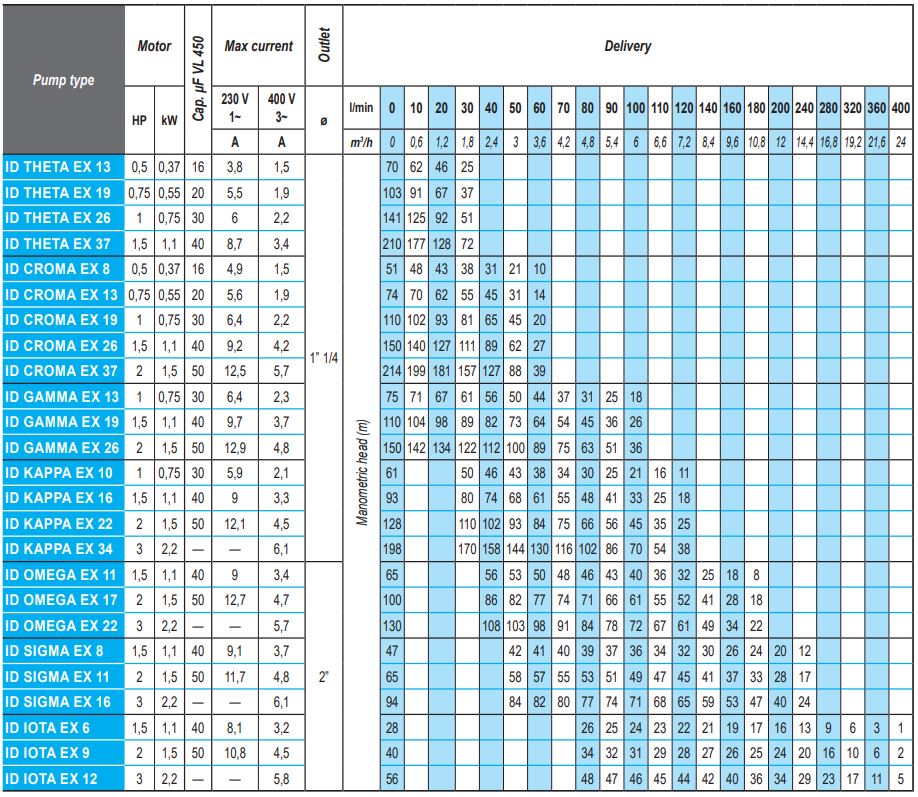

Performance Table

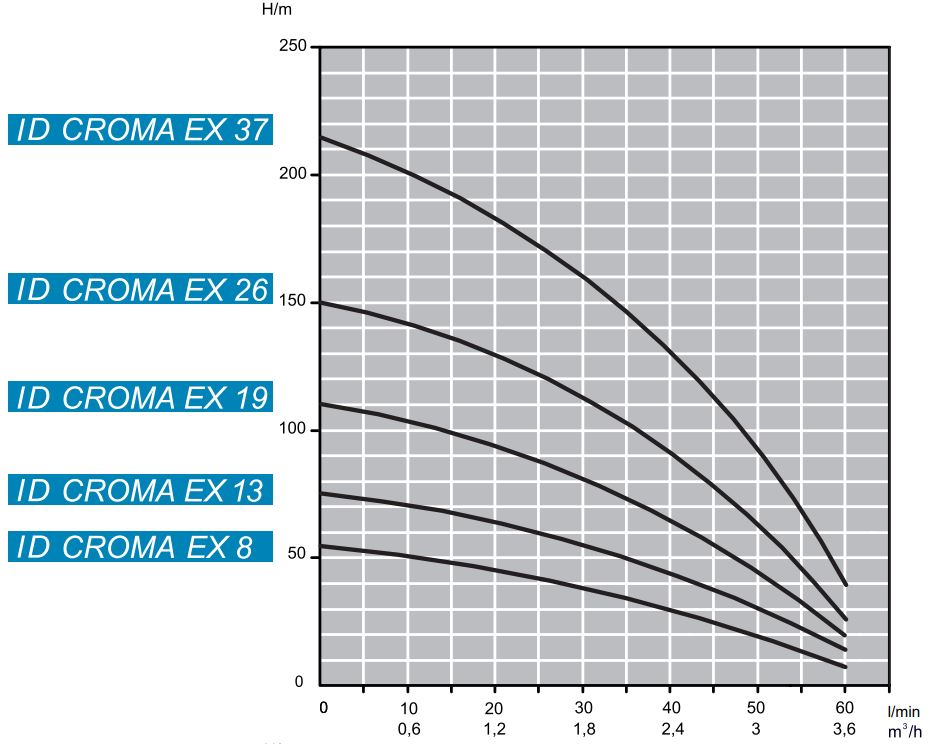

Performance Curves

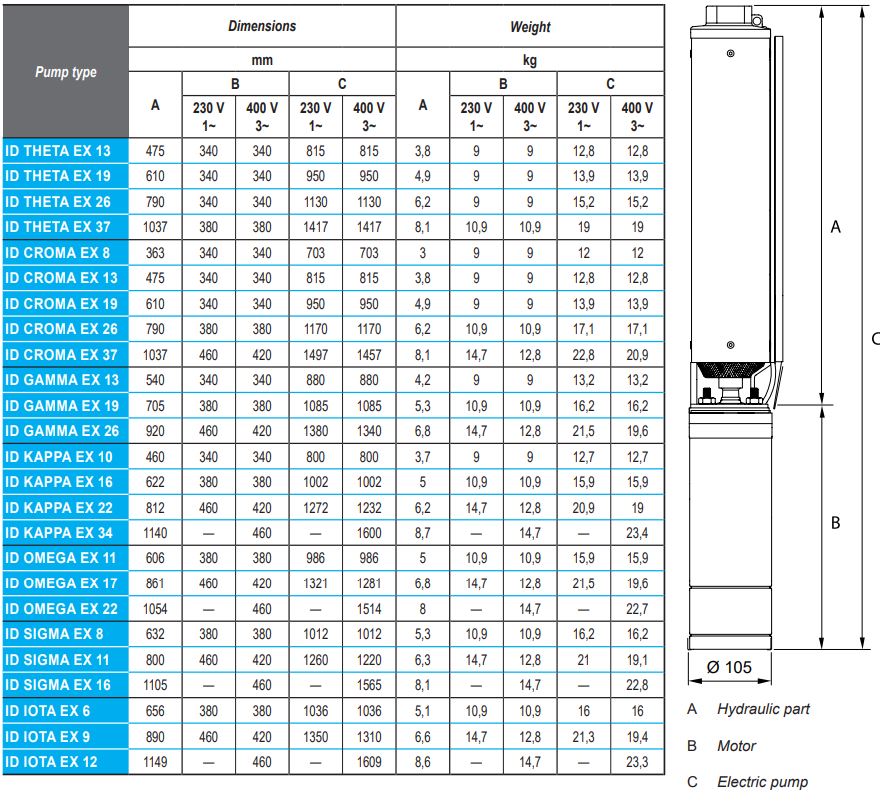

Dimensions and Weights
