ID TREINCH EX Hydrocarbon Pump - MaxFlow 3.3m3hr

ID TREINCH EX Hydrocarbon Pump - MaxFlow 3.3m3hr
  Zoom
 ID TREINCH EX Hydrocarbon Pump - MaxFlow 3.3m3hrID TREINCH EX Hydrocarbon Pump - MaxFlow 3.3m3hr
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+


Part Number:  99 ID TREINCH EX 25-20-1p
Brand:  OFT

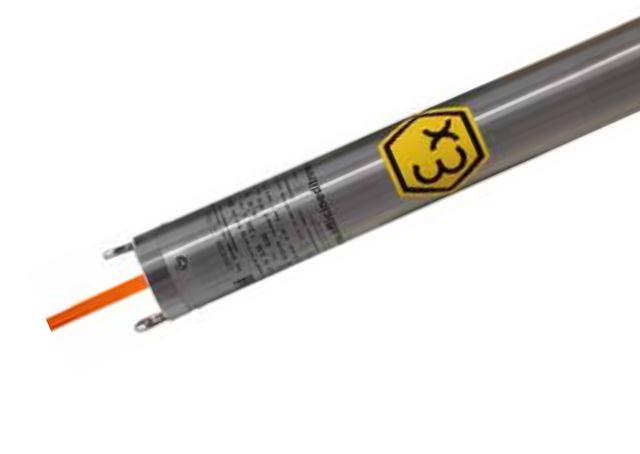

OFT Pumps     ATEX Logo      99 ID TREINCH EX ATEX Rated 3" Borehole Submersible Pumps
Max Flow 3.3 m3/hr    Max Head 87 m


Pumping of liquids in landfill, drainage of liquids from piezometric wells, sampling of fluids in sites contaminated by hydrocarbons and groundwater.

The ATEX pumps in conformity with 2014/34/EU Directive can be installed in potentially explosive atmospheres according to the marking explained in the technical details.

Features

Multistage centrifugal electric submersible pumps for 3” wells.
• External pump case, delivery port, suction port, shaft and other components in AISI 316 stainless steel.
• Impellers and diffusers in special technopolymer.
• Temperature of pumped liquid: max +40 °C.
• Special mechanical seal, particularly robust and reliable, with high resistance to wear and chemical abrasion.
• Available the version with Maxifilter 90 or with Slope Riser

Motor

2 poles asynchronous motor, 50 Hz, 2850 rpm.
• Class F insulation.
• IP68 protection.
• Working voltage: single-phase 230 V, three-phase 400 V.
• Oil filled electric motor.

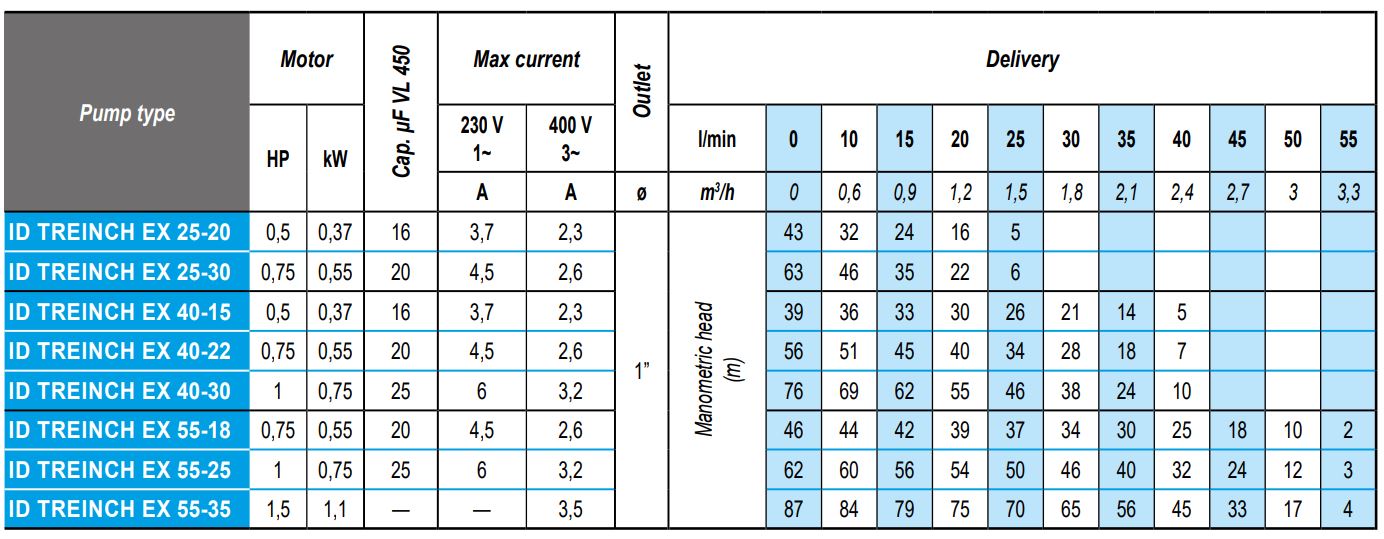

Performance Table

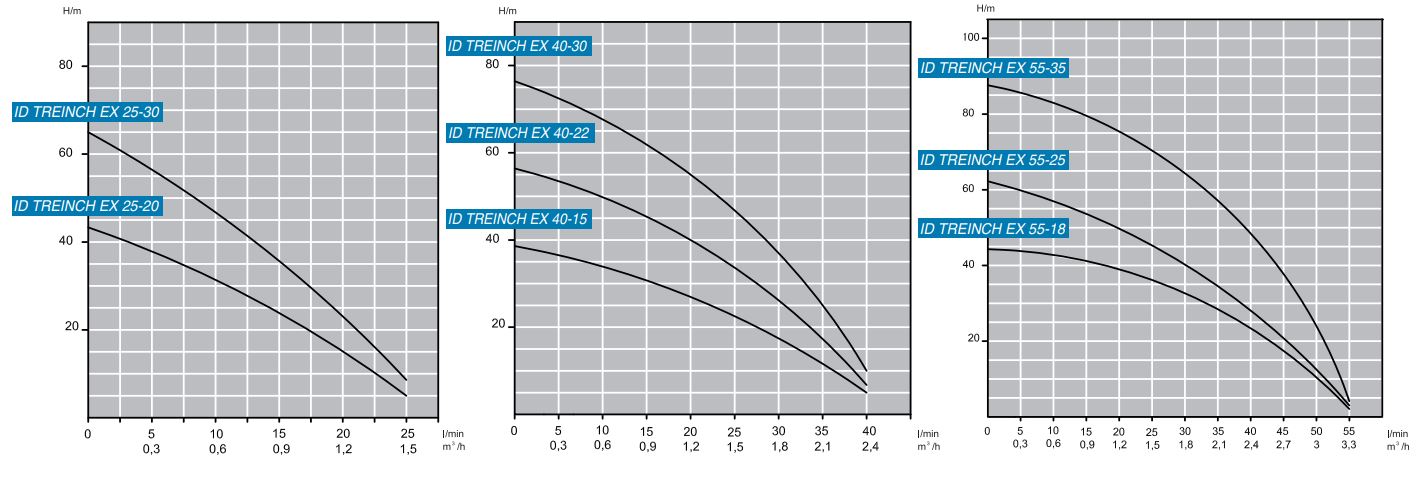

Performance Curves

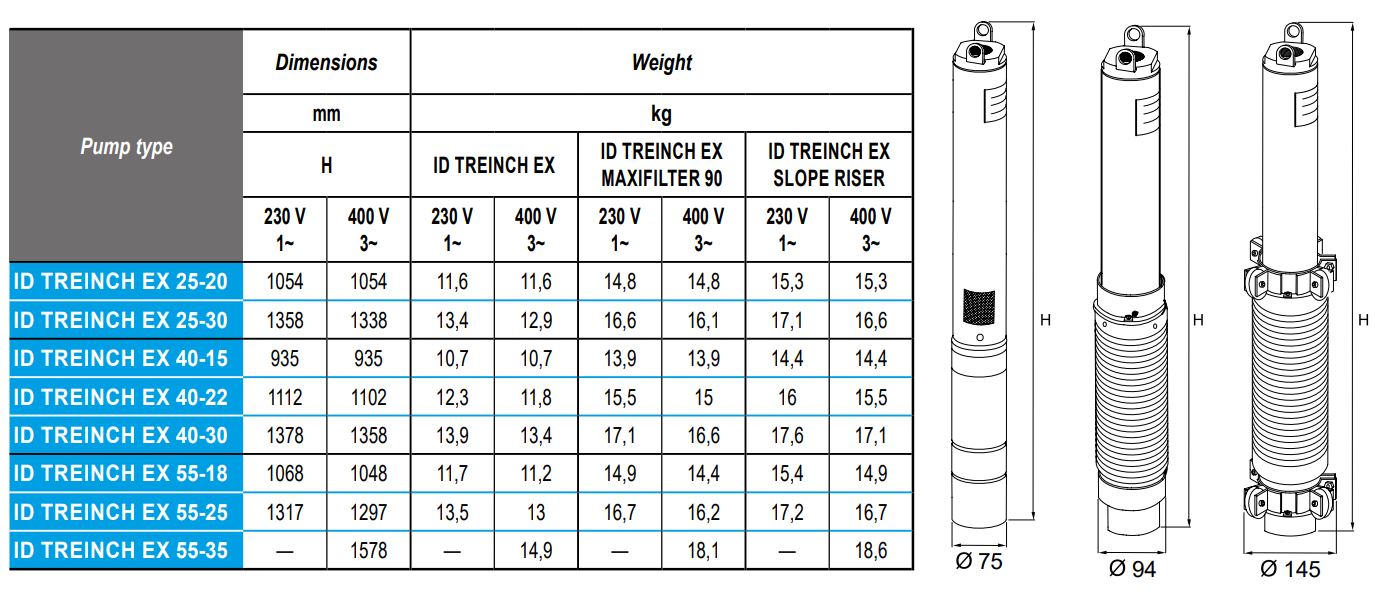

Dimensions and Weights




Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
