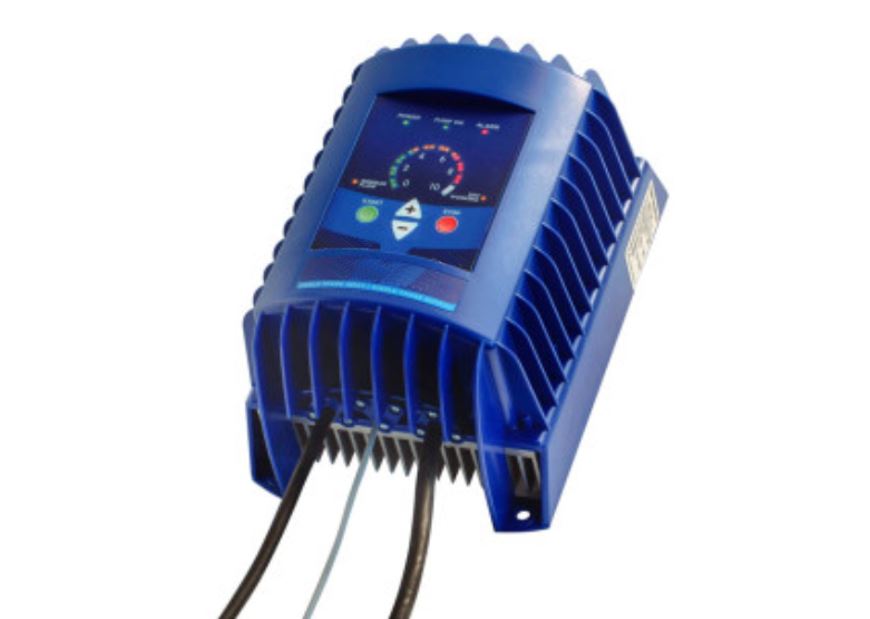

Standard Range Constant Pressure Inverter 1.5kW Single Phase In Three Phase Out

CALL US: +44(0)1473 462046
Part Number
CI1C-BJFCP150-2C
Brand
Geoquip Water Solutions
+

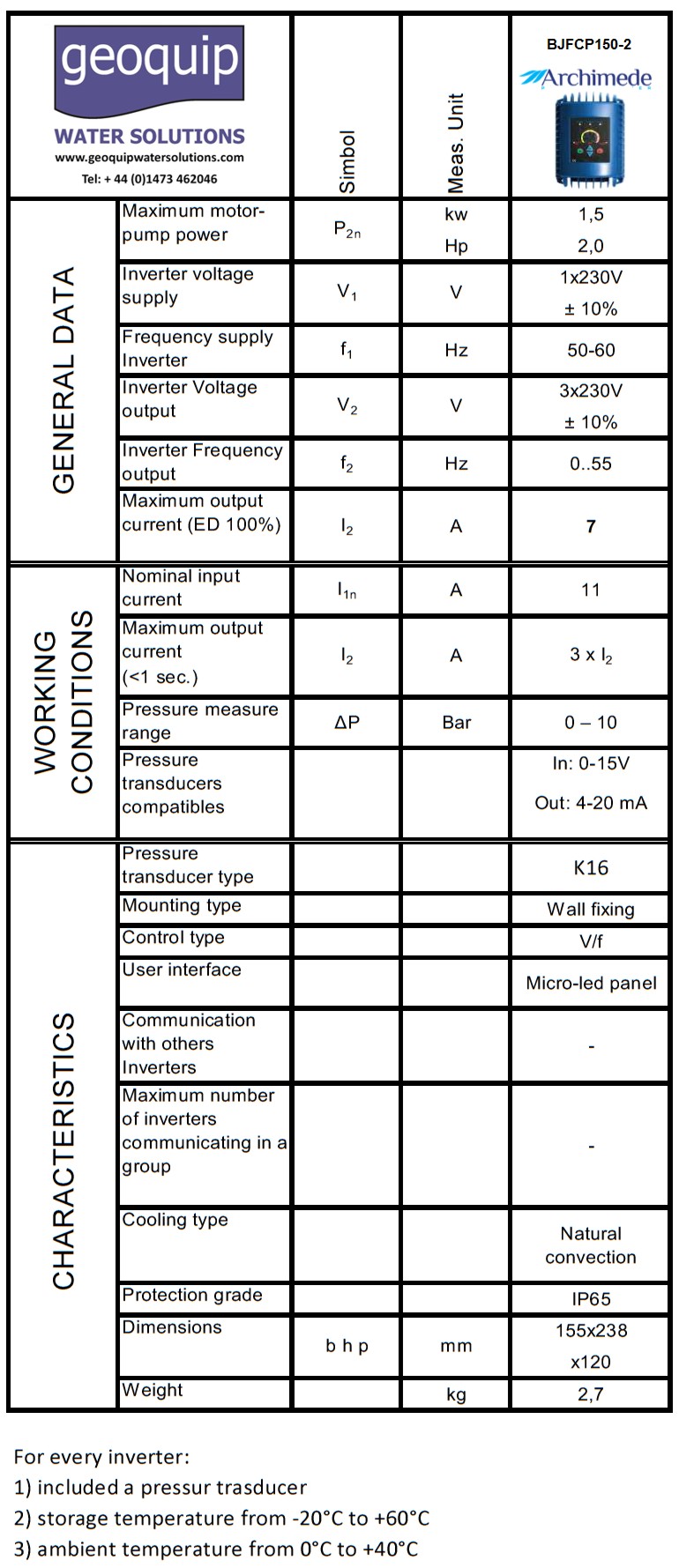

Key specifications;

  • Single phase input 1x230V±10%

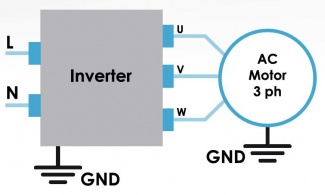

  • Three phase output 3x230V ±10%
  • Maximum motor-pump power 1.5kW
  • Maximum output current 7A
  • Output frequency from 0 to 55 Hz
  • Input frequency from 50 to 60 Hz
  • Pressure measure range from 0 to 10 bar;
Information

These inverters are used with a centrifugal pump driven by a single phase induction motor and a pressure transducer, which is provided & already connected to the inverter, that detects the pressure of the pumped system. These replace all traditional systems such as pressure switch or flow switch and large pressure vessels which are no longer necessary.

Soft starts and stops guarantee a low current absorption which extends the motor life, provides quieter working and reduces water hammer. The logic control unit protects the system from the no flow and dry-running conditions or other dangerous electrical or mechanical conditions.

Main Features

  • Entry level, wall mounting pump inverters
  • Compact and robust with high grade protection (IP65)
  • Complete with pre-wired cables for the power supply and motor connection and pressure transducer K16, plug and play
  • Maximum simplicity for installation and starting operations
  • Synoptic membrane panel with mirco-led, simple and easy to use

Technical
