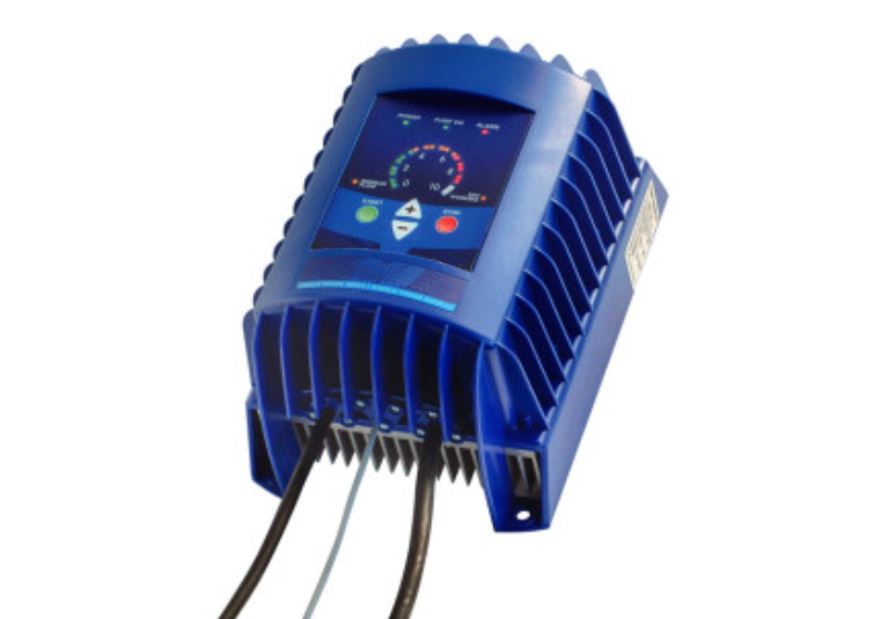

Standard Range Constant Pressure Inverter 1.5kW Single Phase

Standard Range Constant Pressure Inverter 1.5kW Single Phase
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

Part Number:  CI1C-BJFCP150-1C
Brand:  Geoquip Water Solutions

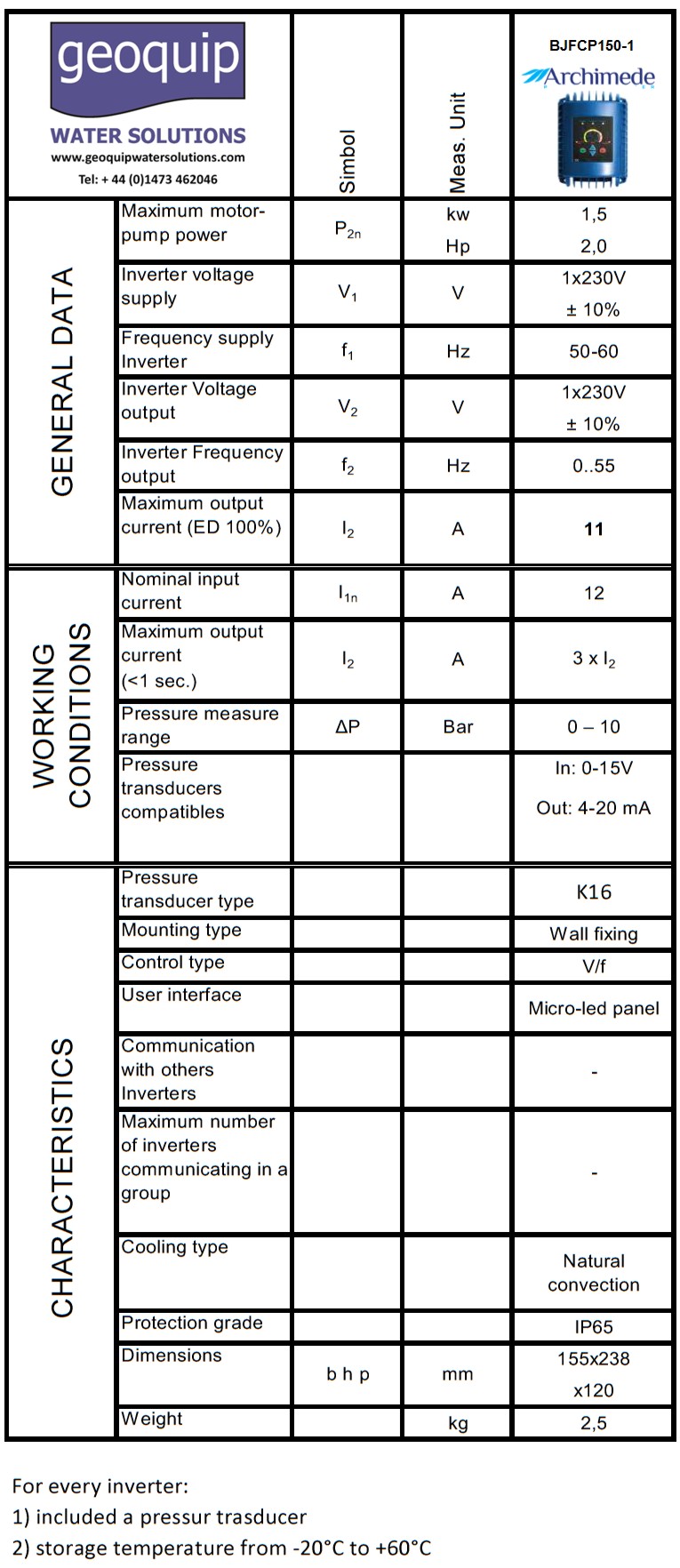

Key specifications

  • Single phase input and single phase output 1x230V±10%
  • Maximum motor-pump power 1.5kW
  • Maximum output current 11A
  • Output frequency from 0 to 55 Hz
  • Input frequency from 50 to 60 Hz
  • Pressure measure range from 0 to 10 bar

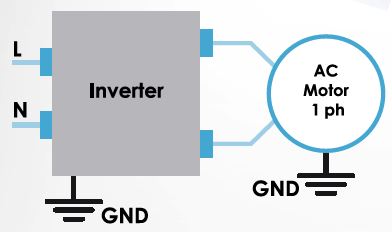

These inverters are used with a centrifugal pump driven by a single phase induction motor and a pressure transducer, which is provided & already connected to the inverter, that detects the pressure of the pumped system. These replace all traditional systems such as pressure switch or flow switch and large pressure vessels which are no longer necessary.

Soft starts and stops guarantee a low current absorption which extends the motor life, provides quieter working and reduces water hammer. The logic control unit protects the system from the no flow and dry-running conditions or other dangerous electrical or mechanical conditions.

Main Features

  • Entry level, wall mounting pump inverters
  • Compact and robust with high grade protection (IP65)
  • Complete with pre-wired cables for the power supply and motor connection and pressure transducer K16, plug and play
  • Maximum simplicity for installation and starting operations
  • Synoptic membrane panel with mirco-led, simple and easy to use
