VENERE EX Pump Max Flow 8.4m3/hr

VENERE EX Pump Max Flow 8.4m3/hr
  Zoom
 VENERE EX Pump Max Flow 8.4m3/hrVENERE EX Pump Max Flow 8.4m3/hr
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+


Part Number:  Venere EX9-1p
Brand:  OFT

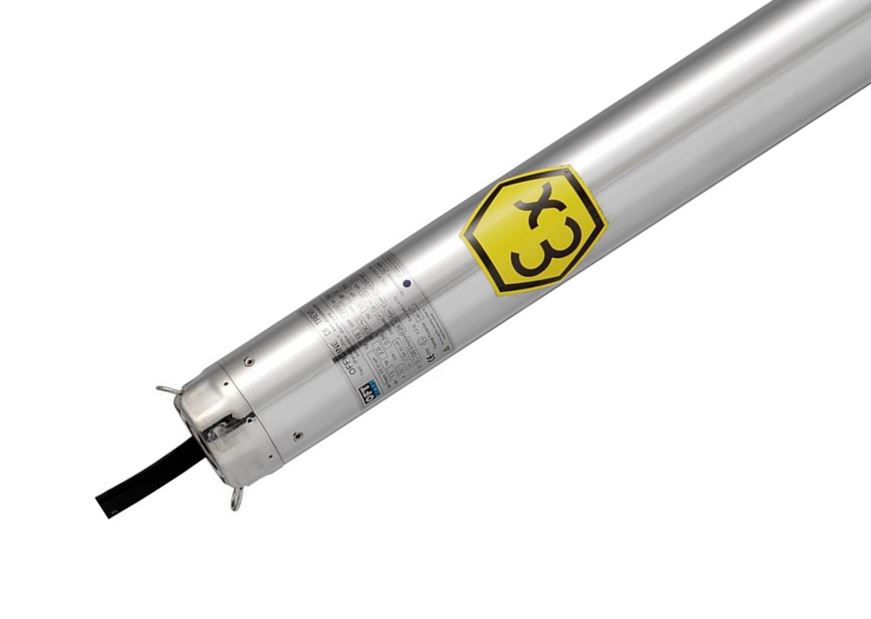

OFT Pumps     ATEX Logo      ATEX Rated 4" Borehole Submersible Pumps all stainless steel construction (Venere Ex)
Max Flow 8.4 m3/hr  Max Head 140 m


Pumping of liquids and extraction of leachate in landfill, drainage of contaminated fluids and groundwater.

The ATEX pumps in conformity with 2014/34/UE Directive can be installed in potentially explosive atmospheres according to the marking explained in the technical details.

Features

Multistage centrifugal electric submersible pumps for 4” wells.  Suitable for pumped liquids without solid particles, non-aggressive clean water.

  • External pump case, delivery port, suction port, shaft and others components in stainless steel 304
  • Impellers and diffusers in stainless steel 304
  • Check valve made of stainless steel and is located in the delivery head
  • Pump can not operate in dry conditions
  • Pump body must remain completely submerged
  • Motor coupling meets NEMA standards
  • Temperature of pumped liquid: min +5°C - max +30°C
  • Vertical operating position
  • 2 poles asynchronous motor, 50 Hz, 2850 rpm
  • Class F insulation. IP68 protection.
  • Max. immersion 120m
  • Max. starts per hour 20
  • Electric motor cooled by non-toxic, non-polluting liquid
  • Working voltage: single-phase 230 V, three-phase 400 V. Other voltages available on request.

Astra performance table

Options

There is a model available for permanent immersion in hydrocarbons polluted water.  Available as an all AISI 316 version.  Full customisable versions available on request.

Motor

  • 2 poles asynchronous motor, 50 Hz, 2850 rpm.
  • Class F insulation.
  • IP68 protection.
  • Working voltage: single-phase 230 V, three-phase 400 V.

ATEX Marking

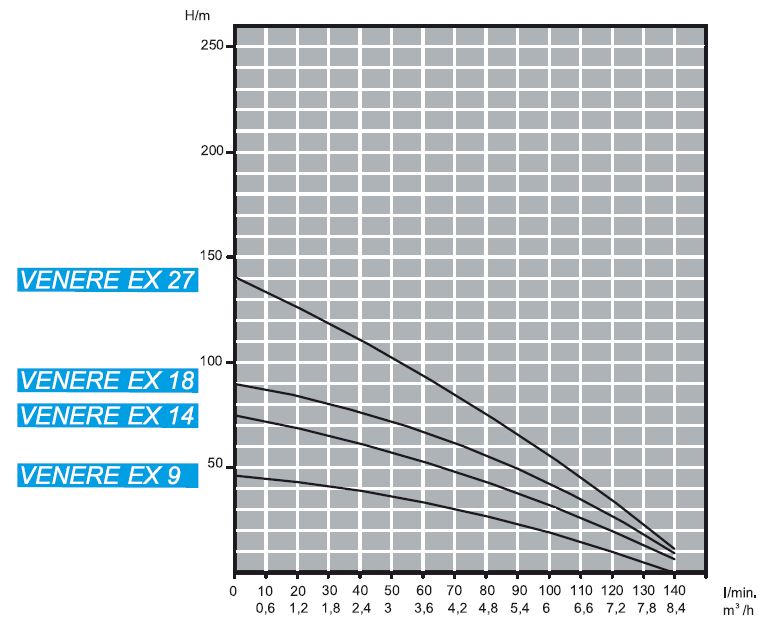

Performance Curves



Technical specifications

Dimensions and Weights


Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
