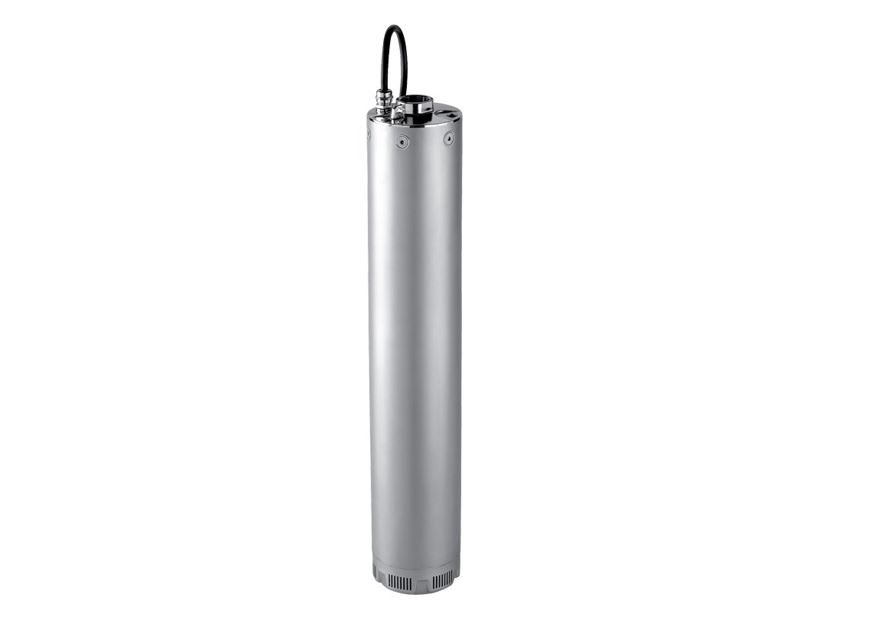

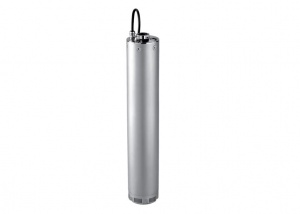

VN 3 - 5" Submersible Pump E-tech Franklin Electric

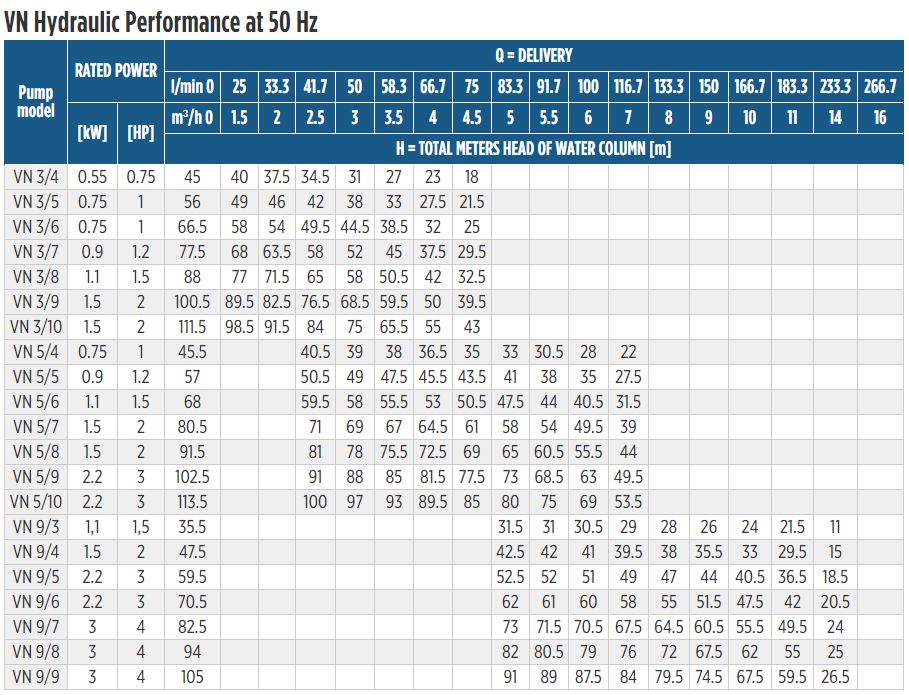

Performance Tables

Applications

• Water distribution / pressure boosting
• Rainwater collection
• Irrigation / Gardening / Sprinklers
• Dewatering
• Wash down unit
• Fountains
• Landfill leachate and condensate knock out pots
• Other various installations

FEATURES

• Compact close-coupled design, robust and rust resistant
• Impellers and diffusers are made of stainless steel in order to achieve durability, superior efÞciency and the highest performances
• Double mechanical seal separated by an oil* chamber for maximum motor protection  *In compliance with FDA - Food, Drug Administration - and the annex to G.U. no. 104 of 20/04/73 for oils in contact with food stuffs
• Plug-in type power cable and level control (ßoater) for easy replacement
• Heavy duty over size motor shaft
• Stainless steel water proof capsule to protect the motor
• Motor cooling is guaranteed by the pumped liquid

SPECIFICATIONS

• Capacities up to 14 m³/h at 50Hz / 70 GPM at 60Hz
• Heads up to 11 Bar at 50Hz / 370 feet at 60Hz
• Discharge outlet 11/4" Rp
• Maximum working pressure 15 Bar
• Maximum immersion depth 20 m
• Maximum allowable amount of sand 50 gr/m³
• Maximum solids size up to 2 mm
• Liquid temperature range -5° C to 40° C
• Continuous operation either in vertical or horizontal position
• Motor range: 0,55kW to 3kW
• Asynchronous, Class F insulation, IP 68 protection
• 20 m of power cable type H07RN F is supplied with the standard version
• Maximum number of starts per hour: 20

AVAILABLE OPTIONS

• Single-phase models equipped with level control
• Various voltages and frequencies
• Three phase 220-230V
• Various power cable lengths
