VS 14 - 6" Submersible Pump E-tech Franklin Electric

Features

• Fabricated stainless steel impellers and diffusers for corrosion resistance
• Heavy duty stainless steel structure for improved stiffness and ensuring the permanent alignment of all components and thus increased run time and trouble-free operation
• PTFE floating neck ring, ceramic guide journal sleeve (tungsten-carbide on request) and Nitrile rubber fluted bearing to ensure durability against wear for long-lasting constant performances and product reliability
• Compact, reliable and suited to operate in horizontal position
• Built-in check valve to protect the pump against water hummer risk
• Radial models with double reinforcement rings and mix-flow models longer than 3 m are equipped with tungsten-carbide (widia) upper journal sleeve and with an intermediate tungsten-carbide (widia) journal sleeve plus special intermediate split cone nut
• The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pumping systems more cost effective

Specifications

• Flow: up to 80 m³/h at 50 Hz
• Head: up to 700 m (70 bar) at 50 Hz
• Water temperature:
• Minimum: -5 °C
• Maximum: +60 °C for I (AISI304) version / +90 °C for N (AISI316) and R (904L) versions
• Maximum allowable amount of sand 100 g/m³
• Rotation: counter clockwise when looking into the discharge
• Pump can work continuously in vertical or horizontal position
• Motor adapter in compliance with NEMA standard
• Motors: see section Submersible Motors

Available on request

• Pump material:
• 316 Stainless steel (N) version (DIN/EN 1.4401)
• 904L (R) version (DIN/EN 1.4539)
• See specified material variant in "Materials/Fluids compatibility" table on page 7 in the Product Catalog
• Double cable guard
• Discharge heads:
• Rp 2" and Rp 3" discharge heads for VS 14 and VS 19
• Rp 4" discharge head for VS 30-46-65 I and N versions
• Motor adapter:
• 4" for I and N version
• 8" for I and N version
• Tungsten-carbide guide journal sleeve
• High temperature version (up to 90 °C)
• Bearings bush in FKM

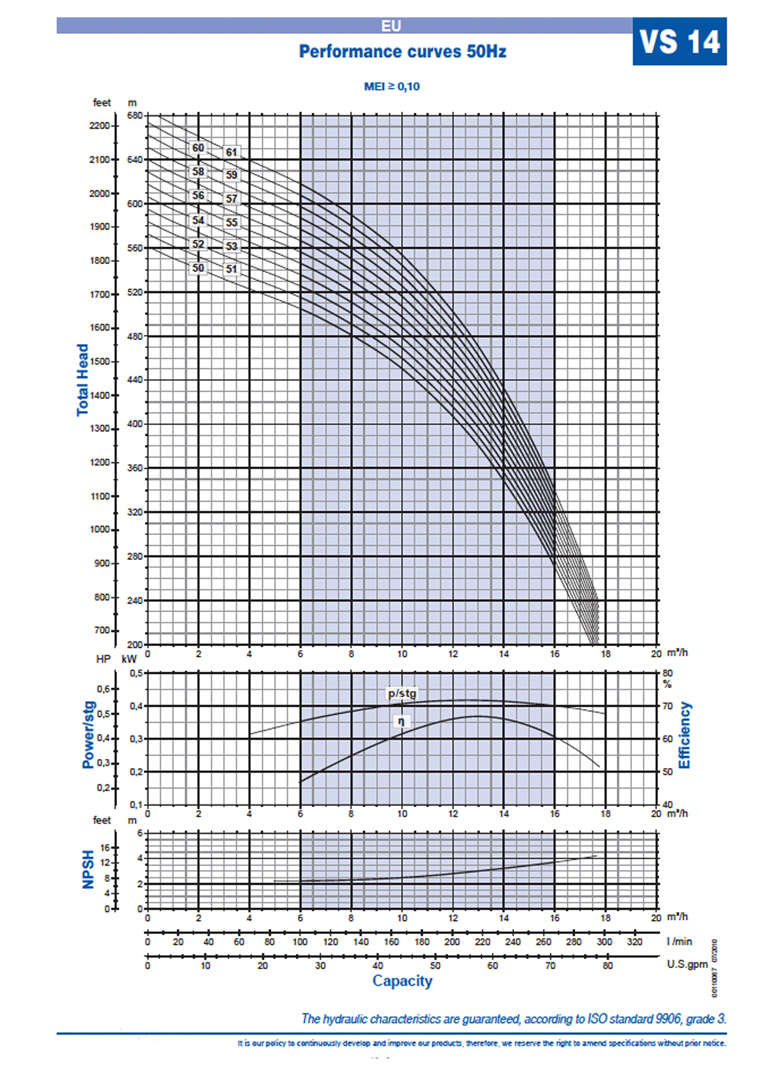

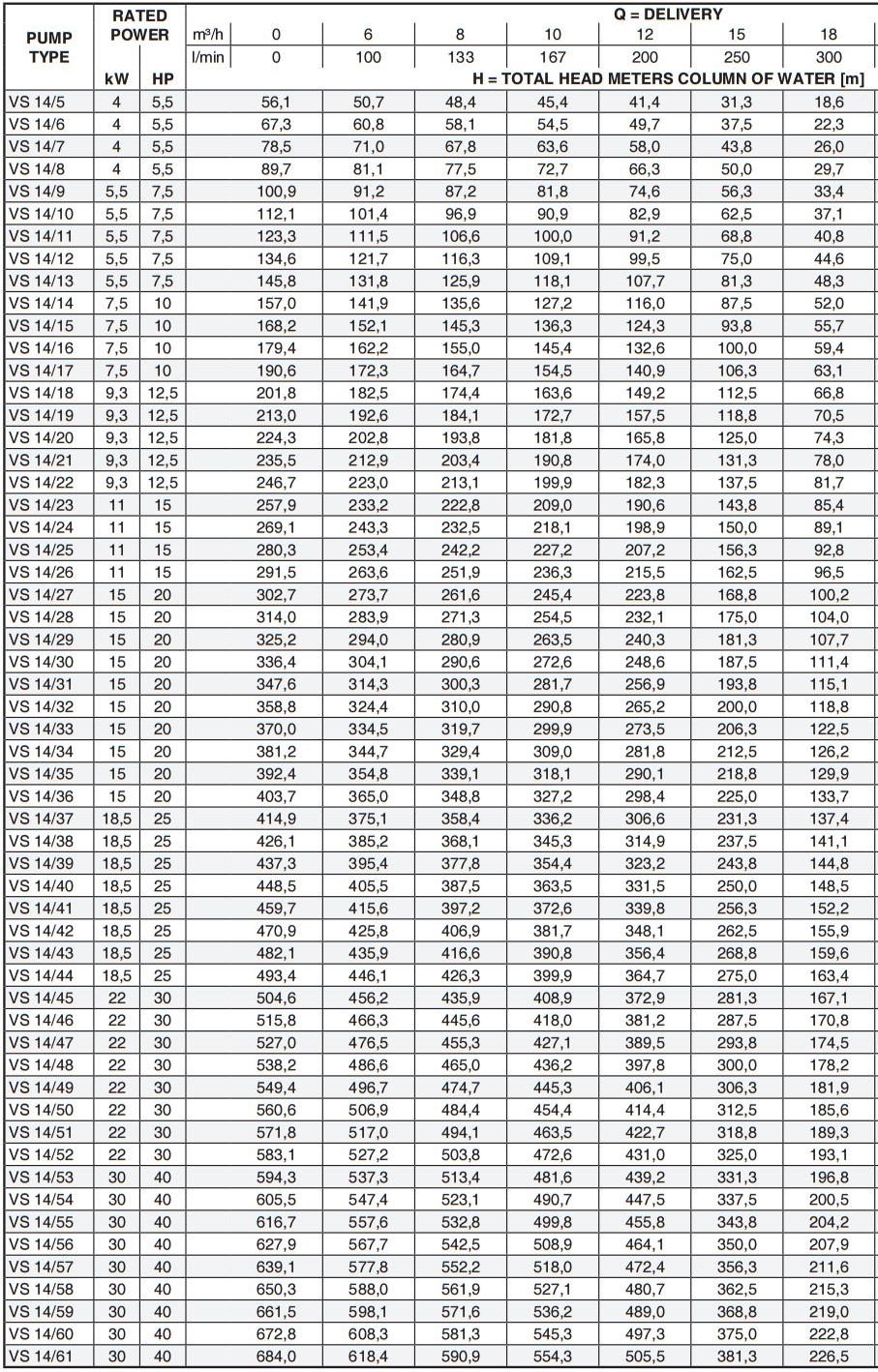

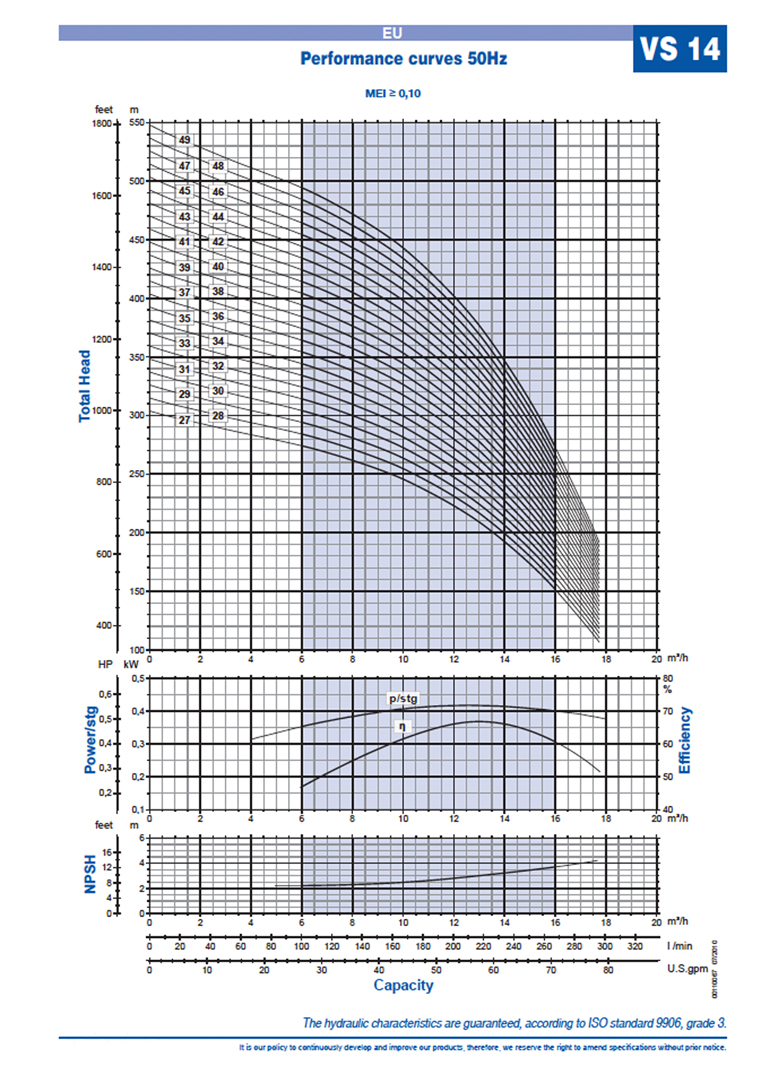

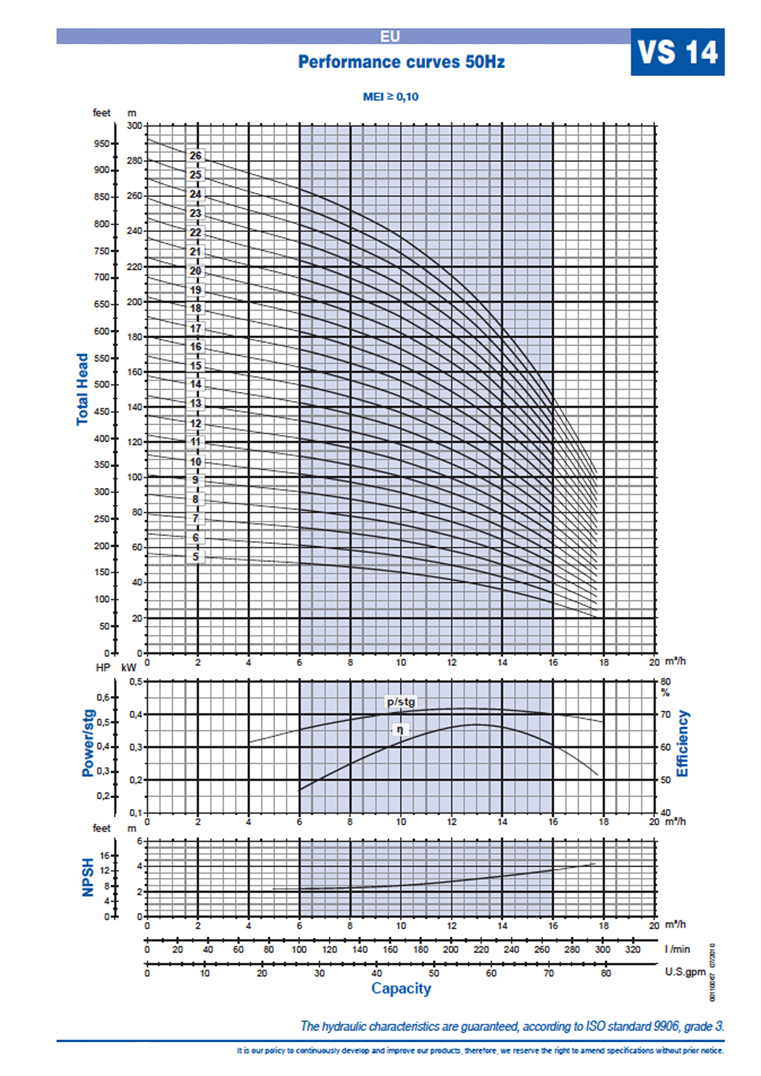

Performance Tables at 50Hz
