LumiCAM

Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

Brand:  Laval Underground Surveys

Laval Underground Surveys

Please contact us if you would like any technical advice or price and availability

Tel: (0)1473 462 046

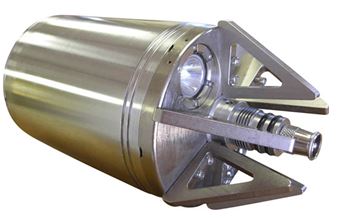

Providing extra lighting capacity is important when water turbid/cloudy or when the well/borehole diameter demands additional lighting capability. Easily installed onto the DC5150 Dual-CAM, this versatile accessory may also serve other cameras for added viewing potential and expanded application usage. Its two HID (High Intensity Discharge) lamps generate 3-5  times for effcient lighting (lumens/watt) than comparable tungsten-halogen lamps.

Built into a durable stainless steel housing, the LumiCAM provides a simple plug-in connection for the camera and cablehead, fitting tightly onto the camera for easy handling. Its compact size allows it to fit into wells, boreholes or verticle shafts as small as 6 inches ID, while providing illumination for holes or shafts as large as 36-72 inches (915-1220mm) or more.

Able to operate in water ot air condtions, the LumiCAM uses no filament, making it more durable and longer-lasting than other lamps. It is rated for use to submerged depths of up to 5,000 feet (1,500 meters).

  • Housing Construction: Electro-polished stainless steel
  • Diameter: 5.65 inches (144mm)
  • Length: 13.85 inches (352mm)
  • Weigth: 34 Ibs (15.4kg)
  • Lens: Sapphire
  • Depth Rating: 5,000 feet (1,500 meters)
  • Power Requirement: Operates from standard Laval control unit
Quote Required?
Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
