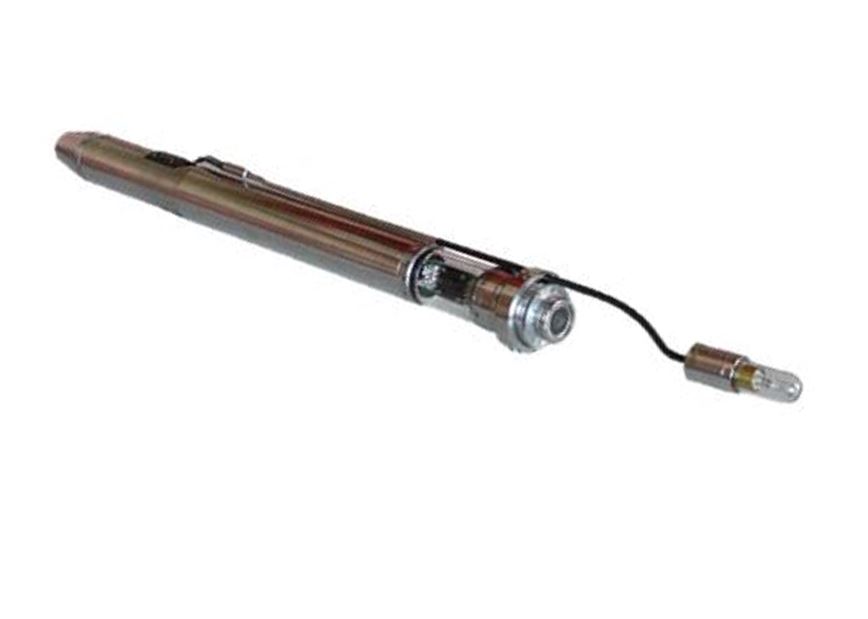

DC5150 Downhole Camera

Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

Brand:  Laval Underground Surveys

Laval Underground Surveys

Key specifications;

  • Camera diameter: 2.35" (60mm) O.D.
  • Overall camera length: 24.25" (660mm)
  • Housing: Stainless steel
  • lens: Scratch-proof sapphire glass viewing port
  • Total camera weight: under 14 Ibs (6.5kg)
  • Pressure rating: pressure tested and waterproof to 2,500 psi
  • Camera connector: Water bolcked; LUS cablehead with UHF coaxial cable
  • Operating temperature: 0° to 65°C (32° to 150°F)

The Laval DC5150 Downhole Camera provides a comprehensive, detailed survey of water wells, boreholes, underground storage tanks and mine shafts measuring 3"-30" in diameter to depths of 5,000 feet (1524 meters). In addition to the standard downhole view, it offers a side-view perspective with continuous 360° rotation and no external parts.

Suited for the groundwater industry, gas oil and mining companies, public work officials, miners environmentalists and remediation site, helping pinpoint problems in water wells.

  • Provides sharp colour images with two lenses
  • Specially designed long-life L.E.D. lighting
  • Easily retrofit to single conductor video inspection systems
  • Standardised cablehead allows interchangeable use of Laval cameras
  • Slimmer design, lightweight and easy to handle
  • Suitable for high temperature environments
  • Sealed housing prevents condensation and water intrusion
  • Joystick control for easy operation and full function, one-hand operator control
  • Camera diameter: 2.35" (60mm) O.D.
  • Overall camera length: 24.25" (660mm)
  • Housing: Stainless steel
  • lens: Scratch-proof sapphire glass viewing port
  • Power requirements: 100-200 volts DC at 50 watts (at maximum brightness)
  • Total camera weight: under 14 Ibs (6.5kg)
  • Pressure rating: pressure tested and waterproof to 2,500 psi
  • Camera connector: Water bolcked; LUS cablehead with UHF coaxial cable
  • Scanning system: 525 line, 60Hz NTSC or 625 line, 50hz PAL standard
  • Operating temperature: 0° to 65°C (32° to 150°F)
  • remote functions: Camera view (select downhole or side-view); Rotation (clockwise or counter-clockwise); Fully adjustable lighting.

Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *

You will receive emails on our latest news, products and services, please see our privacy policy for more information.
 *
Please add the two numbers

INSTRUCTIONS WHEN RETURNING CAMERAS OR SYSTEMS FOR SERVICE / REPAIR

Please read and complete the information below so we can review your returns enquiry.

Please provide as much information about the faults encountered and the events that lead up to them so that our Technician can make the repair evaluation. If no fault description is provided or there is insufficient information then delays may be incurred with the work.

It is important that the fault description is enclosed even if we have been previously informed.

Note: Be sure to save any videos before sending your equipment to Geoquip. Any data may be lost during the service procedure, we are not responsible for any loss of data.

GOODS MUST BE APPROPRIATELY PACKED. ON RECEIPT THEY WOULD BE CHECKED FOR DAMAGE.

Goods from UK

Goods from EU / Overseas

Return collection (if required)

Geoquip can arrange for the collection of the equipment.

A charge in accordance with our standard carriage charges would be added to the repair invoice.


If you send goods from outside the European Union a Proforma
invoice must accompany the goods.

Required information on invoice.

  • Type of instrument
  • Serial number
  • The text “Goods for repair—temporary importation to UK”
  • Suitable value of goods (see below)

The following information should be included on the commercial invoice when any camera components or systems are returned for repair.

Return and Repair to Manufacturer CPC Code - 21 00 004

Commodity code: 90158020

Value for Insurance Purposes Only - Use a value of £20.00 / €20.00 / US$20.00 per item.

Each delivery is charged by fees such as:

  • Terminal fee
  • Customs declaration
  • Transport from the port to Geoquip Service location
  • Forwarder’s administration at cost

Please Note that these ALL FEES incurred will be invoiced at cost
+ 10%


Min 1 HOUR “Troubleshooting & Handling” fee will be charged to all service orders.
Hourly technician fee available on request (Hourly rate subject to change without notice)




Return address: Geoquip Water Solutions Ltd,
Unit 7 Sovereign Centre,
Farthing Road Industrial Estate,
Ipswich, Suffolk,
IP1 5AP, UK
Tel: +44(0)1473 462046



PLEASE COMPLETE ALL THE FIELDS BELOW SO WE HAVE ALL THE RELEVENT INFORMATION TO REVIEW YOUR RETURNS ENQUIRY, THANK YOU.

 *
 *
 *
 *
 *
 *
 *
 *
Approx. Date if possible










Please specify further



 *
Use the serial number located on the camera body


 *
Use the number printed on the control unit
 *
Images or videos of your equipment:
Please attach images or videos if you think this will assist us with your repair (NOTE! If more than one file please send attachments in ZIP folder)
 *
Please add the two numbers
