StarDelta 1 Electronic Control PanelStarDelta 1 Electronic Control Panel

Part Number:  QTSE10/8A-T
Brand:  Maniero



Discontinued product

Alternative panels;

Star Delta

Please contact us if you would like to discuss our alternative products.

QTSE three phase electromechanical control panel for one up to three electric pumps (or motors), with star delta start.

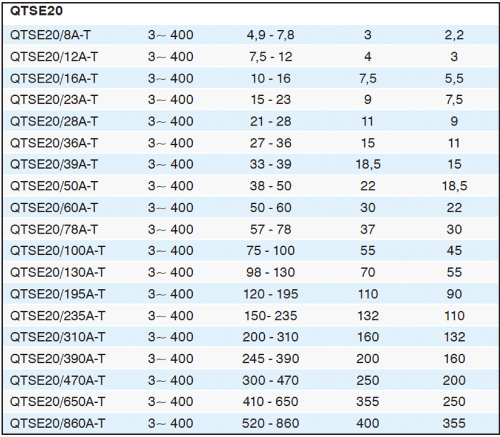

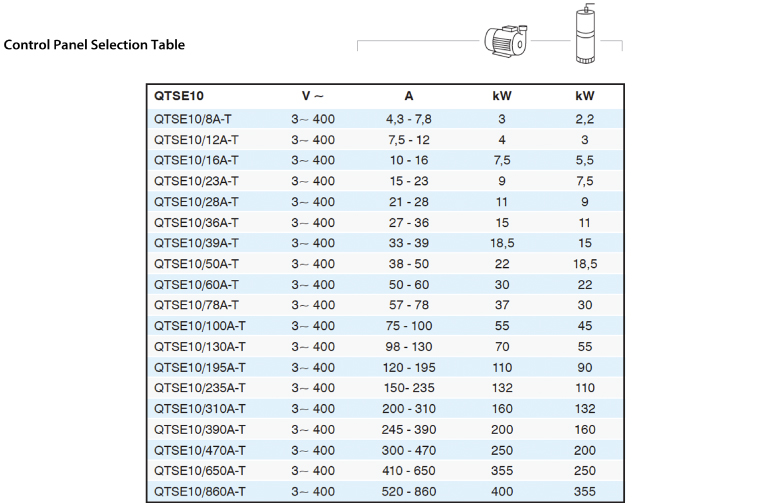

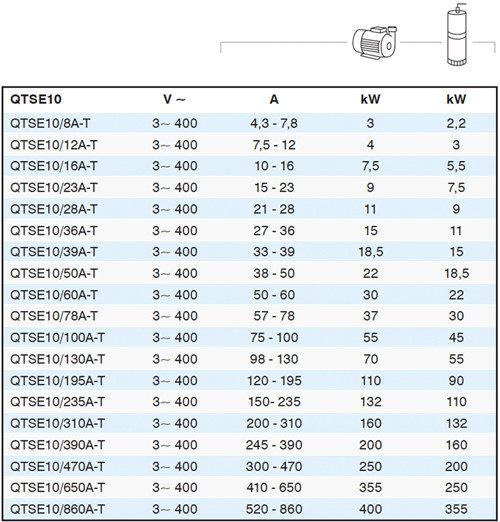

Control Panel Selection Table

Control Panel Selection Table

Control Panel Selection Table

Electromechanical control panel with thermal protection against motor overload, contactor for motor start and selectable self hold (excludable by selector).

It is suitable for surface pumps, submerged pumps (without probes) and motors in general, with power range between 2,2 kW and 400 kW (please download the data sheet to learn more about all the available sizes and features). It can be used for emptying (drainage), filling or pressurization.

Electric control panel with thermoplastic or metallic case (according to the model size) and IP55 protection degree.

Inputs and outputs

  • N. 2 (QTSE10) or 3 (QTSE20) or 4 (QTSE30) inputs for floats or pressure switches;

Functions

  • Adjustable start timer;
  • Command with selector and LEDs ø 22mm;
  • Main disconnecting switch with door lock;

Protections

  • Thermal relay protection against motor overload;
  • Auxiliary circuit and motor protection fuses;
  • 24 Vac auxiliary contacts from safety transformer;
  • Very low voltage inputs;

QTSE10 optional features

MCL – Electronic module for level control with 3 probes (probes not included);
SVA - Voltmeter + Voltmeter switch + Ammeter;
ALC24 – N.O. alarm output + 24Vac output;
CO – Run hour meter;
RCSFA – Voltage control module, phases presence and phases sequence;
PMA – Start/stop button in MANUAL mode;
SMF – Multifunction device (V, A, W, phase sequence);
TRAA – Power start on-delay timer;

QTSE20 and QTSE30 optional features

SCB – Pumps start exchanger;
SVA – Voltmeter + Voltmeter switch + N. 2 (QTSE20) or N. 3 (QTSE30) Ammeters;

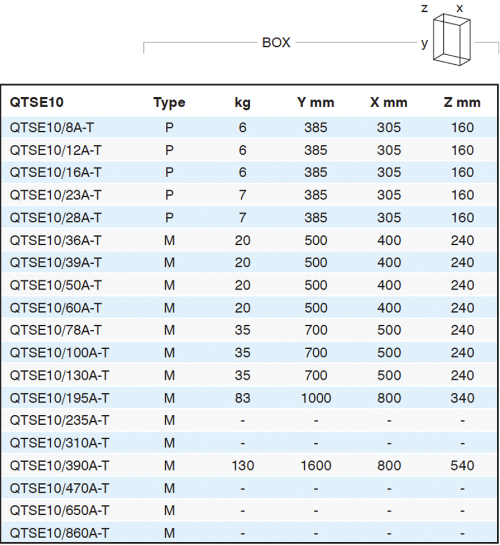

Dimensions & Weights

Dimensions & Weights

Dimensions & Weights

Dimensions & Weights

Circuit Diagrams

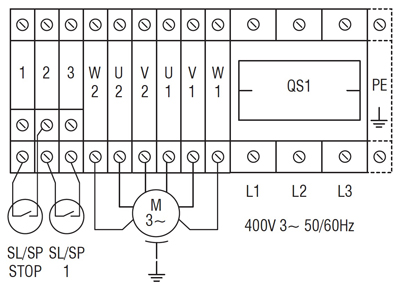

QTSE10

Dimensions & Weights

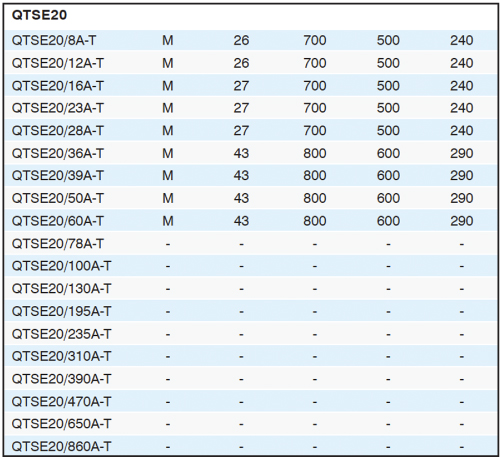

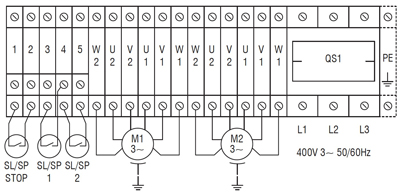

QTSE20

Dimensions & Weights

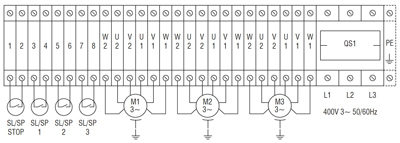

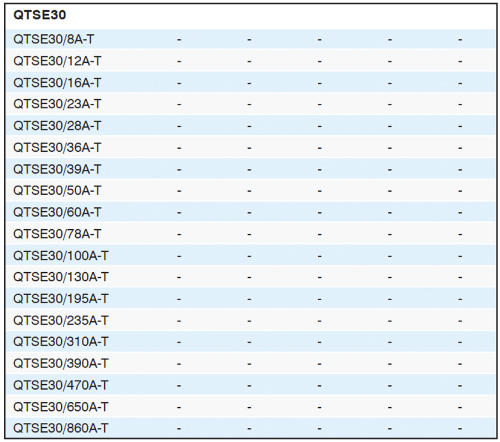

QTSE30

Dimensions & Weights

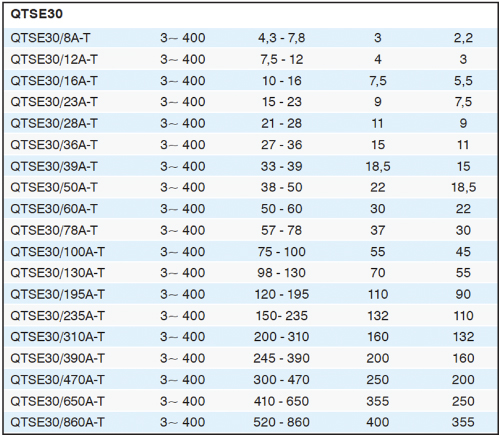

Electrical Data

Dimensions & Weights

Dimensions & Weights

Dimensions & Weights


Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
