EDV Three phase Drainage Pump for Dirty Water

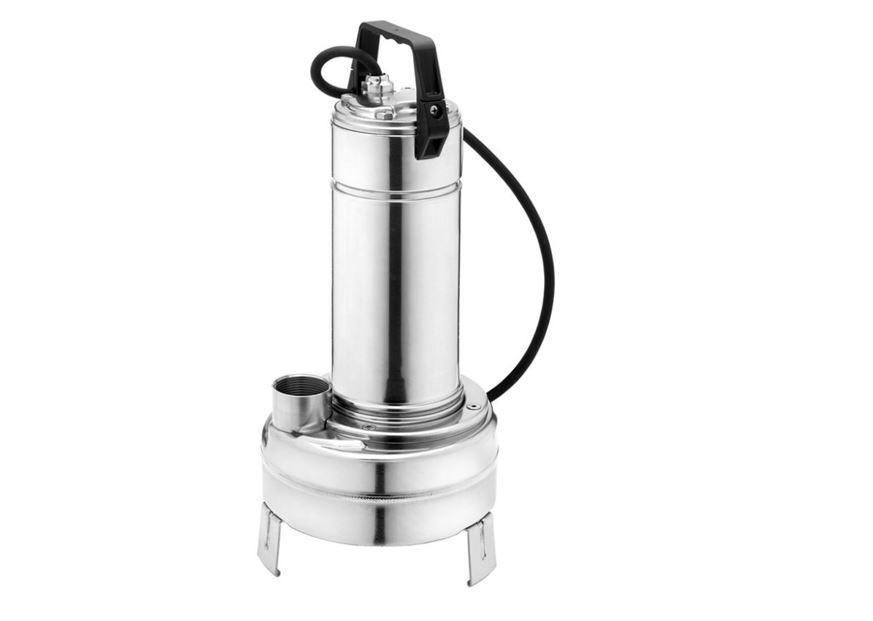

Franklin Electric E-tech EDV Three Phase Stainless steel Drainage submersible pumps for dirty water.

Construction

• Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port
• ED: with two-passage impeller
• EDV: with free-flow (vortex) impeller
• Double shaft seal with interposed oil chamber

Applications

• For clean and dirty water, also containing solids up to 35 mm grain size
• The EDV free-flow impeller construction is particularly suitable for liquids with a high solid content or with filamentous particles
• This construction (with smooth surfaces in rolled-stainless steel and easy access for cleaning) is also suitable for certain uses in the food industry

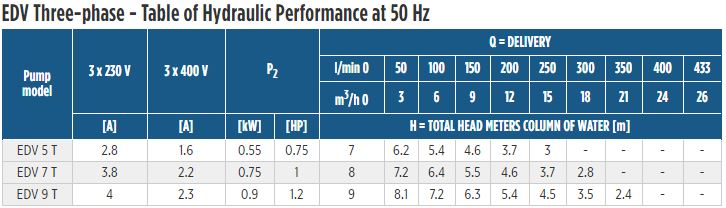

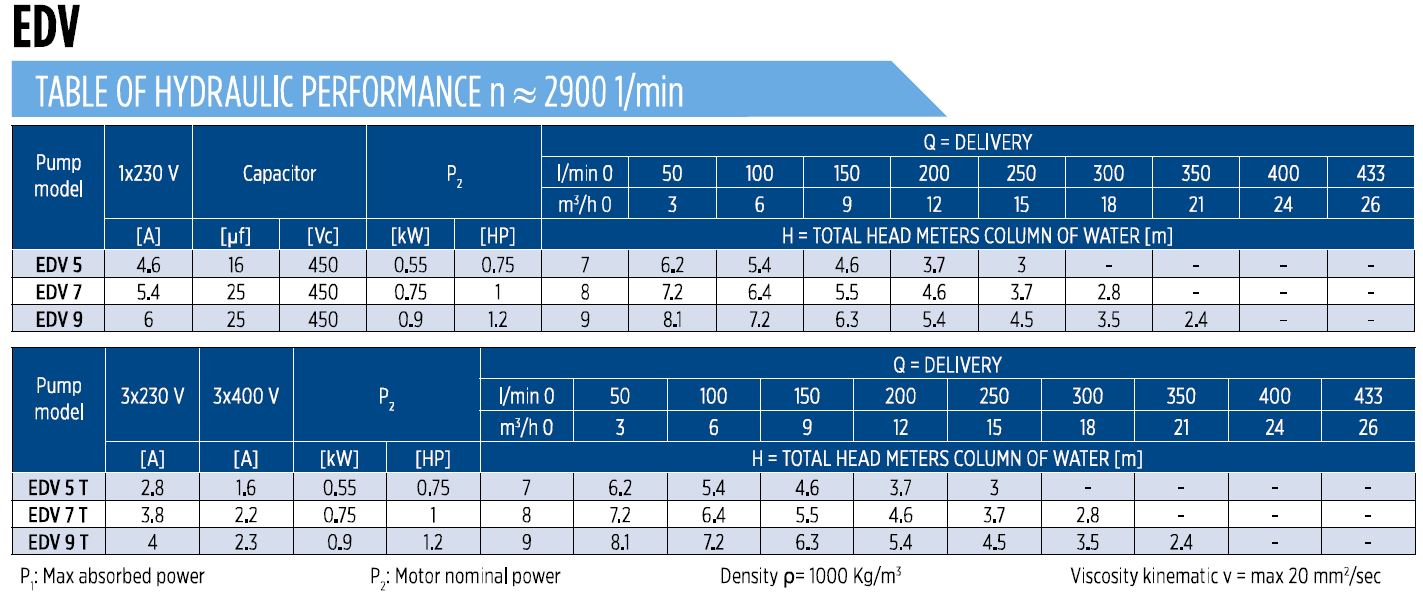

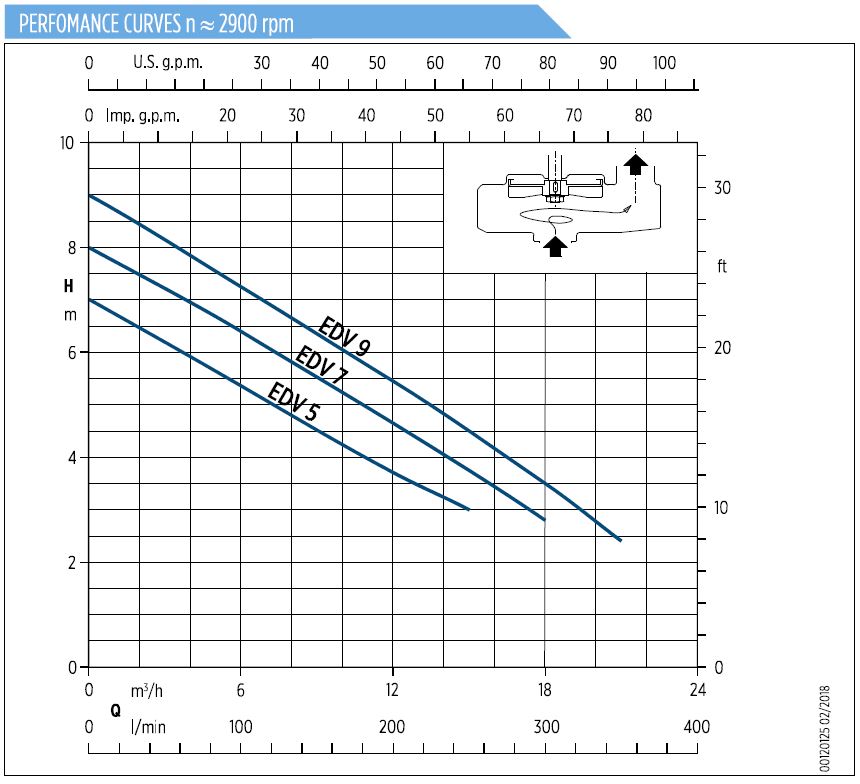

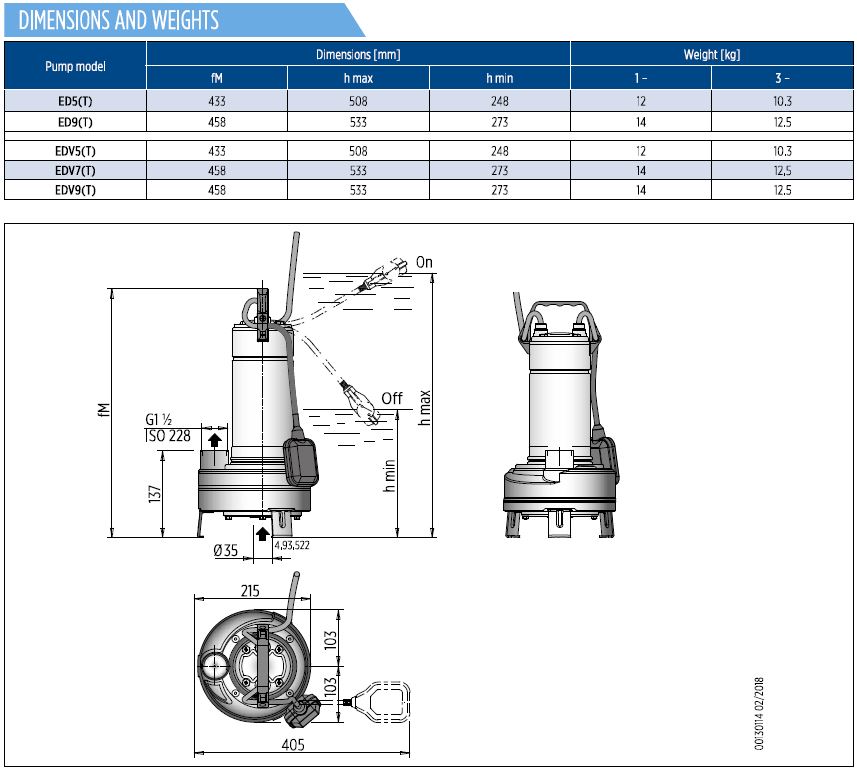

Operating conditions

• Liquid temperature up to 35 °C
• Maximum immersion depth: 5 m
• Minimum immersion depth: 248 mm
• Continuous duty (with submerged motor)

Motor Specifications (ED and EDV Series Range)

• 2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
• ED, EDV:
• Single-phase 230 V ± 10 %, with level switch and thermal protector
• Incorporated capacitor
• Cable: H07Rn-F, 3G1 mm2, length 10 m, with plug CeI-UneL 47166; 5 m for ED5/EDV5
• EDT, EDVT:
• Three-phase 230 V ± 10 %; 3-phase 400 V ± 10 %
• Cable: H07Rn-F, 4G1 mm2, length 10 m, without plug; 5 m for ED5T/EDV5T
• Insulation class F
• Protection IpX8 (for continuous immersion)
• Triple impregnation humidity-proof dry winding
• Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41

Available on request

• Other voltages
• Frequency 60 Hz
• Other mechanical seal
• Cable length 20 m
• Motor suitable for operation with frequency converter
• Three-phase pumps with incorporated float switch
