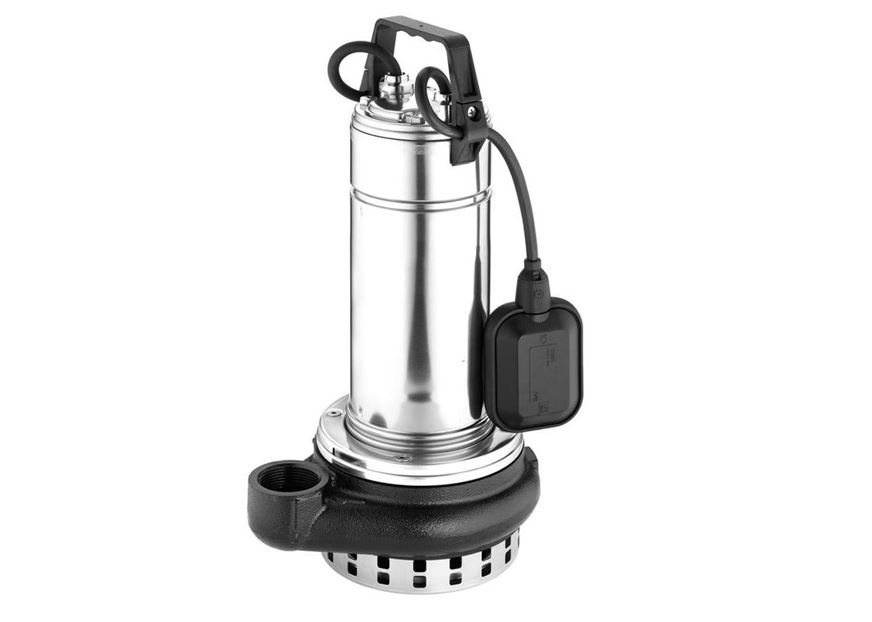

EGN Three phase Drainage Pump for Clean Water

Franklin Electric E-tech EGN Series Three Phase Stainless steel Drainage submersible pumps for clean water.

Construction

• Single-impeller submersible drainage pump, with open impeller with vertical threaded delivery port (G 1 1/2)
• Double mechanical shaft seal with interposed oil chamber, to protect against dry-running

Applications

• For clean containing solids up to 10 mm grain size
• For draining rooms or or emptying tanks
• Extraction of water from ponds, streams or pits and for rainwater collection

Operating Conditions

• Liquid temperature: up to 35 °C
• Maximum immersion depth: 5 m
• Minimum immersion depth: 205 mm
• Continuous duty (with submerged motor)

Motor Specification (EGN Single and Three Phase)

• 2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
• EGNT:
• Three-phase 230 V ± 10 %; Three-phase 400 V ± 10 %
• Cable: H07Rn-F, 4G1 mm², length 10 m, without plug
• EGN:
• Single-phase 230 V ± 10 %, with float switch and thermal protector
• Incorporated capacitor
• Cable: H07Rn-F, 3G1 mm2, length 10 m, with plug CeI-UneL 47166
• Insulation class F
• Protection Ip X8 (for continuous immersion)
• Triple impregnation humidity-proof dry winding
• Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41

Available on Request

• Other voltages
• Frequency 60 Hz
• Other mechanical seal
• Cable length 20 m
• Vertical magnetic float switch
• Motor suitable for operation with frequency converter
• Three-phase pumps with incorporated float switch
