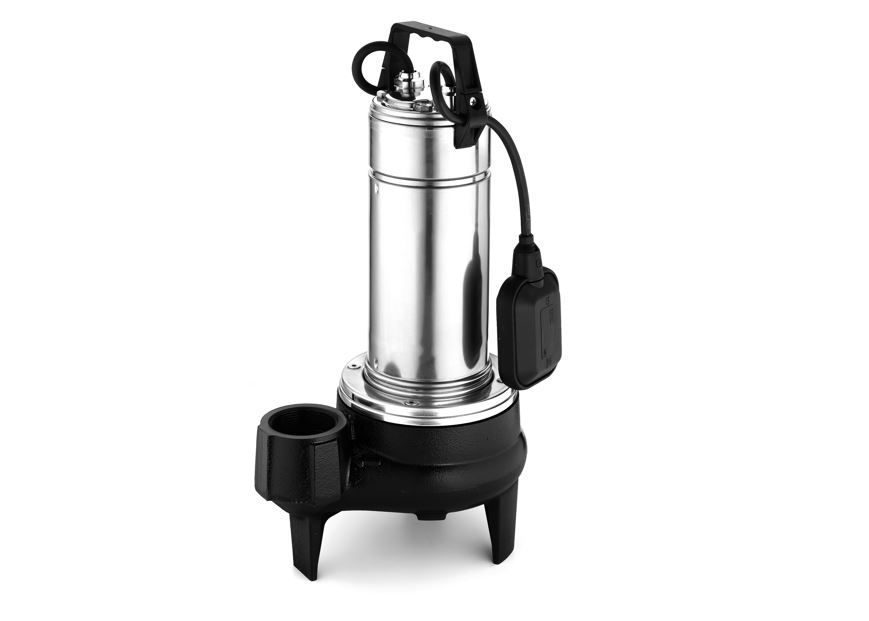

EGT Single phase Drainage Pump for Dirty Water

Franklin Electric E-tech EGT Series with vertical threaded delivery port G2", Single Phase Drainage submersible pumps for dirty water.

Construction

• Single-impeller submersible pumps, with free-flow (vortex) impeller
• EGT: with vertical threaded delivery port (G 2”)
• EGF: with horizontal flanged and threaded delivery port (DN 50 - G 2”)
• Double mechanical shaft seal with interposed oil chamber, to protect against dry-running

Applications

• For domestic or industrial waste water, dirty water with solids up to 50 mm grain size, for liquids which are compatible with the pump materials
• For draining rooms or emptying tanks
• Extraction of water from ponds, streams or pits and for rainwater collection

Operating conditions

• Liquid temperature: up to 35 °C
• PH value: 6-11
• Maximum immersion depth: 5 m
• Minimum immersion depth: 275 mm
• Continuous duty (with submerged motor)

Motor specification (EGT and EGF Series Ranges)

• 2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
• EGT/EGF:
• Single-phase 230 V ± 10 %, with float switch and thermal protector
• Incorporated capacitor
• Cable: H07Rn-F, 3G1 mm2, length 10 m, with plug CeI-UneL 47166
• EGT...T/EGF...T:
• Three-phase 230 V ± 10 %; Three-phase 400 V ± 10 %
• Cable: H07Rn-F, 4G1 mm², length 10 m, without plug
• Insulation class F
• Protection Ip X8 (for continuous immersion)
• Triple impregnation humidity-proof dry winding
• Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41

Available on request

• Other voltages
• Frequency 60 Hz
• Other mechanical seal
• Cable length 20 m
• Motor suitable for operation with frequency converter
• 3-phase pumps with incorporated float switch
