EH 5 Horizontal Multistage Pump E-tech Franklin Electric

CALL US: +44(0)1473 462046
Part Number
EH 5/2 E0 / ETH11052415
Brand
Franklin Electric E-tech
+

E-tech EH 5, multi-stage booster pump is designed to meet your pressure boosting needs. The stainless steel construction offers high performance in a wide variety of applications. The EH Series is offered in five flow rates and different horsepower sizes in 1-phase or 3-phase to make sure you have the right pump to fit your application.

WRAS approved

Franklin Electric E-tech
Information

E-tech EH 5, multi-stage booster pump is designed to meet your pressure boosting needs. The stainless steel construction offers high performance in a wide variety of applications such as domestic fire sprinklers. The EH Series is offered in five flow rates and different horsepower sizes in 1-phase or 3-phase to make sure you have the right pump to fit your application.

Features

  • Compact close-coupled design, robust and rust resistant
  • Superior efficiency and performances
  • Flexible application base plate
  • Floating neck ring in PTFE/PPS
  • Heavy duty oversize motor shaft
  • Impellers and diffusers are made of stainless steel in order to achieve durability
  • Easy maintenance
  • Strong and leak proof motor ball bearing fitted in the motor
  • Pumping of clear non-loaded fluids
  • Mechanical seal:
  • EH3-5-9: Carbon / Ceramic / EPDM
  • EH15-20: Carbon / Silicon Carbise (SiC) / EPDM

Pump Specifications

  • Capacities:
  • up to 29 m³/h at 50Hz
  • up to 35 m³/h at 60Hz
  • Heads: up to 104 m at 50Hz and 60Hz
  • Connections: Rp threaded for inlet and outlet
  • Maximum working pressure 10 Bar
  • Maximum allowable amount of sand 50 g/m³
  • Maximum ambient temperature 40°C
  • Liquid temperature range:
  • Minimum: from -15°C to -10°C according to gasket material
  • Maximum: +90°C for domestic use (uses covered by CEI EN standard 60335-2-41); +110°C only for industrial use (uses other than those covered by CEI EN standard 60335-2-41)
  • The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B

Motor Specifications

  • Single-phase and Three-phase motor efficiency class IE2 or IE3
  • Asynchronous, TEFC (Totally Enclosed, Fan-Cooled)
  • 2 pole
  • IP55 protection motor, Insulation class F
  • Standard voltage
  • Single-phase: 220-240 V ± 5 %. Thermal protection built into the motor.
  • 220-240 V ± 5 % at 50Hz. Thermal protection built into the motor.
  • 220-230 V ± 5 % at 60Hz. Thermal protection built into the motor.
  • Three-phase:
  • 220-240 / 380-415V ± 5 % up to 3kW at 50Hz. Thermal protection to be provide into the starter panel by the installer.
  • 380-415 / 660-690V ± 5 % from 4kW at 50Hz. Thermal protection to be provide into the starter panel by the installer.
  • 220-230 / 380-400 V ± 5 % up to 3kWat 60Hz. Thermal protection to be provide into the starter panel by the installer.
  • Starts per hour:
  • for motor power up to 3kW the allowed starts are 60. Waiting time between two consecutive starts 1 minute.
  • for motor power from 4kW the allowed starts are 30. Waiting time between two consecutive starts 2 minutes.

Applications

  • Small domestic / industrial systems
  • Domestic water supply
  • Water distribution / pressure boosting
  • Irrigation / gardening
  • Sprinklers / Fire sprinklers/ Domestic fire sprinklers
  • Rainwater recovery
  • wash down unit
  • Cooling and chilling / heating and conditioning systems
Technical

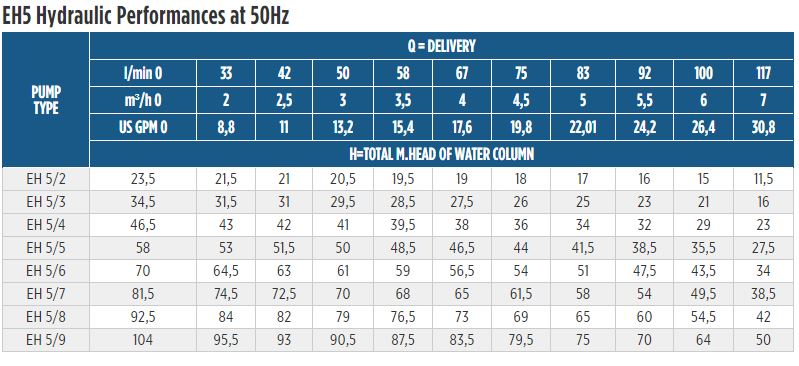

EH Horizontal multistage pump Curves

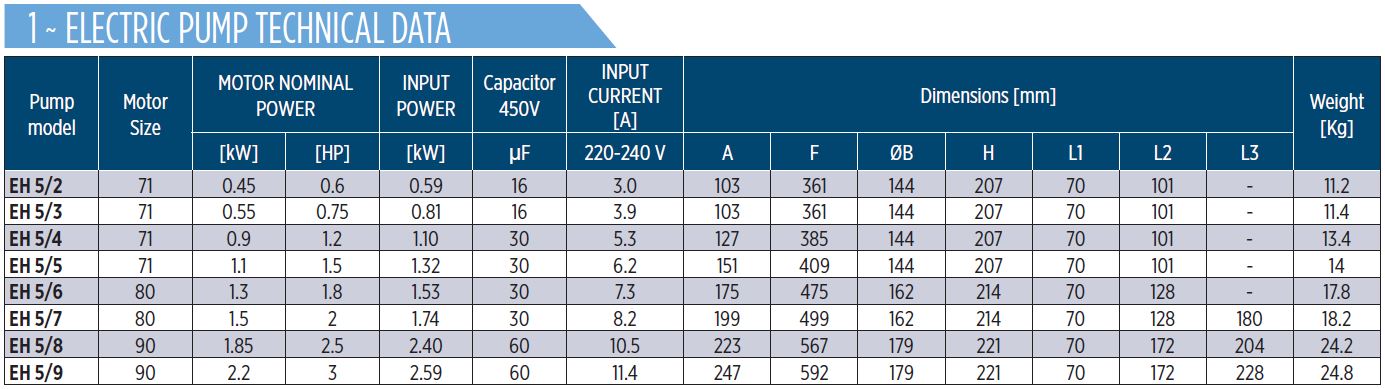

EH5 Horizontal multistage pump Dimension Table Single Phase

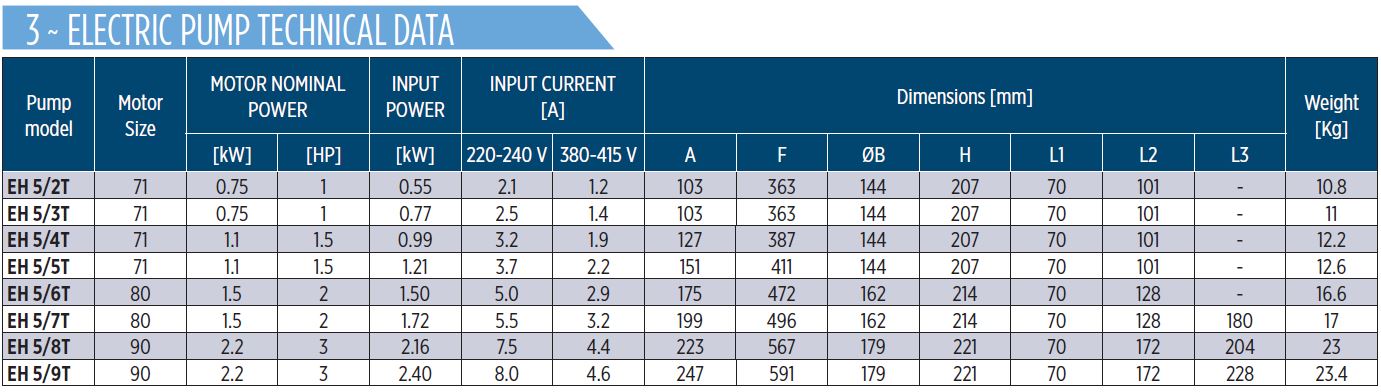

EH5 Horizontal multistage pump Dimension Table Three Phase

EH5 Horizontal multistage pump Dimensions



Downloads
Product and technical Sheets

Product and technical Sheets  Click here to download

WRAS Certificate

WRAS Certificate click here to download
