FNE Bare Shaft Pumps E-tech Franklin Electric

Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

Brand:  Franklin Electric E-tech

Franklin Electric E-tech

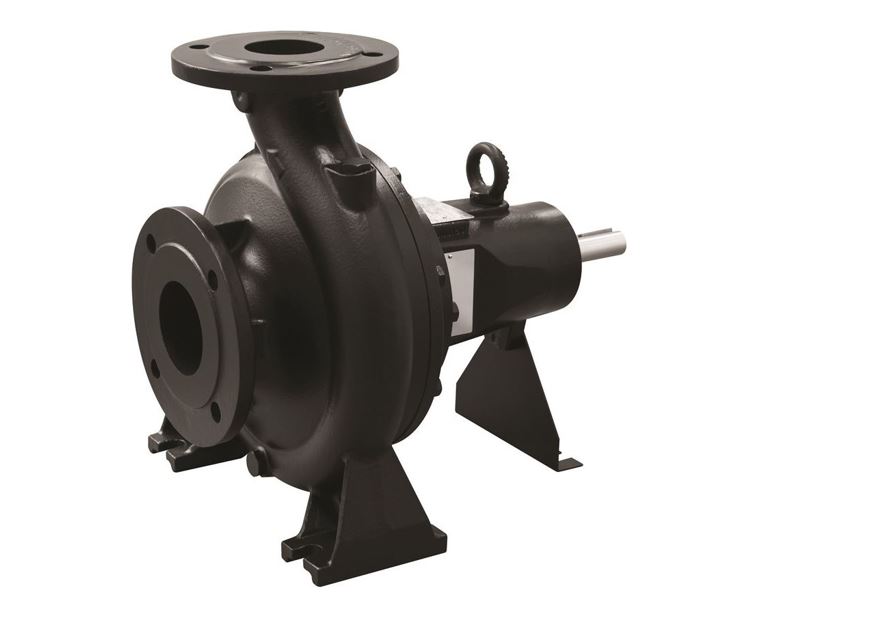

Franklin Electric E-tech Bare shaft version suitable to be coupled with a standard electric motor.

Franklin Electric E-tech Bare shaft version suitable to be coupled with a standard electric motor

Pump specification

  • Flow: up to 240 m³/h at 50 Hz
  • Head: up to 100 m at 50 Hz
  • Maximum liquid temperature:
  • up to 90 °C for domestic use
  • up to 120 °C for industrial use
  • Standard reference:
  • ErP 547/2012 (MEI > 0,4)
  • UNI EN 733 (DIN 24255)

Materials and building features

  • Pump body / Mechanical seal housing / Motor bracket: Cast-iron GG20 with anti-corrosive coating
  • Suction/delivery ports: according to standard EN1092-2
  • Impeller: Cast-iron GG20 with cataphoresis coating
  • Pump shaft: Stainless steel AISI 304
  • Mechanical seal: Carbon / Ceramic / NBR

On request

  • Version with motor, coupling and base



Product and technical Sheets

  Click here to download
