High Efficiency Pump Solar System 10 inch E-tech Franklin Electric

10" REW PM High Efficiency Solar System

SUPERIOR EFFICIENCY

• Up to 7 % improved motor efficiency* with excellent partial load behaviour (SKU reduction)*
• One-stop shop and perfectly matching components guarantee first-class performance/efficiency
• Less panels, more water respectively
• Solar drive available in IP00 enclosure rating
• AC and DC power source compatible
• MVPT algorithm maximizes system performance
• Power factor corrected input (No power compensation needed)
• Significant lower motor heat rise (Increased lifetime)
• Easy system set-up due tailored pre-settings, user interface and own Franklin Electric software
• Communication ModBus (RS485 and Ethernet)

INCREASED LIFETIME

• Incorporated Soft start and protection features (no additonal investment)
• Speed control (Optimum aggregate operation - pump matches system any time)

FULLY SUPPORTED

• Fully supported by the Technical Support Professionals
• Easy system commissioning due to integrated start-up wizard with tailored pre settings.

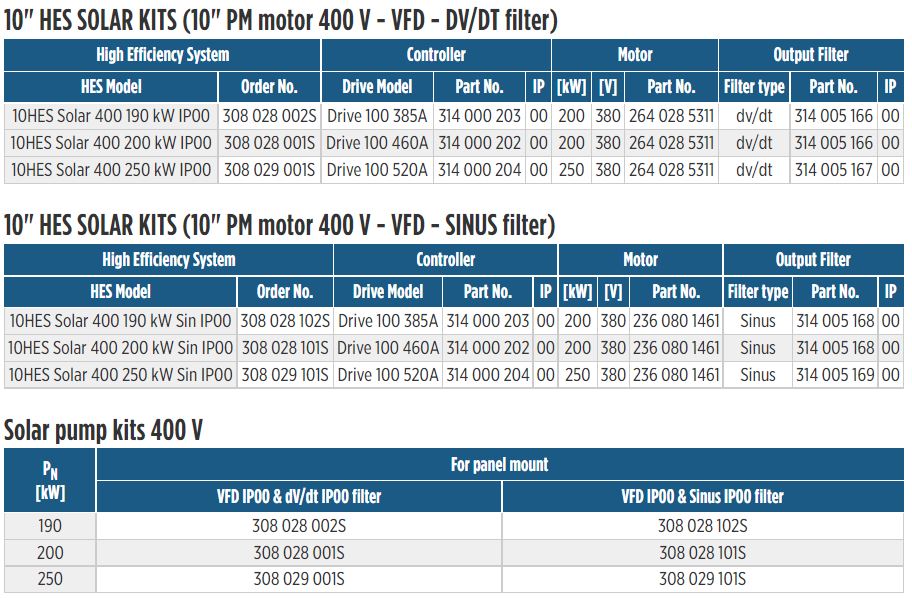

Solar system package

Direct DC feeding, AC and DC power source compatible
Suitable for the use in remote areas and harsh environments without grid supply
Robust Electronics enclosure designs

• 10" rewindable synchronous submersible motor
• Variable frequency drive
• Matching output filter
• Flow switch (Solar systems)

SPECIFICATION:

• Motor range:
• 190 - 250 kW (100 Hz - 3000 rpm)
• 230 - 290 kW (120 Hz - 3600 rpm)
• System Power Supply: 400 - 800 V (min. starting voltage 440 V)
• Frequency: 30 - fN
• Nominal ambient temperature: motor: 30 °C, electronics: 50 °C (> 40 °C with derating)
• Motors installation orientation: Vertical / horizontal (shaft end heightened) - 250kW motors may not be installed horizontally
• Protection:
• motor: IP68, insulation class Y
• drive: IP00
• filter: IP00
• *In comparison to current asynchronous technology
