High Efficiency Pump System 10 inch E-tech Franklin Electric

Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

Brand:  Franklin Electric E-tech

Franklin Electric E-tech

System package with energy savings up to 7 %*

Franklin Electric E-tech High Efficiency Submersible Borehole Systems (HES) rewindable synchronous PM. The system consists of an 10" synchronous submersible NEMA motor with associated variable frequency drive and matching output filter.

10" REW PM High Efficiency System

FEATURES & BENEFITS:

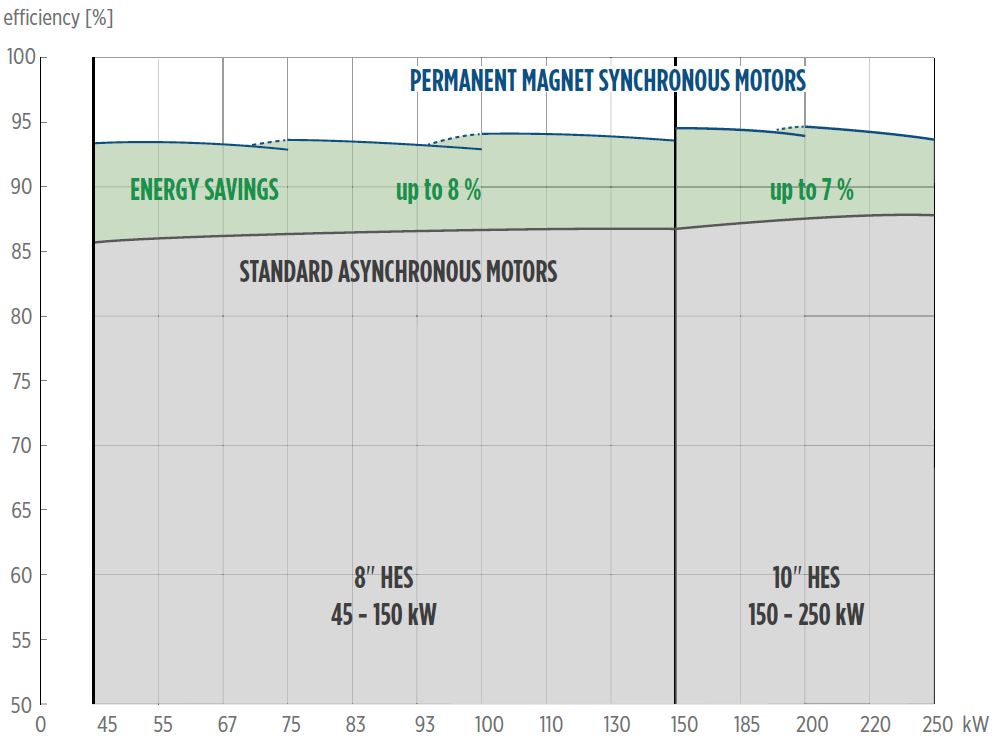

  • Up to 7 % improved motor efficiency* with excellent partial load behaviour (SKU reduction)*
  • One-stop shop and perfectly matching components guarantee first-class performance/efficiency
  • Power factor corrected input (No power compensation needed)
  • Significant lower motor heat rise (Increased lifetime)
  • Easy system set-up due tailored pre-settings, user interface and own Franklin Electric software
  • Communication ModBus (RS485 and Ethernet)

INCREASED LIFETIME

  • Incorporated Soft start and protection features (no additonal investment)
  • Speed control (Optimum aggregate operation - pump matches system any time)

FULLY SUPPORTED

  • Easy system commissioning due to integrated start-up wizard with tailored pre settings.
  • Fully supported by the Technical Support Professionals

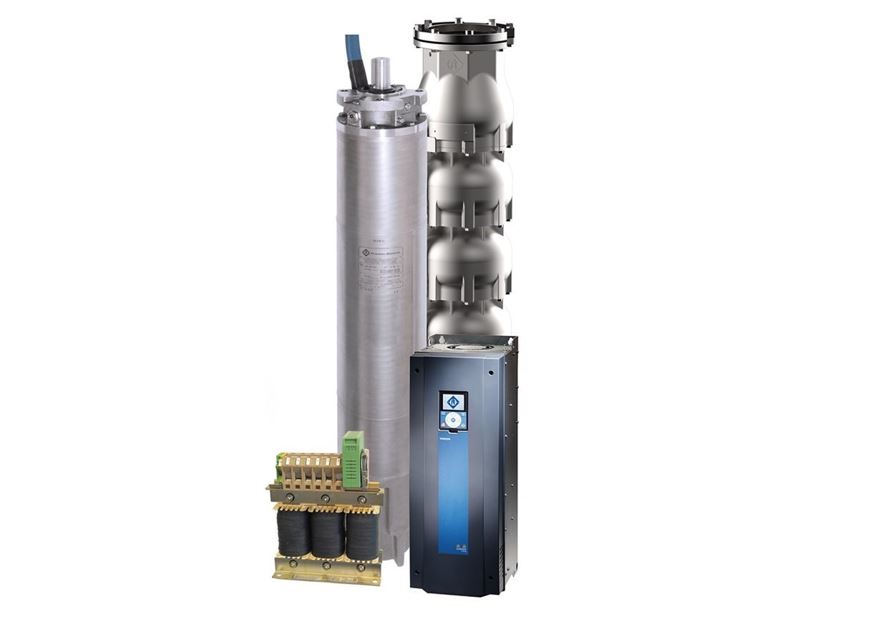

System package with energy savings up to 7 % including:

  • 10" rewindable synchronous submersible motor
  • Variable frequency drive
  • Matching output filter

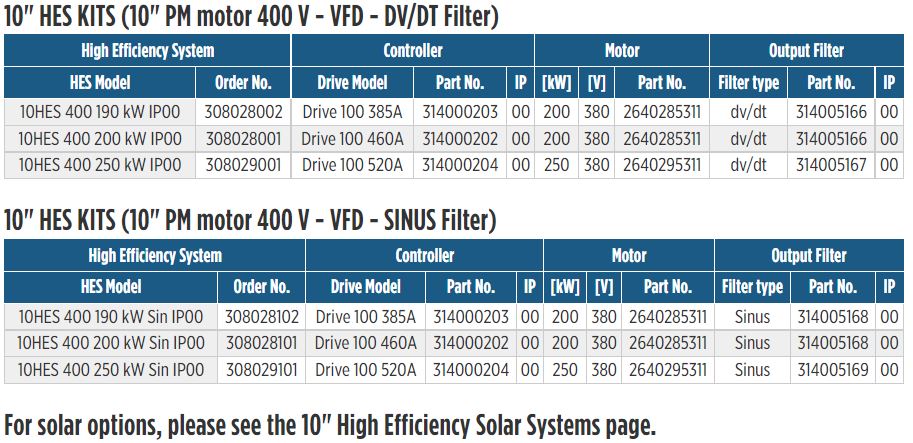

SPECIFICATION:

  • Motor ratings: 00 - 250 kW (100 Hz - 3000 rpm), 230 - 290 kW (120 Hz - 3600 rpm)
  • System Power Supply: 400 V / 460 V ±10 % (50 Hz)
  • System Supply Frequency: 50 Hz - 60 Hz ±2 %
  • Nominal ambient temperature: motor: 30 °C, electronics: 50 °C (> 40 °C with derating)
  • Motors installation orientation: Vertical / horizontal (shaft end heightened) - 250 kW motors may not be installed horizontally
  • MPPT algorithm maximizes system performance
  • Protection:
  • motor: IP68, insulation class Y
  • drive: IP00
  • filter: IP00

OPTIONS:

  • Special Voltages
  • IP54 Electronics
  • Higher-graded material: 316SS, 904L
  • Sinus output filters
  • Retrofitable PT 100 temperature sensor, VFD PT100 Plug-in card necessary (order no. 308 170 202)
  • Plug-in card 6x DI/DO (order no. 308 170 201)
  • Plug-in card PT100 (order no. 308 170 202)
  • Plug-in card 1x AI & 2x AO (order no. 308 170 206)
  • Plug-in card Profibus (order no. 308 170 203)
  • *In comparison to current asynchronous technology

Product catalogue

  Click here to download

HES Flyer

  Click here to download


Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
