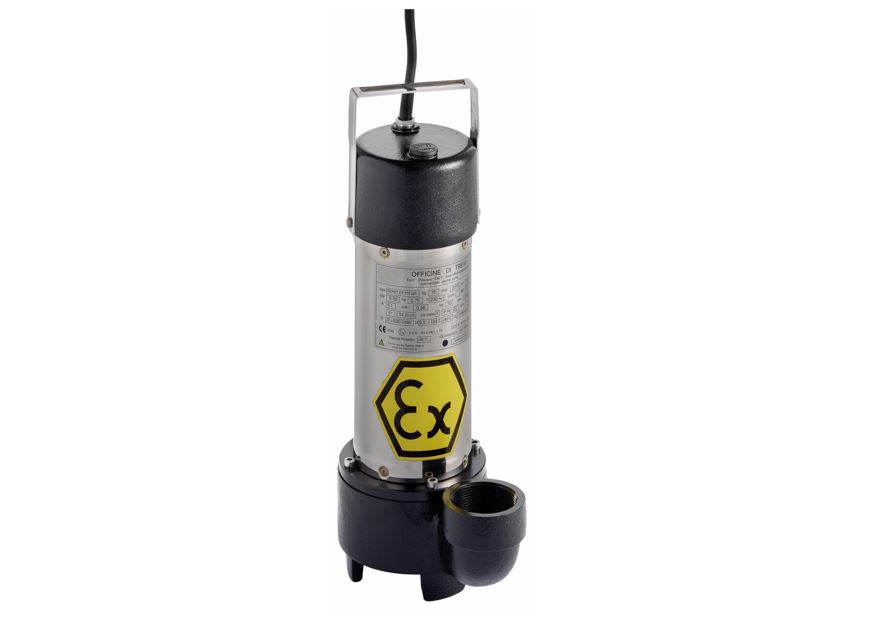

ID Derby EX ATEX Pump Hydrocarbon Version

CALL US: +44(0)1473 462046
Part Number
IDDERBYEX50-1p
Brand
OFT
+

Collecting of leachate in storage tanks, pumping of industrial waste water from wells or collecting resevoirs, extraction of liquids contaminated by hydrocarbons.


OFT Pumps     ATEX Logo      ATEX Marking: CE 0722 Ex II 2G Ex mb h IIC T5 Gb
Max Flow 45m3/hr  Max Head 15m

Information
ID Derby Ex drainer for collecting of leachate in storage tanks, pumping of industrial waste water from wells or collecting resevoirs, extraction of liquids contaminated by hydrocarbons.

The ATEX pumps in conformity with 2014/34/UE Directive can be installed in potentially explosive atmospheres according to the marking explained in the technical details.

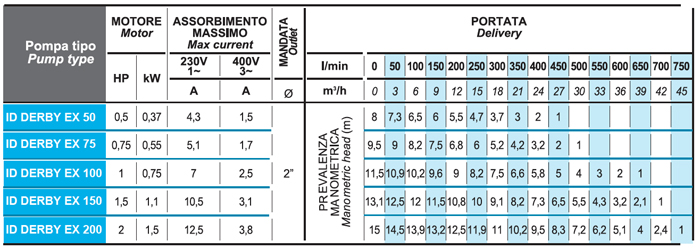

DERBY PERFORMANCE TABLE

Features

  • Open impeller in cast iron to avoid obstruction from mud and other suspended small solids particles.
  • Cast iron parts with galvanic treatment to increase its resistance.
  • Electric pumps produced with 5 m of ID 4G1,5 electric cable included.
  • Temperature of pumped liquid: max +40 °C.
  • Special and balanced mechanical seal, particularly robust and reliable, with high resistance to wear and chemical aggression.

Motor

  • 2 poles asynchronous motor, 50 Hz, 2850 rpm.
  • Class F insulation
  • IP68 protection
  • Working voltage: single-phase 230 V, three-phase 400 V.

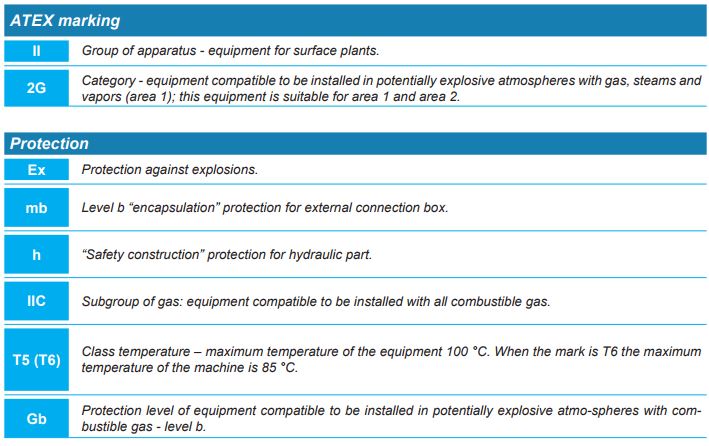

ATEX Marking Information

Technical

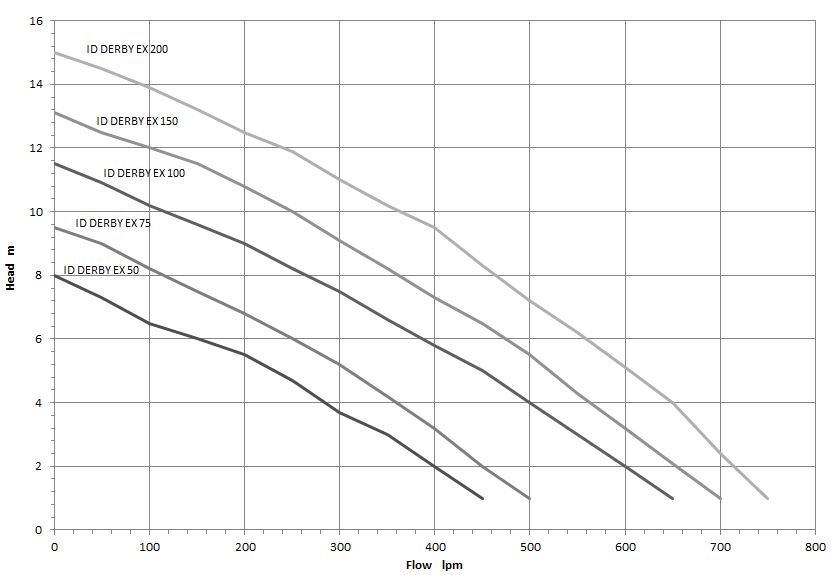

Performance Curves

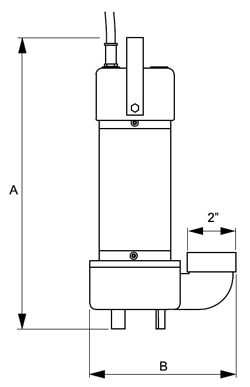

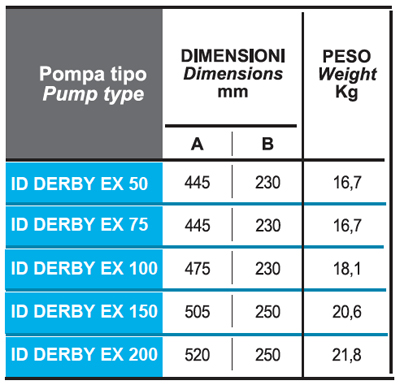

Dimensions and Weights



Downloads & Videos
