VSC 114 - 8" Submersible Pump E-tech Franklin Electric

Our Price: CALL US: +44(0)1473 462046(Exc. 20% VAT)

–+

Pump:

Part Number: VSC114/01
Brand: Franklin Electric E-tech
Pump Size: 8" Pump
Max Flow: 144m3/h
Max Head: 578m
Series: VSC 114

E-Tech VSC114 Series 8" Submersible Well Pumps

Max Flow 144m3/h Max Head 578m

NOTE: Motors are sold separately, please see our range of motors here.

Information

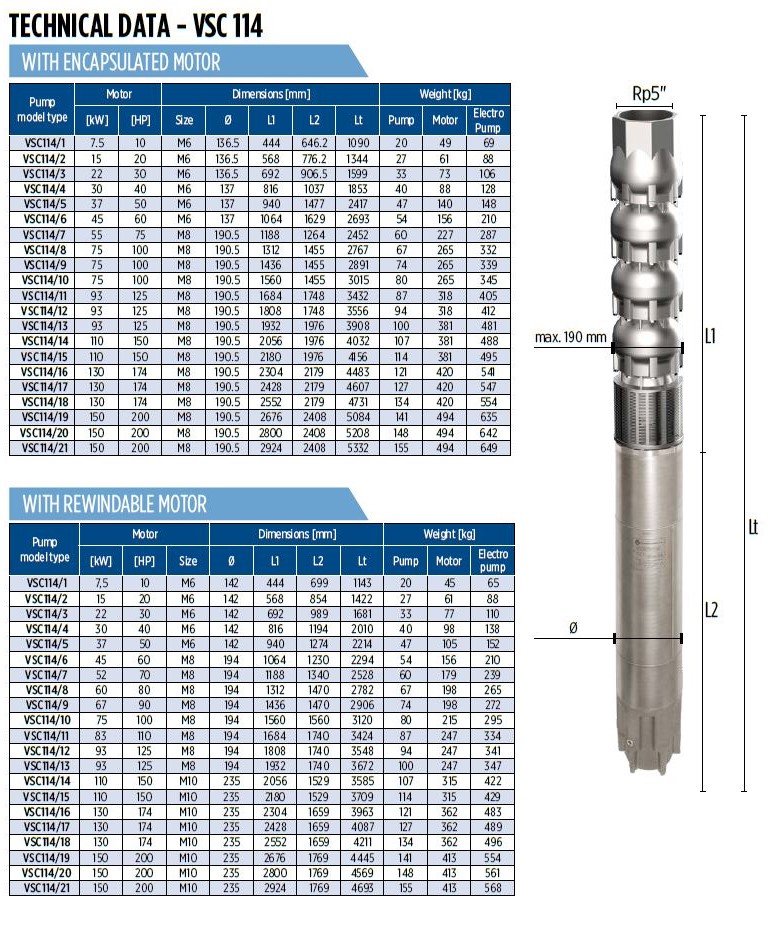

Technical
Downloads
ENQUIRIES

Features

8": VSC 144 - 132 - 156
Cast Stainless Steel impellers and diffusers for high corrosion and abrasion resistance
Robust, compact and reliable design
Built-in check valve to protect the pump against water hammer
The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pumping systems more cost effective

Specification

Flow:
8": up to 144 m³/h at 50 Hz
Head:
8": up to 578 m at 50 Hz
Maximum allowable amount of sand: 100 g/m³
Water temperature: from -5 °C to +60 °C
Rotation: counter clockwise when looking into the discharge
Operation in vertical or horizontal position
The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B

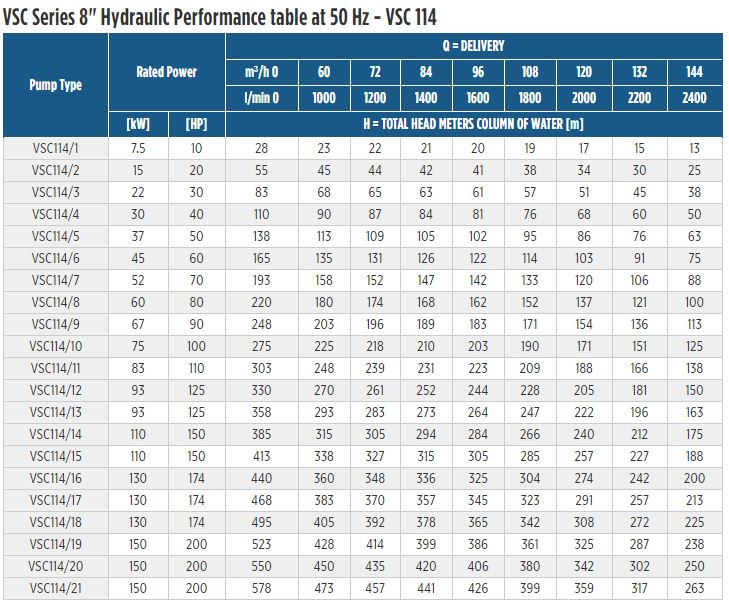

Performance Table

Options

YΔ version with second cable guard
316 SS & Duplex version
Discharge:
8": Rp5"
10": counter flange (Rp6" as of Q4/2018)
10" counter flange (order no. 14262101)

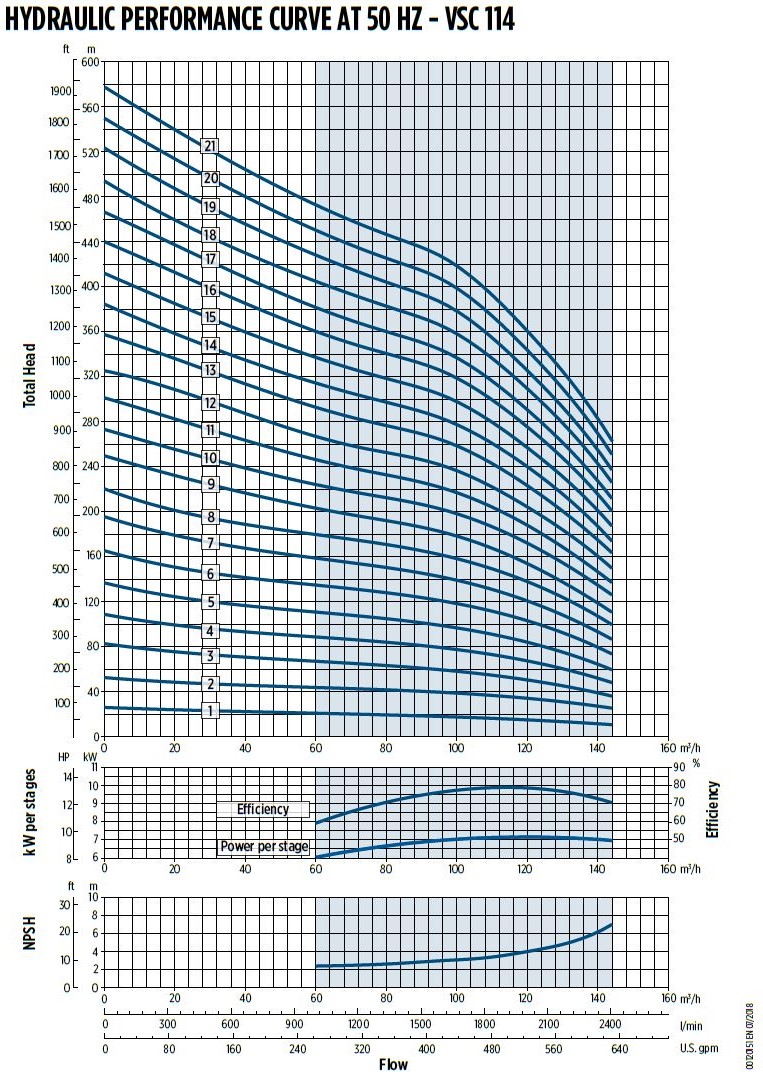

Other flows

Product Sheet

Click here to download product sheet
