VSC 156 - 8" Submersible Pump E-tech Franklin Electric

VSC 156 - 8'' Submersible Pump E-tech Franklin Electric
  Zoom
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+


Part Number:  VSC156/1
Brand:  Franklin Electric E-tech
Pump Size  8" Pump
Series Max Flow  192m3/h
Series Max Head  500m
Series  VSC 156

Franklin Electric E-tech


E-Tech VSC156 Series 8" Submersible Well Pumps

Max Flow 192m3/h Max Head 500m

NOTE: Motors are sold separately, please see our range of motors here.

Features

  • 8": VSC 144 - 132 - 156
  • Cast Stainless Steel impellers and diffusers for high corrosion and abrasion resistance
  • Robust, compact and reliable design
  • Built-in check valve to protect the pump against water hammer
  • The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pumping systems more cost effective

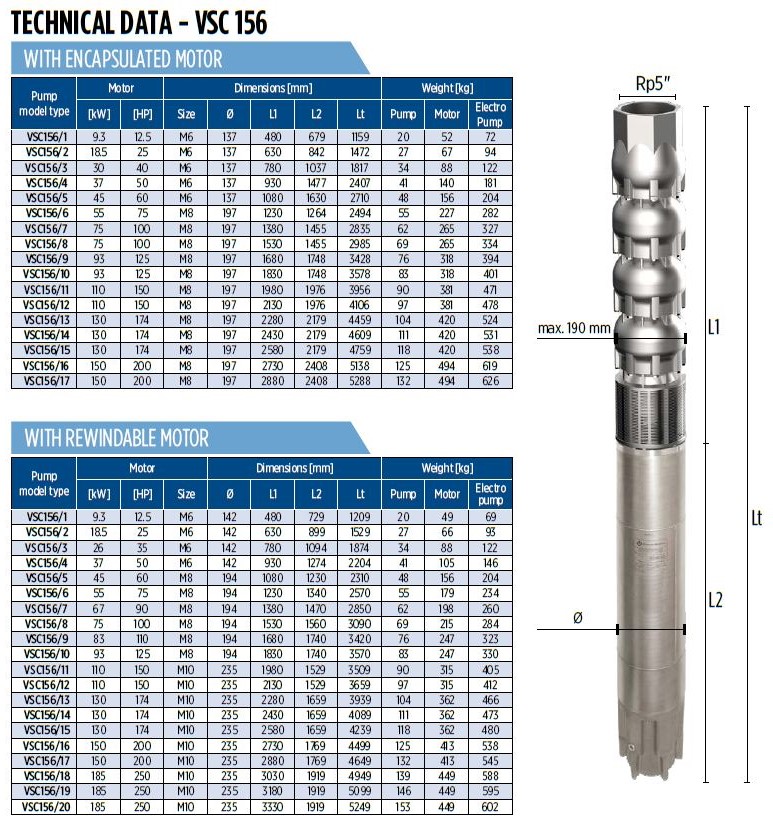

Specification

  • Flow:
  • 8": up to 192 m³/h at 50 Hz
  • Head:
  • 8": up to 500 m at 50 Hz
  • Maximum allowable amount of sand: 100 g/m³
  • Water temperature: from -5 °C to +60 °C
  • Rotation: counter clockwise when looking into the discharge
  • Operation in vertical or horizontal position
  • The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B

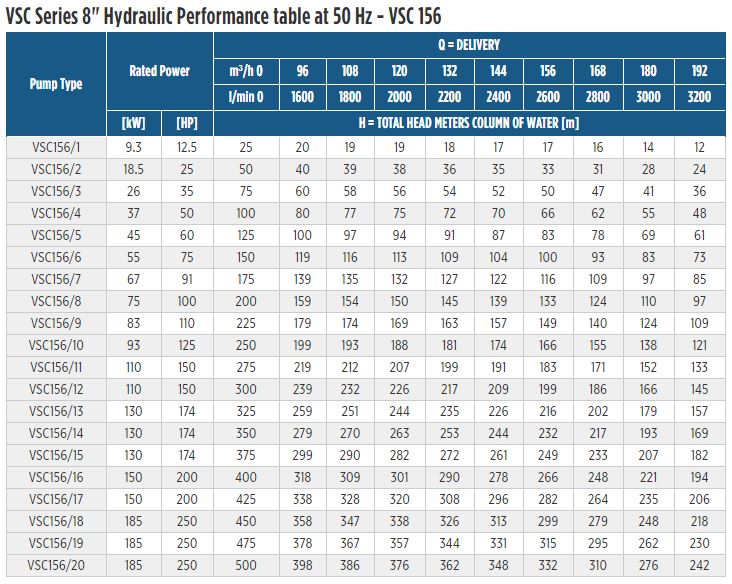

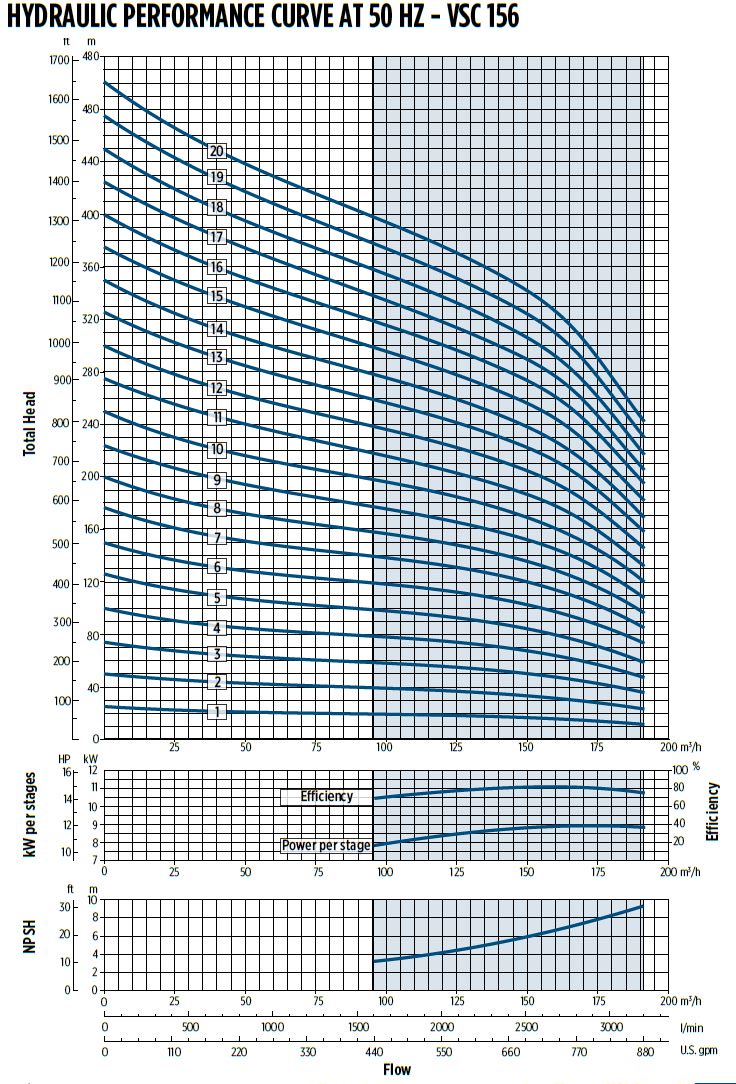

Performance Table

Options

  • YΔ version with second cable guard
  • 316 SS & Duplex version
  • Discharge:
  • 8": Rp5"
  • 10": counter flange (Rp6" as of Q4/2018)
  • 10" counter flange (order no. 14262101)
  • Other flows


Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
