VSC 264 - 10" Submersible Pump E-tech Franklin Electric

Our Price: CALL US: +44(0)1473 462046(Exc. 20% VAT)

–+

Pump:

Part Number: VSC 264/2
Brand: Franklin Electric E-tech
Pump Size: 10" Pump
Max Flow: 312m3/h
Max Head: 576m
Series: VSC 264

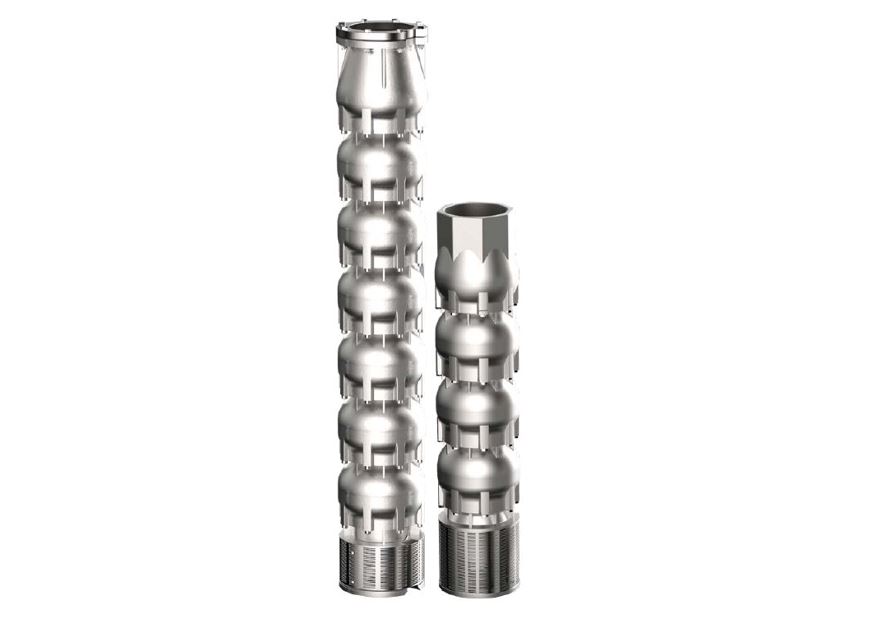

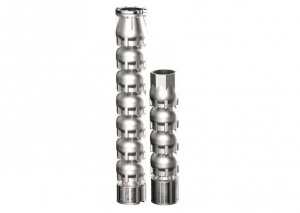

E-Tech VSC264 Series 10" Submersible Well Pumps

Max Flow 312m3/h Max Head 576m

NOTE: Motors are sold separately, please see our range of motors here.

Information

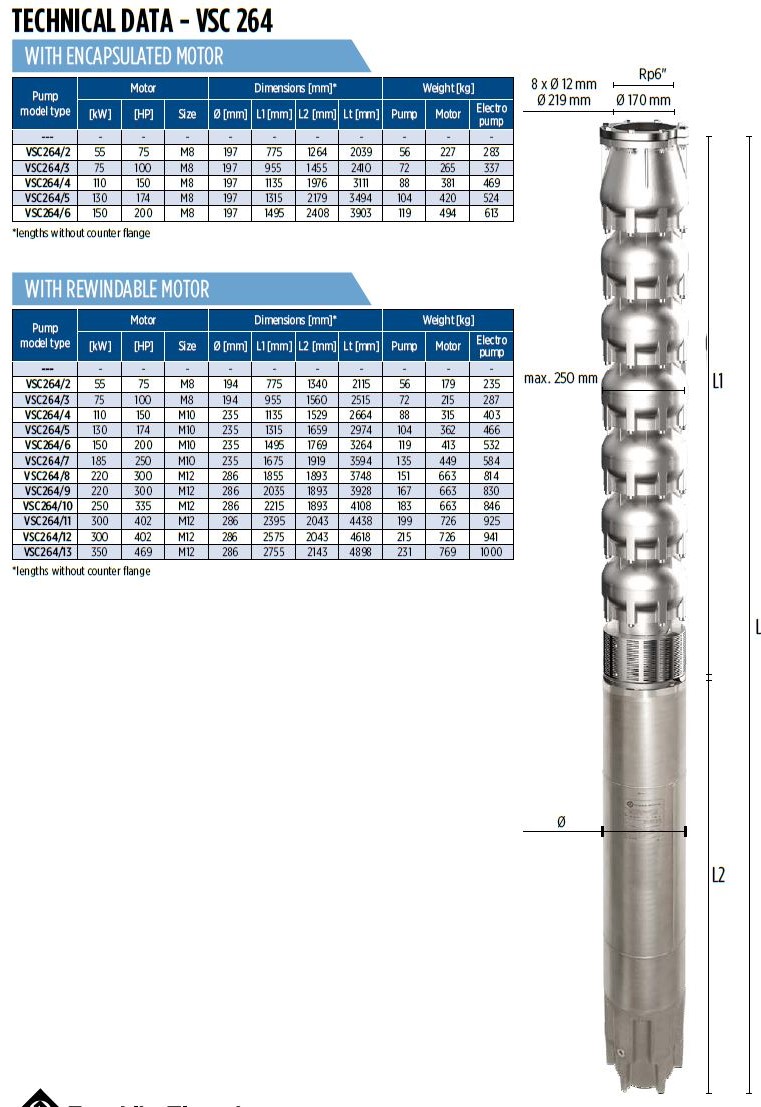

Technical
Downloads
ENQUIRIES

Features

10": VSC 204 - 264 - 304
Cast Stainless Steel impellers and diffusers for high corrosion and abrasion resistance
Robust, compact and reliable design
Built-in check valve to protect the pump against water hammer
The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pumping systems more cost effective

Specification

Flow:
10": up to 312 m³/h at 50 Hz
Head:
10": up to 576 m at 50 Hz
Maximum allowable amount of sand: 100 g/m³
Water temperature: from -5 °C to +60 °C
Rotation: counter clockwise when looking into the discharge
Operation in vertical or horizontal position
The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B

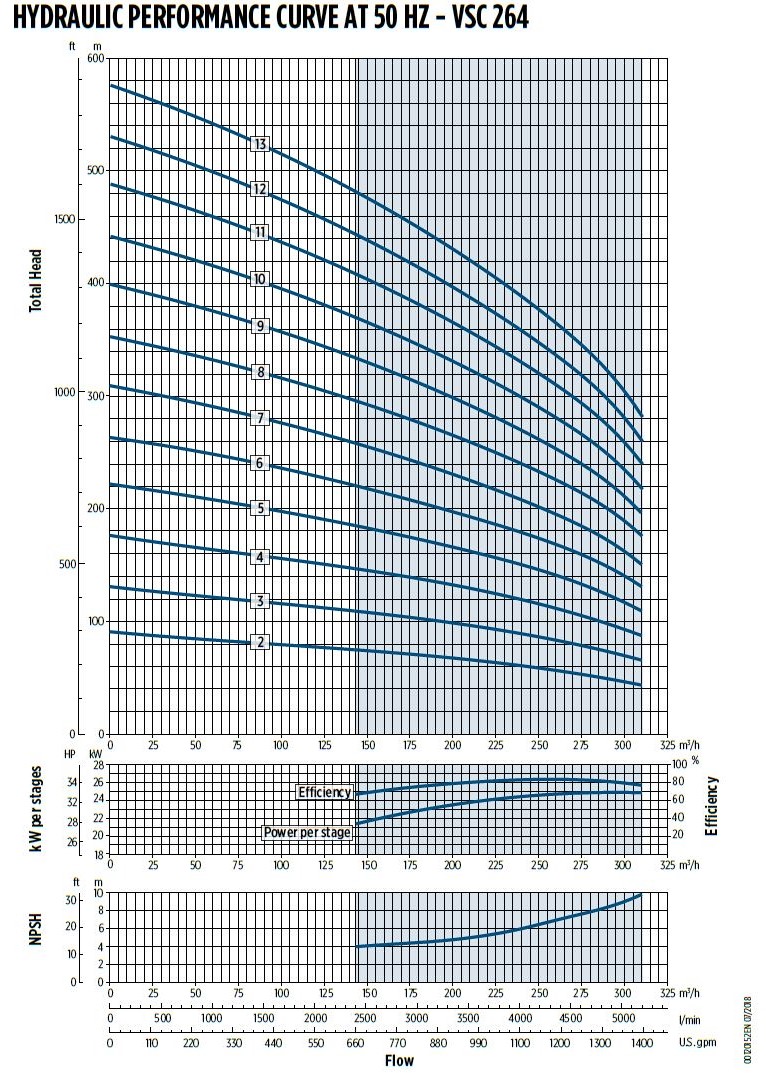

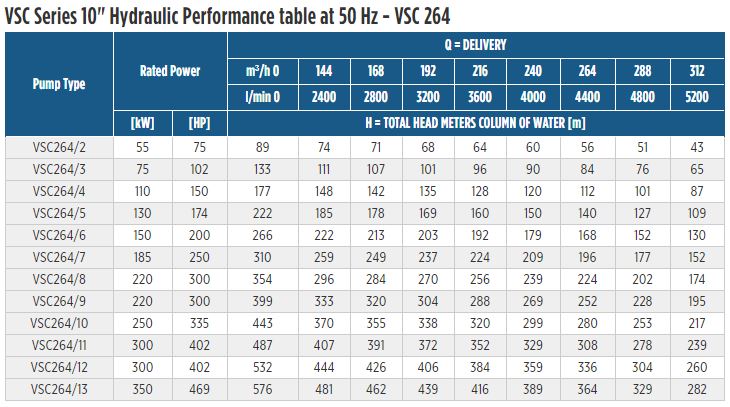

Performance Table

Options

YΔ version with second cable guard
316 SS & Duplex version
Discharge:
8": Rp5"
10": counter flange (Rp6" as of Q4/2018)
10" counter flange (order no. 14262101)
Other flows

Product Sheet

Click here to download product sheet
