VSC 304 - 10" Submersible Pump E-tech Franklin Electric

CALL US: +44(0)1473 462046
Part Number
VSC304/2
Brand
Franklin Electric E-tech
Pump Size
10" Pump
Series Max Flow
348m3/h
Series Max Head
540m
Series
VSC 304
+

E-Tech VSC304 Series 10" Submersible Well Pumps

Max Flow 348m3/h Max Head 540m

NOTE: Motors are sold separately, please see our range of motors here.

Franklin Electric E-tech
Information

Features

  • 10": VSC 204 - 264 - 304
  • Cast Stainless Steel impellers and diffusers for high corrosion and abrasion resistance
  • Robust, compact and reliable design
  • Built-in check valve to protect the pump against water hammer
  • The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pumping systems more cost effective

Specification

  • Flow:
  • 10": up to 348 m³/h at 50 Hz
  • Head:
  • 10": up to 540 m at 50 Hz
  • Maximum allowable amount of sand: 100 g/m³
  • Water temperature: from -5 °C to +60 °C
  • Rotation: counter clockwise when looking into the discharge
  • Operation in vertical or horizontal position
  • The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B

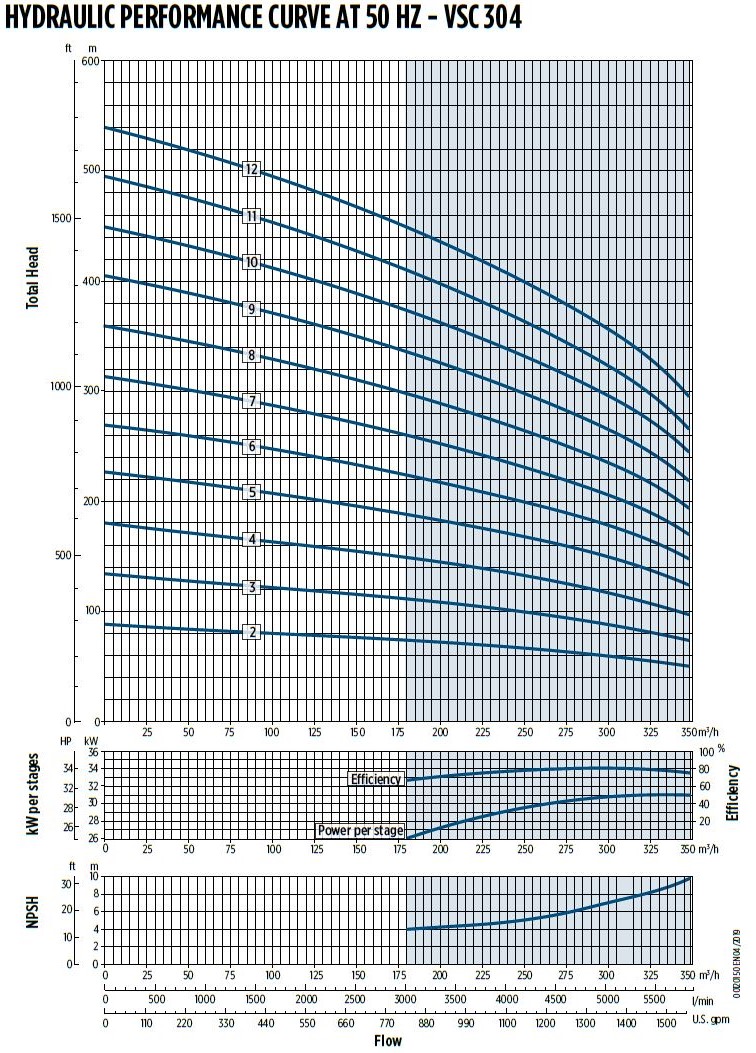

Performance Table

Options

  • YΔ version with second cable guard
  • 316 SS & Duplex version
  • Discharge:
  • 8": Rp5"
  • 10": counter flange (Rp6" as of Q4/2018)
  • 10" counter flange (order no. 14262101)
  • Other flows

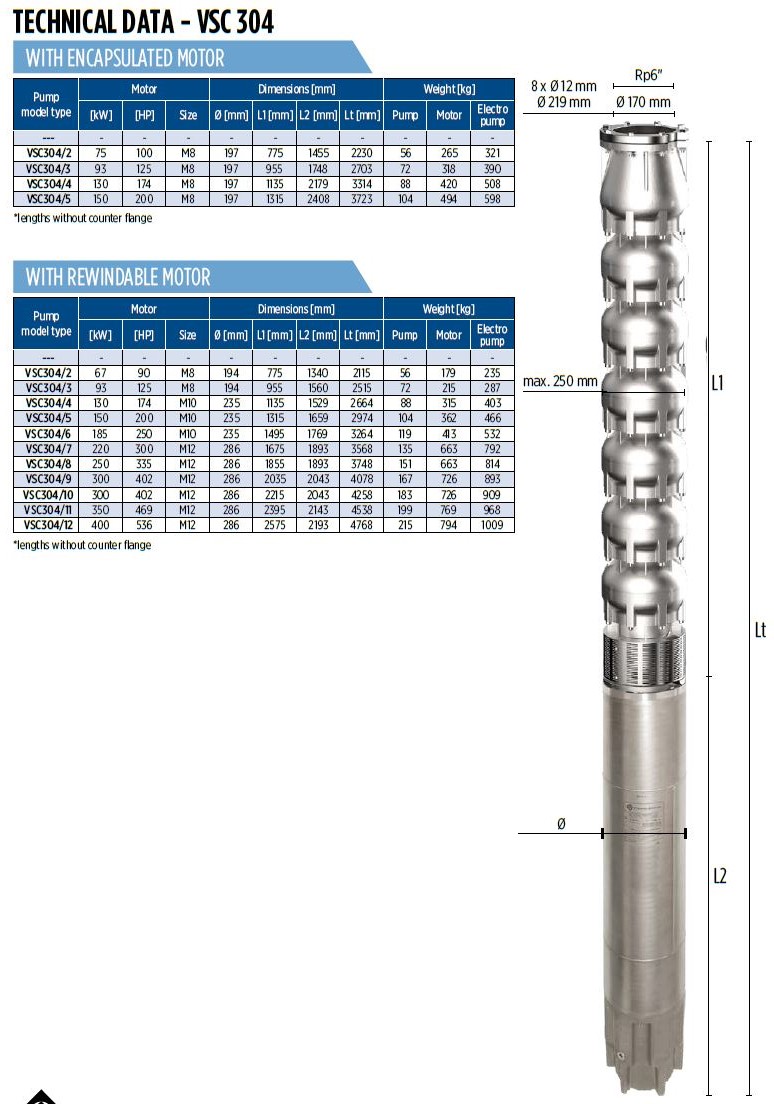

Technical
