VSI 134 8" Submersible Pump E-tech Franklin Electric

Our Price: CALL US: +44(0)1473 462046(Exc. 20% VAT)

–+

Pump:

Part Number: VSI134/01
Brand: Franklin Electric E-tech
Pump Size: 8" Pump
Series Max Flow: 175m3/h
Series Max Head: 435m
Series: VSI 134

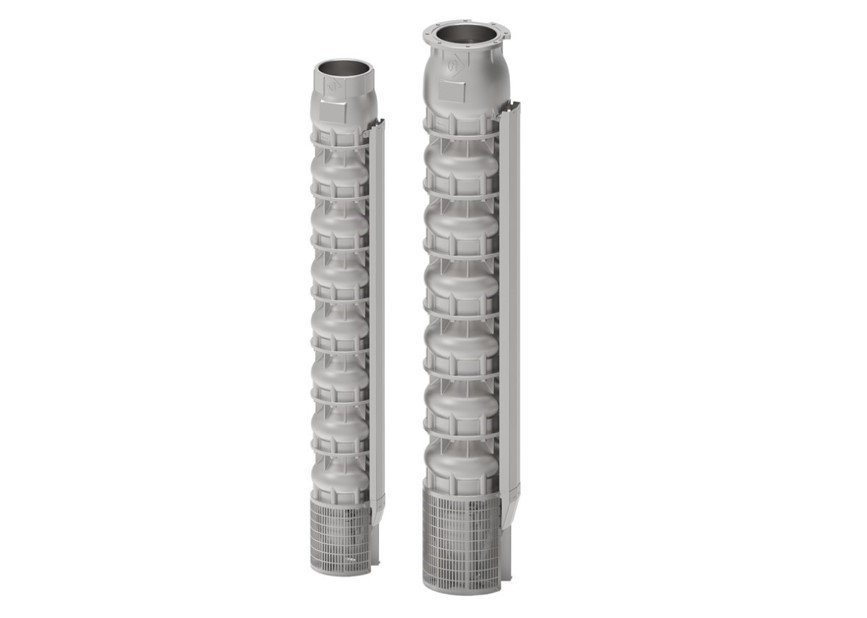

E-Tech VSI134 Series 8" Submersible Well Pumps

Max Flow 175m3/h Max Head 435m

NOTE: Motors are sold separately, please see our range of motors here.

Information
Technical
Downloads
ENQUIRIES

APPLICATIONS

Municipal water works
Drainage and dewatering
General industry
Agriculture, Irrigation
Mining industry
Offshore

HIGH EFFICIENCY AND CORROSION RESISTANCE

High efficiency (up to 83,5 %)
Diffusers and impellers made of investment casting stainless steel
Balanced impellers
Spring loaded, robust design check valve with two bearing bushings and single piece disk
Vesconite Hilube® top bearing bush (closed on top)
PTFE+Graphite up-thrust bearing
Shrink fit coupling
Suitable to pump drinking water

GENERAL FEATURES

⁽¹⁾ Depends on the selected model.

⁽²⁾ Referred to pump. For electricpump see the data table of motor.

“-” = not available

= available

Product Sheet

Click here to download product sheet
