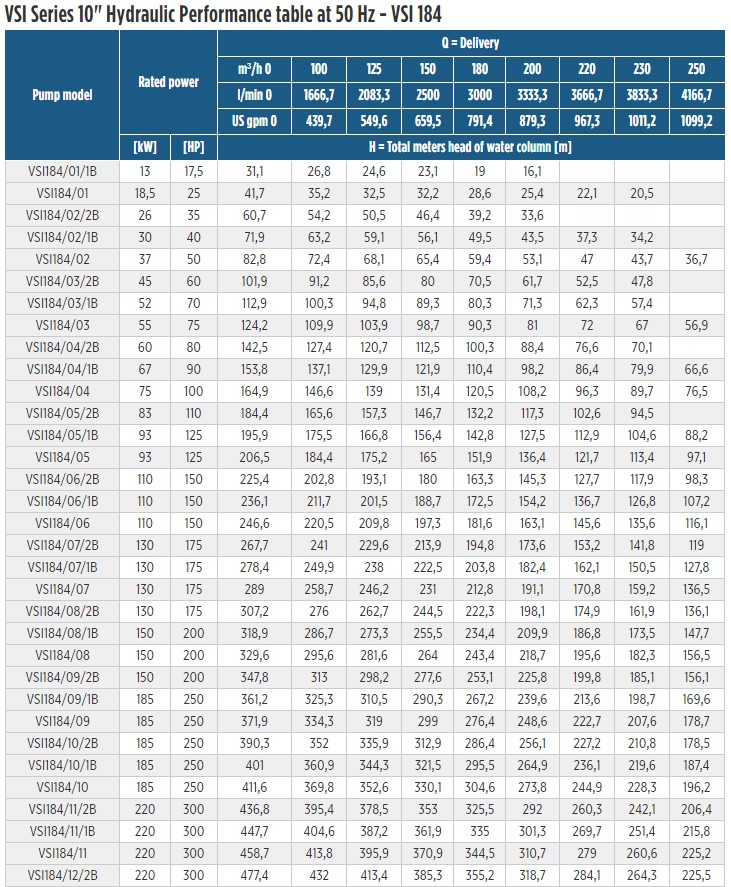

VSI 184 10" Submersible Pump E-tech Franklin Electric

Unit Alarm 1 Control Panel device.


MDPE Male Adapter for MDPE pipe comprising an acetal grip ring and Nitrile rubber O ring.

Sizes from 16mm - 1/2" to 110mm - 4"


Single phase input & Single phase output 1x230V±10%

• Max. motor-pump power  1.1kW
• Max. output current 9A
• Output frequency from 0 to 55 Hz
• Input frequency from 50 to 60 Hz
• Pressure measure range from 0 to 10 bar

• Franklin Electric
• 3 phase motor range: 4 – 7.5kW
• 4" NEMA flange
• Degree of protection: IP68
• Rated ambient temperature: 30°C
• Voltage tolerance 50Hz from nominal: -10% / +6%
• Voltage tolerance 60Hz from nominal: ±10%
• Protection requirements: EN 61947-4-1

• Frankin Electric
• 3 phase motor range: 0,55 – 3kW
• 4" NEMA flange
• Degree of protection: IP68
• Rated ambient temperature: 30°C
• Voltage tolerance 50Hz from nominal: -10% / +6%
• Voltage tolerance 60Hz from nominal: ±10%
• Protection requirements: EN 61947-4-1

• Franklin Electric
• Single phase
• 0.25 - 2.2 kW
• Rotation: CCW facing shaft end
• ​Degree of protection: IP 68
• Rated Ambient temp.: 30^oC
• Starts / h: max. 2
• Voltage tolerance: 50Hz -+6%/-10% UN
