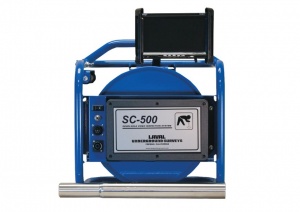

SC-500 Downhole Portable Camera System

SC-500 Downhole Portable Camera System
 SC-500 Downhole Portable Camera SystemSC-500 Downhole Portable Camera System
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

Brand:  Laval Underground Surveys
Series:  SC-500
Maximum Depth:  152m (500 feet) Deep
Camera Family:  SC

Laval Underground Surveys

NEW SC-500 Portable camera system for water wells and boreholes from 2" inches (5cm) to 10" inches (25cm) wide and 500 feet (152m) deep.

Key specs (see technical for full specifications);

  • Camera diameter: 1.66" inches (4.22cm) O.D.
  • Monitor: 9" touch screen monitor with built in recording/playback
  • Overall camera length: 1.65" inches (42cm)
  • Total camera weight: 9 Ibs (4.1kg)
  • Pressure rating: Pressure tested and waterproof to 750psi
  • Operating temperature: 0º to 50°C (32° to 122°F)



 The SC-500 is an ultra-light, compact, camera system with the SC-166 water well camera designed for water wells, boreholes, and vertical shafts as small as 2 inches (5 cm) to 10 inches (25 cm) in diameter Additional lighting accessories are available to expand the viewing capabilities.  The winch is manually operated with a collapsible handle to make it completely compact, portable and easily shippable.  The brake lever allows the user to stop the reel at any point for a thorough inspection.

The system comes standard with the winch, control center, monitor, SC-166 Camera, and power cable.  The SC-500 is also compatible with Laval’s R-Cam line of equipment which allows the option to upgrade to an R-Cam System or compliment their existing R-Cam.

NEW SC-500 Portable camera system for water wells and boreholes from 2" inches (5cm) to 10" inches (25cm)

  • Ultra-light, compact and portable

  • Survey water wells, boreholes and Vertical shafts from 2" inches (5cm) to 10" inches (25cm) wide 500 feet (152m) deep.

  • Manually operated winch with collapsible handle

  • 9" touch screen monitor with built in recording/playback

  • Braking system allows 360 degree stopping capability

  • Standard system includes: winch, control center, monitor, camera and power cable

  • Completely compatible with R-CAM products series, easily upgrade the system or compliment an existing R-CAM

  • Full line of SC-350 accessories including depth counter tripod assembly available

SC-350 with Tripod

Note: Tripod does not come as standard.

SC-166 Camera Specifications

  • Camera diameter: 1.66" inches (4.22cm) O.D.
  • Overall camera length: 1.65" inches (42cm)
  • Housing: Stainless steel
  • Lens: BK-7 glass
  • Total camera weight: 9 Ibs (4.1kg)
  • Pressure rating: Pressure tested and waterproof to 750psi
  • Camera resolution: Downhole greater than or equal to 540 TVL (both NTSC and PAL)
  • Operating temperature: 0º to 50°C (32° to 122°F)
  • LED lighting: 18 high intensity, long life, shock proof LEDs

SC-500 Winch Specifications

  • Cable: 500 feet (152 meters) of kevlar reinforced coaxial cable
  • Cable head: detachable Laval quick-connect cable head, pressure rated to 5,000 PSI with built in strain relief
  • Drive: Manual hand crank reel with collapsible handle to maximum portability
  • Power supply: 12VDC power cable, optional 12V battery pack or 120VAC/220VAC adapter
  • Brake: Interlocking, manual brake with actuator lever for 360 degree stopping capability
  • Dimensions: 17" inches high (43cm), 15.5" inches wide (40cm), 15 " inches deep (39cm)
  • Weight: (15kg) without cable
  • Monitor: 9" Monitor with built in recording/playback
  • Depth counter: Encoder ready, on-screen depth display measured in feet and tenths or meters with optional tripod
  • Tripod: (optional) Tripod with telescoping legs extends from 33" inches (84cm) to 48" inches (122cm) with adjustable sheave roller. Optical depth encoder, counter wheel and connecting cable available
  • Video output: RCA composite video output

Note: Specifications subject to change; please confirm when ordering.


Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *

You will receive emails on our latest news, products and services, please see our privacy policy for more information.
 *
Please add the two numbers

INSTRUCTIONS WHEN RETURNING CAMERAS OR SYSTEMS FOR SERVICE / REPAIR

Please read and complete the information below so we can review your returns enquiry.

Please provide as much information about the faults encountered and the events that lead up to them so that our Technician can make the repair evaluation. If no fault description is provided or there is insufficient information then delays may be incurred with the work.

It is important that the fault description is enclosed even if we have been previously informed.

Note: Be sure to save any videos before sending your equipment to Geoquip. Any data may be lost during the service procedure, we are not responsible for any loss of data.

GOODS MUST BE APPROPRIATELY PACKED. ON RECEIPT THEY WOULD BE CHECKED FOR DAMAGE.

Goods from UK

Goods from EU / Overseas

Return collection (if required)

Geoquip can arrange for the collection of the equipment.

A charge in accordance with our standard carriage charges would be added to the repair invoice.


If you send goods from outside the European Union a Proforma
invoice must accompany the goods.

Required information on invoice.

  • Type of instrument
  • Serial number
  • The text “Goods for repair—temporary importation to UK”
  • Suitable value of goods (see below)

The following information should be included on the commercial invoice when any camera components or systems are returned for repair.

Return and Repair to Manufacturer CPC Code - 21 00 004

Commodity code: 90158020

Value for Insurance Purposes Only - Use a value of £20.00 / €20.00 / US$20.00 per item.

Each delivery is charged by fees such as:

  • Terminal fee
  • Customs declaration
  • Transport from the port to Geoquip Service location
  • Forwarder’s administration at cost

Please Note that these ALL FEES incurred will be invoiced at cost
+ 10%


Min 1 HOUR “Troubleshooting & Handling” fee will be charged to all service orders.
Hourly technician fee available on request (Hourly rate subject to change without notice)




Return address: Geoquip Water Solutions Ltd,
Unit 7 Sovereign Centre,
Farthing Road Industrial Estate,
Ipswich, Suffolk,
IP1 5AP, UK
Tel: +44(0)1473 462046



PLEASE COMPLETE ALL THE FIELDS BELOW SO WE HAVE ALL THE RELEVENT INFORMATION TO REVIEW YOUR RETURNS ENQUIRY, THANK YOU.

 *
 *
 *
 *
 *
 *
 *
 *
Approx. Date if possible










Please specify further



 *
Use the serial number located on the camera body


 *
Use the number printed on the control unit
 *
Images or videos of your equipment:
Please attach images or videos if you think this will assist us with your repair (NOTE! If more than one file please send attachments in ZIP folder)
 *
Please add the two numbers
