R-CAM 1000 TLE Level Wind Downhole Camera System

Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

Brand:  Laval Underground Surveys
Series:  R-CAM 1000 TLE
Maximum Depth:  300m (1000 feet) Deep
Camera Family:  TLE

Laval Underground Surveys

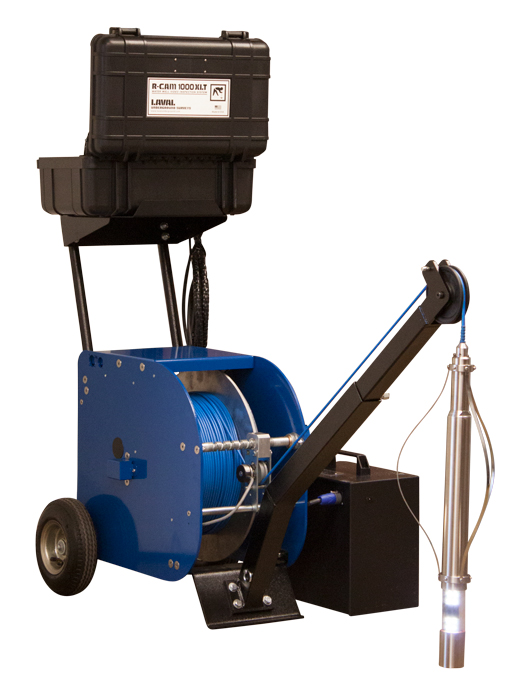

The Laval R-Cam 1000 TLE downhole camera with level wind is a completely portable, self-contained video inspection system that can inspect boreholes up to 300 metres (1,000 ft) deep and 30.5cm (12 ins) in diameter.

Primary specification (see technical for further details):

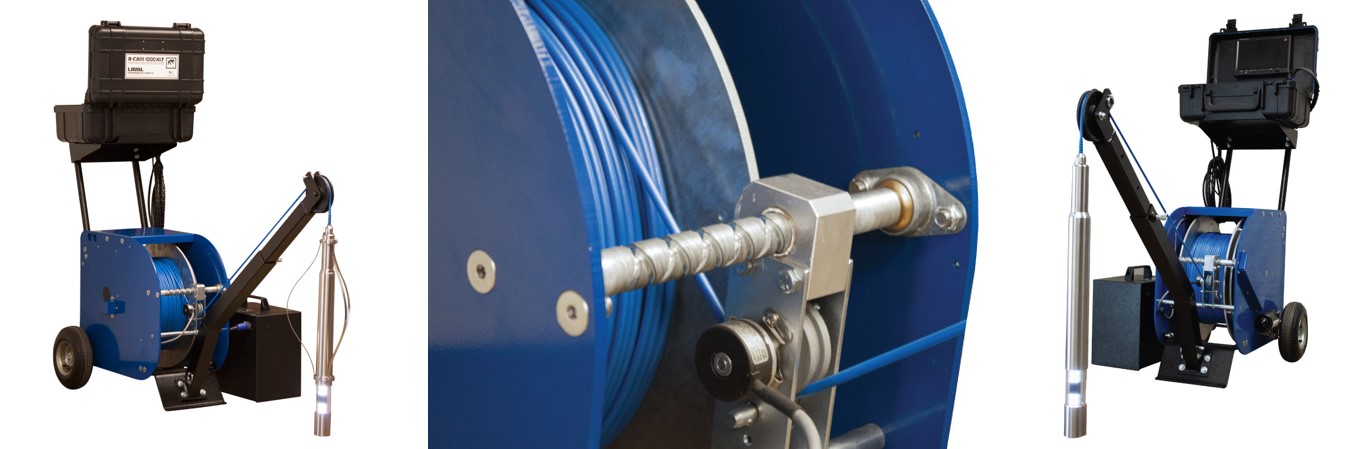

  • Level wind to provide a higher degree of cable management
  • 100 pulse encoder that has been repositioned to vastly increase counter accuracy
  • Dual view wide angle colour camera. Side and down view  with 360⁰ rotation
  • 9" Monitor with built in recording/playback - records footage to 16GB of internal storage and/or expandable USB flash drive
  • Supplied with 16GB and 32GB external usb flash drives
  • Survey footage is exported to natively in a single .mp4 format file
  • Five stages of adjustable lighting
  • Digital on-screen depth counter and control box
  • Powered reel with adjustable speed
  • Portable 12v battery and charger (min 4 hour run time)

Newly designed for 2019, Geoquip Water Solutions is proud to introduce the newest member of the R-CAM product portfolio, the R-CAM TLE Level Wind. Designed to increase the versatility and portability of the R-CAM camera system, the R-CAM TLE Level Wind features a host of features not found on the standard R-CAM XLT winch, starting with the inclusion of a level wind. The R-CAM TLE’s level wind has been designed to provide a higher degree of cable management that allows the operator to focus solely on conducting video surveys. The R-CAM TLE also features a high resolution, 100 pulse encoder that has been repositioned to vastly increase counter accuracy and allow for a variety of in-field setups such as the use of a tripod.

To increase the level of portability of the R-CAM TLE, the extendable boom arm and winch handle can now be completely removed to aid in transporting, mounting, shipping, or storing the system. Additionally, a battery compartment has been added to provide a convenient storage location for the 12-volt battery.

Other features include down and side viewing capability, an on-screen depth counter, 9" DVR monitor, 16GB of internal storage (Supplied with 16GB and 32GB external usb flash drives), 12V DC power supply and a portable battery.

The R-CAM TLE Level Wind is available as an upgrade for both new and existing R-CAM camera systems. The winch comes equipped with either 1,000 feet (304.8 m) or 1,300 feet (396.24 m) of coaxial, Kevlar reinforced cable.

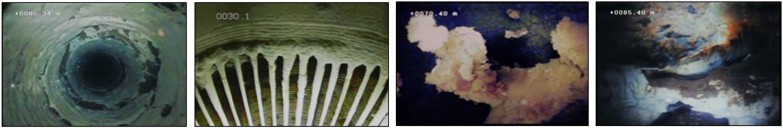

Examples of down and side view video stills, all footage taken from R-CAM 1000 TLE.

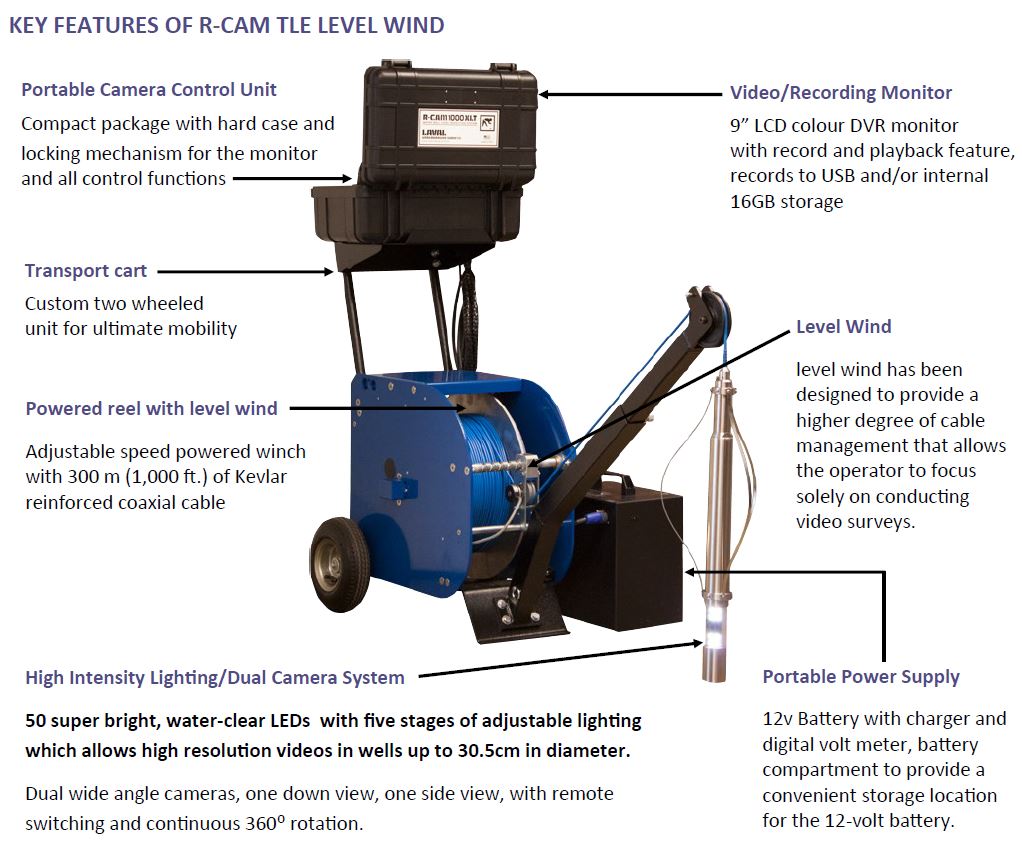

Features of the camera system:

  • Level wind to provide a higher degree of cable management
  • 100 pulse encoder that has been repositioned to vastly increase counter accuracy

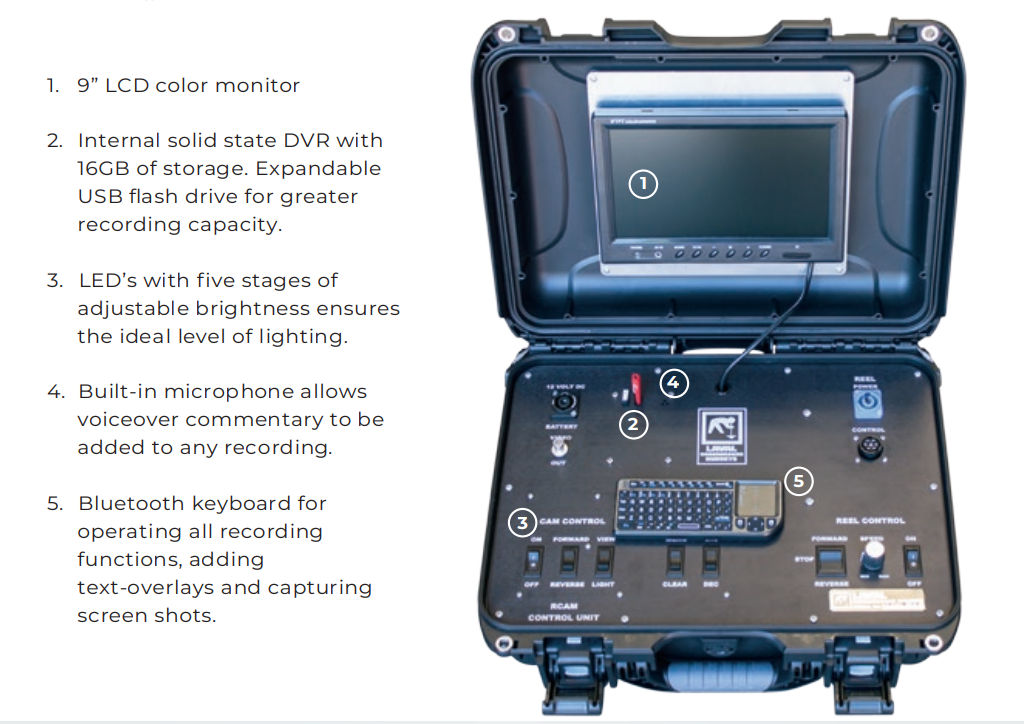

  • State of the art solid state DVR that records survey footage to 16GB internal storage and/or expandable USB flash drive.
  • Mini bluetooth keyboard remote (qwerty)
  • Survey footage is exported natively in a single .mp4 format file
  • DVR recording and playback feature, image capture
  • Add text details at the start of your survey
  • Built in microphone recorder, so you can add voiceover at the touch of a button
  • Five stages of adjustable lighting

Geoquip Water Solutions are the sole European distributors of the Laval R-Cam 1000 TLE downhole camera. We provide a comprehensive technical advice service and a complete after sales care plan.

Ideal for:

  • Periodic inspections to determine existing well conditions and perform preventative maintenance
  • After service inspections to verify cleaning, repairs, track well conditions and ensure compliance
  • Pre-purchase inspections
  • Ground water monitoring to determine quality, mineral conditions, geological strata etc.
  • Locating and retrieving lost tools
  • New construction inspection to display the quality of work and offer customer assurance

Features:

  • Transport: Removable Boom and Handle
  • Counter: 100PPR, High-Resolution Optical Encoder with Dual Pressure Rollers
  • Spooling: Automatic, Gear Driven Level Wind to Evenly Distribute Cable
  • Speed: 9 rpm
  • Motor: 12VDC Gear Motor
  • Drive: Onboard Variable Speed Motor Controller
  • Torque: 53 in lbs.
  • Power Source: 12VDC Battery Pack with Voltmeter and Charger
  • Dimensions: 40” (101.6 cm) Tall, 18” (45.72 cm) Wide, 47” (119.38 cm) Long
  • Weight: 130lbs (58.97 kg)
  • Cable Capacity: 1,000’ (304.8 m) or 1,300’ (396.24 m) Kevlar-Reinforced, Coaxial Cable
  • Cable Head: Detachable Laval Quick-Connect Cable Head, Pressure Rated to 5,000 PSI with Built-in Strain Relief
  • Dual wide angle colour camera, side and downview
  • Digital on screen depth counter
  • 9" Monitor with built in recording/playback feature
  • 18 Super bright Water Clear LED Downview lights
  • 32 Super Bright Water Clear LED Sideview camera
  • Powered reel with adjustable speed
  • Supplied with 16GB and 32GB external usb flash drives
  • 1000ft (300m) Kevlar Reinforced cable (340 kg Breaking strength)
  • Slip ring technology 360’ dual rotation (side facing camera)
  • 2 wheeled trolley for ultimate mobility
  • Portable 12v battery and charger (min 4 hr run time)
  • Crush proof durable & portable control case
  • 90 cm (36 ins) extendable boom for positioning over borehole
  • Camera Centering bands
  • LCD battery Voltage monitor


TECHNICAL CHARACTERISTICS

  • Transport: Removable Boom and Handle
  • Counter: 100PPR, High-Resolution Optical Encoder with Dual Pressure Rollers
  • Spooling: Automatic, Gear Driven Level Wind to Evenly Distribute Cable
  • Speed: 9 rpm
  • Motor: 12VDC Gear Motor
  • Drive: Onboard Variable Speed Motor Controller
  • Torque: 53 in lbs.
  • Power Source: 12VDC Battery Pack with Voltmeter and Charger. Rechargeable by local current (please specify at time of order).
  • Dimensions: 40” (101.6 cm) Tall, 18” (45.72 cm) Wide, 47” (119.38 cm) Long
  • Weight: 130lbs (58.97 kg)
  • Cable Capacity: 1,000’ (304.8 m) or 1,300’ (396.24 m) Kevlar-Reinforced, Coaxial Cable
  • Cable Head: Detachable Laval Quick-Connect Cable Head, Pressure Rated to 5,000 PSI with Built-in Strain Relief
  • Cable: 1,000 feet (304.8 m) Kevlar-reinforced, small diameter coaxial cable. Single conductor electronic technology.
  • Lens: BK-7 glass
  • Recorder: Records onto a 9" Monitor/DVR
  • Records footage to 16GB of internal storage and/or expandable USB flash drive
  • Supplied with 16GB and 32GB external usb flash drives
  • LED Lighting: High intensity, long life, shock proof LED lighting, side view and forward view with 5 adjustable brightness settings.
  • Depth Counter: On-screen depth display measured in feet and tenths, or meters.
  • Monitor: 9-inch LCD color monitor





Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
