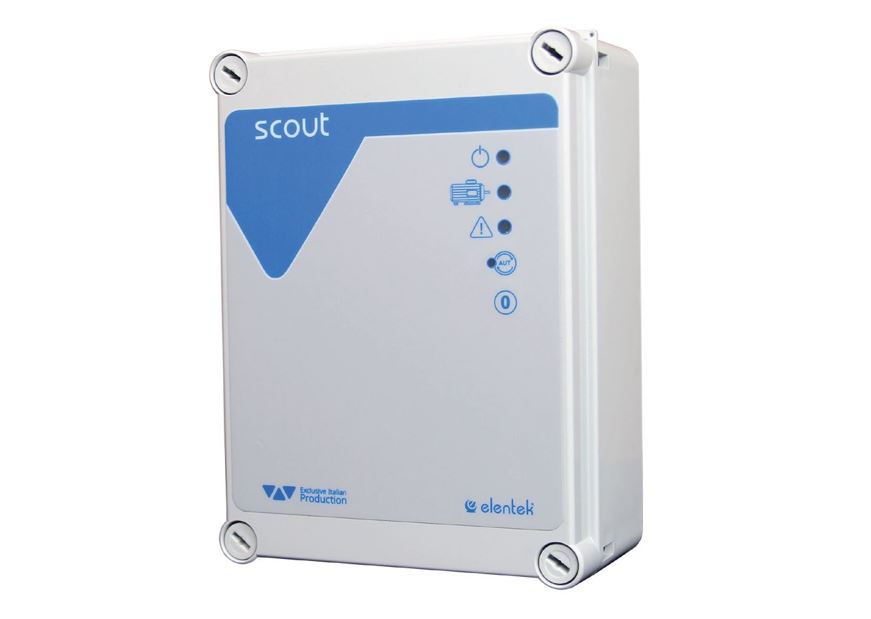

Scout Electronic Control Panel

LEGACY
PRODUCT
Scout Electronic Control Panel
Scout Electronic Control PanelScout Electronic Control PanelScout Electronic Control Panel
Our Price:  £133.00(Exc. 20% VAT)
+


Part Number:  CP1A-BJSCO18-A1N
Brand:  Elentek

Elentek

Scout Electronic Control panel is easy to use, intuitive and it’s a Wireless panel that transforms a standard pumping system into a smart system using your smartphone for remote control via Wi-Fi.

Legacy product

Legacy product

Alternative panels;

Smart EVO 2

Please contact us if you would like to discuss our alternative products.

Legacy product

Alternative panels;

Smart EVO 2

Please contact us if you would like to discuss our alternative products.

Legacy product

Alternative panels;

Smart EVO 2

Please contact us if you would like to discuss our alternative products.

Legacy product

Alternative panels;

Smart EVO 2

Please contact us if you would like to discuss our alternative products.

Alternative panels;

Smart EVO 2

Please contact us if you would like to discuss our alternative products.

Legacy product

Please contact us if you would like to discuss our alternative products.



SCOUT Electronic Control panel is easy to use, intuitive and it’s a Wireless panel that transforms a standard pumping system into a smart system using your smartphone for remote control via Wi-Fi.

SCOUT control panel allows you to interact easily with your system, managing real-time calibrations, alarms, and states.

  • WIRELESS
  • INTUITIVE NAVIGATION
  • DIRECT ACCESS TO THE PUMPING SYSTEM
  • MANAGE UP TO 3 PUMPS SIMULTANEOUSLY
  • CURRENT CONSUMPTION READING
  • CONTROL OF WORKING HOURS AND NUMBER OF INTERVENTIONS
  • CONTROL START/HOUR
  • DRY RUNNING PROTECTION WITH LEVEL PROBES
  • EXCHANGER PUMPS
  • COMMAND BY PRESSURE FLOATS SWITCHES
  • SWITCH ON AND OFF
  • MAXIMUM WiFi RANGE IN FREE AIR 100 METERS

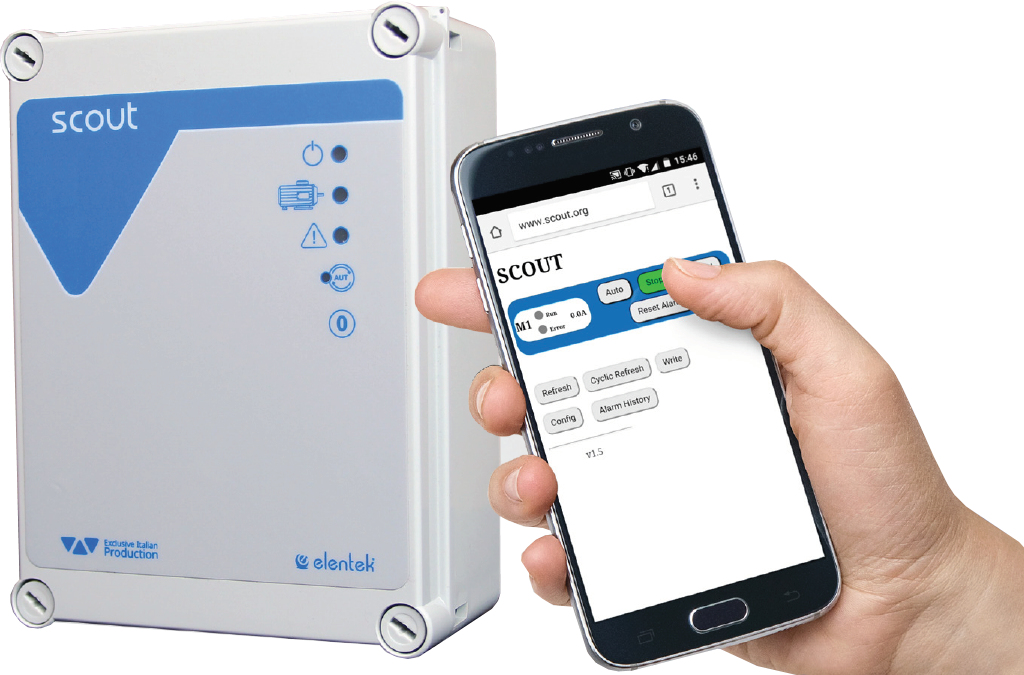

Scout Panel and Phone




Scout Control Panel Technical Table
* SCOUT-Tri available for special order.

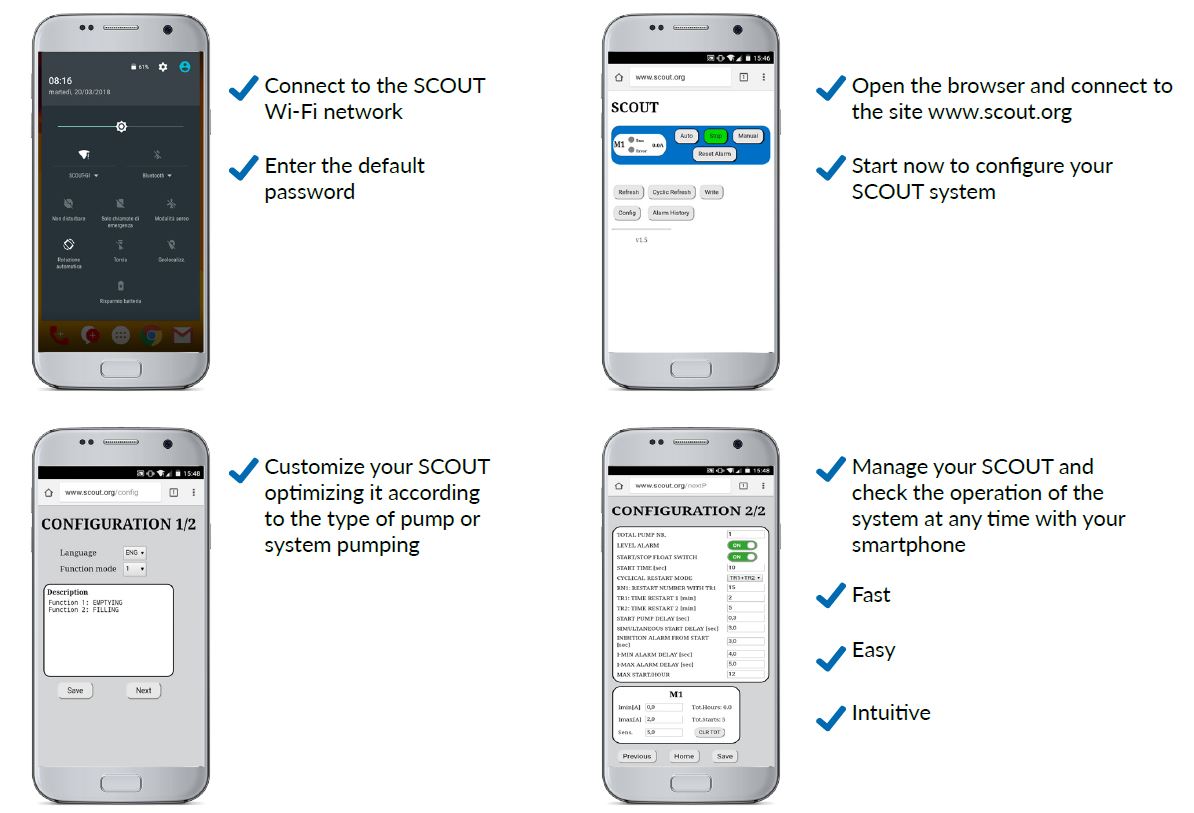

TURN YOUR SMARTPHONE INTO THE SCOUT DISPLAY (NO APP REQUIRED)

Scout Panel and Phone login


  • selection of filling or emptying operation with probes
  • Italian/English language selection
  • control selection from 1 to 3 pumps
  • activation of probes level alarm
  • activation of start/stop float switches function (waste water)
  • pump rotation enablement (only from 2 to 3)
  • selection of delay time for mainboard activation on power mains return
  • activation of cycling restart from minimum current alarm with programmable times
  • Selection of delay time for activation of motors from closure of start contacts
  • selection of delay time for auxiliary motor activation
  • selection of delay time for minimum/maximum current alarm activation from start of the engine
  • maximum current overload electronic control
  • minimum current dry running electronic control
  • visualization of motor absorption (current)
  • visualization of running hours and number of starts of the motor (resettable)

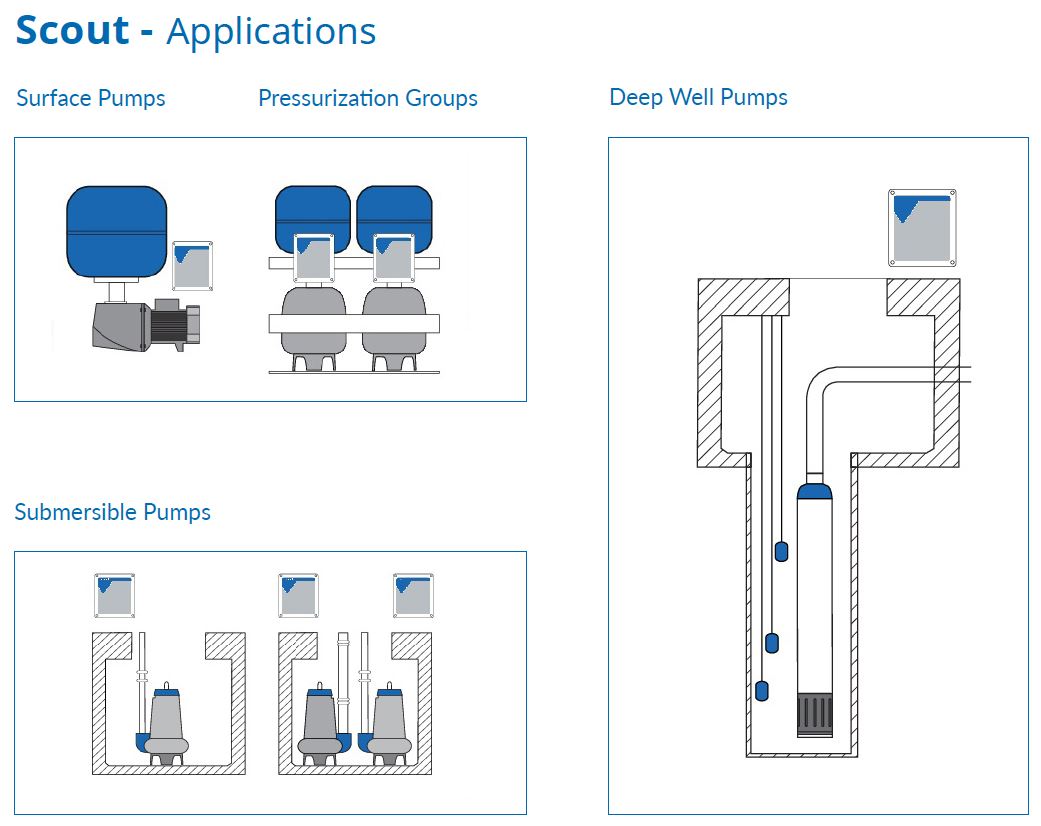

Scout Panel Applications

Technical features

  • Scout-Mono power supply 100-240Vac 50/60Hz
  • Scout-Tri power supply 310-450Vac 50/60Hz
  • Normally open input for start
  • Inputs for 3 single-pole level probes (COM-MIN-MAX)
  • Pushbuttons for selecting operation AUTOMATIC -0- MANUAL
  • Alarm for motherboard overheating
  • Minimum and maximum current alarm
  • Level alarm from probes contacts
  • Alarm maximum no. starting/hour exceeded
  • Motherboard and motor protection with fuses
  • Automatic reset for minimum current alarm
  • Motherboard and motor protection with fuses
  • Cumulative alarm output live (12Vdc / 100mA)
  • Provision for run capacitors (not included)
  • Box in ABS, IP55 (box dimensions 195x145x80 mm)
  • Ambient temperature: -5/+40°C
  • Relative humidity 50% at 40°C (not condensed)
  • Settings via Wi-Fi connection

Setting via Wi-Fi Connections

  • selection of filling or emptying operation with probes
  • Italian/English language selection
  • control selection from 1 to 3 pumps
  • activation of probes level alarm
  • activation of start/stop float switches function(waste water)
  • pump rotation enablement (only from 2 to 3)
  • selection of delay time for mainboard activation on power main return
  • activation of cycling restart from minimum current alarm with programmable times
  • selection of delay time for activation of motors from closure of start contacts
  • selection of delay time for auxiliary motor activation
  • selection of delay time for minimum/maximum current alarm
  • activation from start of the engine
  • maximum current overload electronic control
  • minimum current dry running electronic control
  • visualization of motor absorption (current)
  • visualization of running hours and number of starts of the motor (resettable)
