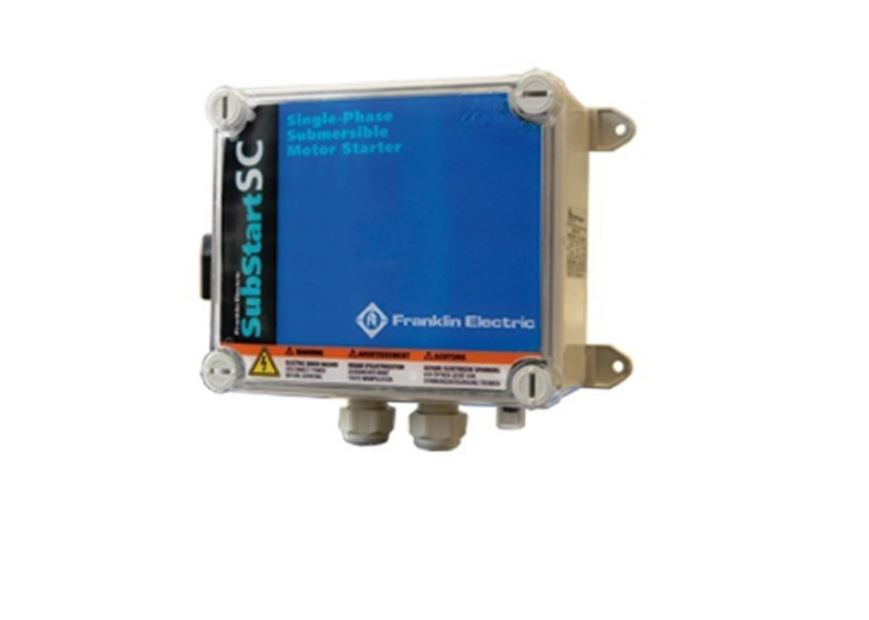

SubstartSC Single Phase Motor Starter Franklin Electric E-tech

Franklin Electric E-tech SubStartSC® covers all PSC motors from 0.25 kW to 2.2 kW for all voltages. Ergonomic design, attention to detail and unique features make the SubStartSC® motor starter range your first choice when considering submersible motor protection. In conjunction with Franklin Electric submersible motors you now have a tangible water system advantage resulting in ease of installation and reliable protection.

Specifications:

• Attention to detail – every aspect engineered for the application
• The complete package – the device is 100 % compatible with the motor characteristics
• All in one name – reliability backed by the leader in submersible motors
• Design
• Mounting: easy wall mounting without destroying the protection rating of the enclosure.
• Wiring: sufficient space is provided for ease of wiring.
• Enclosure
• Protection: IP54
• Material: PVC / PC
• Components
• ON/OFF switch: illuminated integral ON/OFF switch for ease of power
• Circuit breaker: thermal circuit breaker for protection of the motor.
• Capacitor: high quality motor run capacitor for long life
• Terminal board: terminal board suitable for ease of reliable connections
• Cable glands: cable glands to ensure IP54 rating

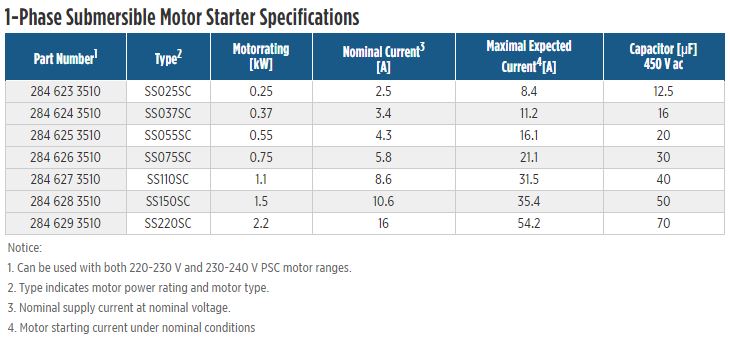

Technical Specifications:

• Mechanical
• Protection level: IP54
• External dimensions: 168 x 142 x 8 5 mm
• Weight: 0.6 - 1.0 kg
• Mounting: wall mounting (mounting hardware provided)
• Temperature: -5 °C - +40 °C
• Humidity: 50 % at 55 °C (without condensation)
• Electrical
• Voltage: 220 - 240 V; - 6 / +10 %; 50 Hz 1-phase
• Current: 2.2 - 16 A
• Power: 0.25 - 2.2 kW
• Standards
• IEC 60439-1

Specifications:

• Attention to detail – every aspect engineered for the application
• The complete package – the device is 100 % compatible with the motor characteristics
• All in one name – reliability backed by the leader in submersible motors
• Design
• Mounting: easy wall mounting without destroying the protection rating of the enclosure.
• Wiring: sufficient space is provided for ease of wiring.
• Enclosure
• Protection: IP54
• Material: PVC / PC
• Components
• ON/OFF switch: illuminated integral ON/OFF switch for ease of power
• Circuit breaker: thermal circuit breaker for protection of the motor.
• Capacitor: high quality motor run capacitor for long life
• Terminal board: terminal board suitable for ease of reliable connections
• Cable glands: cable glands to ensure IP54 rating

Technical Specifications:

• Mechanical
• Protection level: IP54
• External dimensions: 168 x 142 x 8 5 mm
• Weight: 0.6 - 1.0 kg
• Mounting: wall mounting (mounting hardware provided)
• Temperature: -5 °C - +40 °C
• Humidity: 50 % at 55 °C (without condensation)
• Electrical
• Voltage: 220 - 240 V; - 6 / +10 %; 50 Hz 1-phase
• Current: 2.2 - 16 A
• Power: 0.25 - 2.2 kW
• Standards
• IEC 60439-1
