Lakos Sand Separator - ILB/ILS heavy Duty/High Pressure System

CALL US: +44(0)1473 462046
Brand
Lakos
+
Information

Lakos Sand Separator ILB/ILS is ideally suited for removing sand, grit and other fine solids from heavy duty systems. Able to withstand the toughest environmental conditions it offers high pressure capability, high flow rates and high temperature resistance. Sand Separator removes 98% of particles 200 mesh (74 microns) and larger (see maximum particle sizes). With heavier solids (metal chips, lead, etc.) expect even better results. Its unique centrifugal style of filtration is not only efficient, but also trouble-free.

Available in;

  • Carbon Steel (ILB)
  • Stainless Steel (ILS)

General Characteristics

  • No moving parts to wear out - eliminates mechanical failures and replacement parts
  • No screens, cartridges, cones or filter elements to clean or replace
  • No back flushing - minimizes water/liquid loss
  • No downtime requirements - all units designed to operate continuously with no shutdowns
  • Available in two standard materials of construction - carbon steel or stainless steel
  • BSP thread

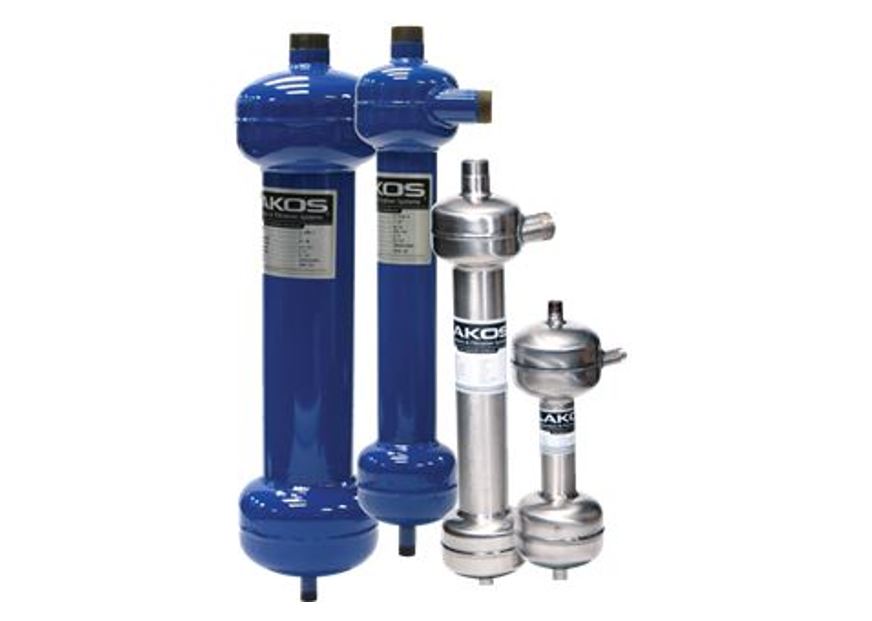

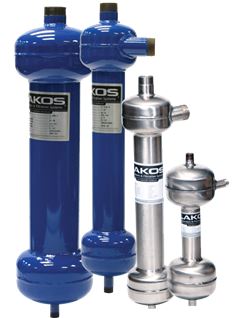

  Lakos Sand Separator ILB/ILS
Technical
  • Maximum pressure rating: 150 psi (10.3 bar)
  • Pressure loss range: 5-12 psi (0.3 - 0.8 bar)
  • Purge size (all models): ¾" N.P.T., male
  • Maximum particle size;
  • ILB/ILS-0037 - ¼" (6.35mm)
  • ILB/ILS-0050 - ¼" (6.35mm)
  • ILB/ILS-0075 - ¼" (6.35mm)
  • ILB/ILS-0100 - ¼" (6.35mm)
  • All other models: 3/8" (9.25mm)

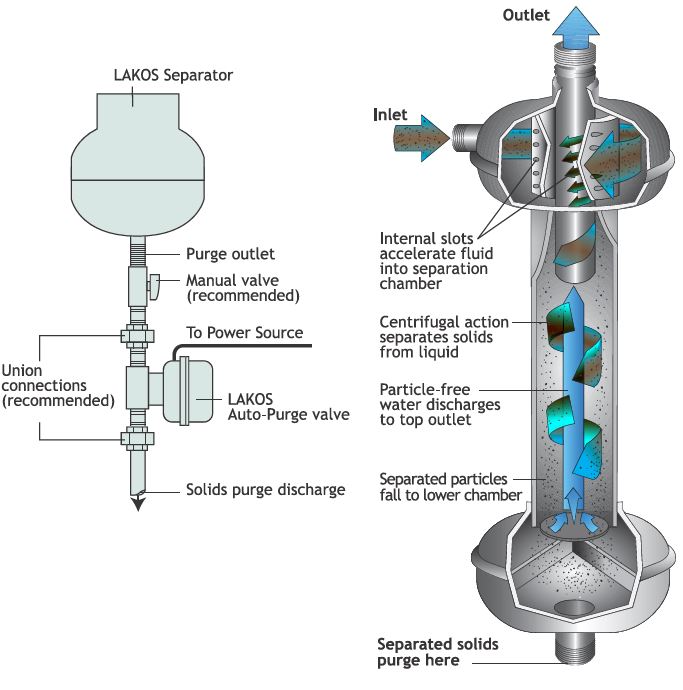

ILB ILS diagram
